Eaton 1995V CWD Quiette Toggle Switch 120/277 V

EATON
Brand: EATON
SKU: 1995V
Availability: In Stock

Ships same day if ordered by 12 pm
$34.80
$34.80
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

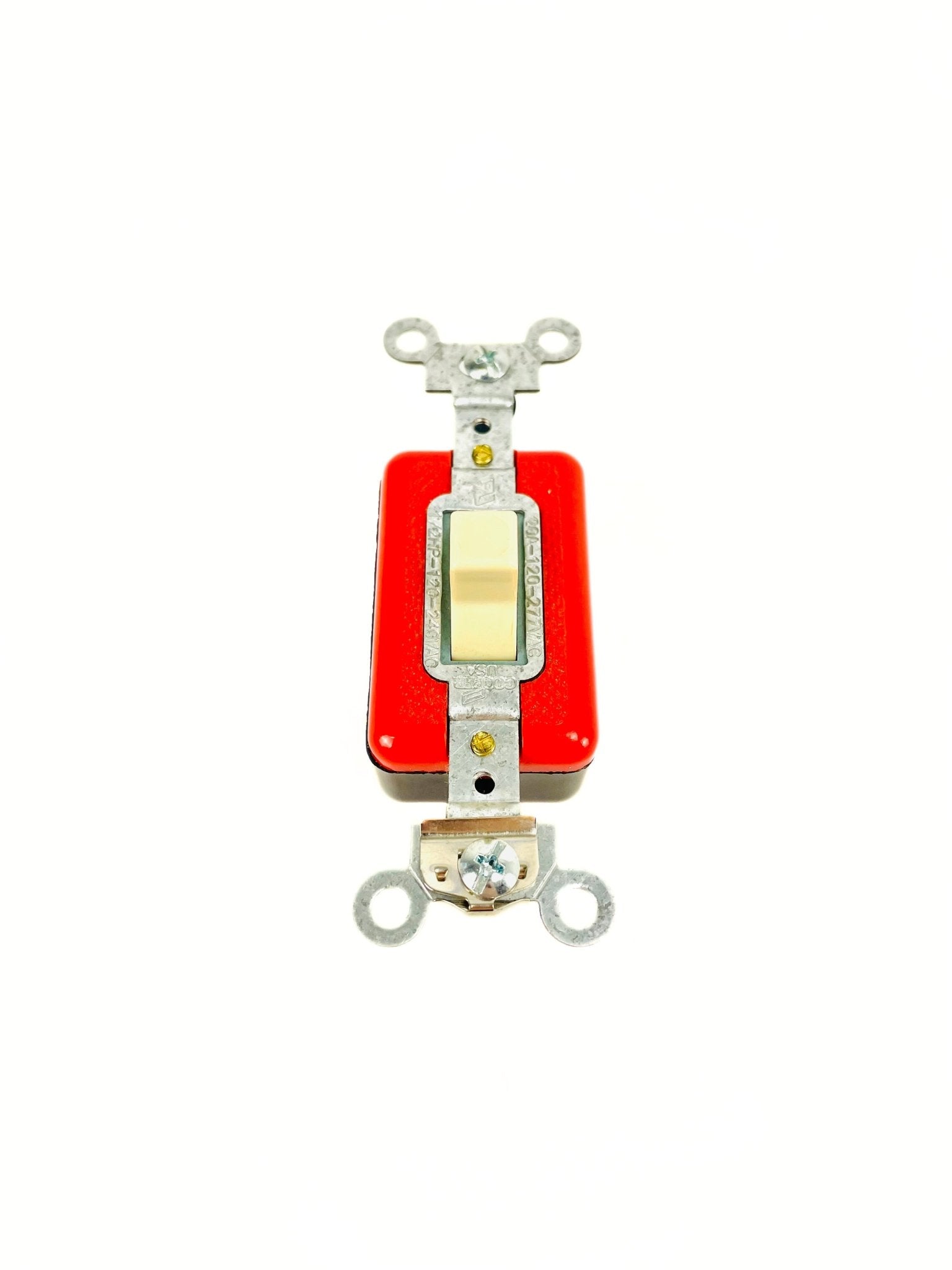

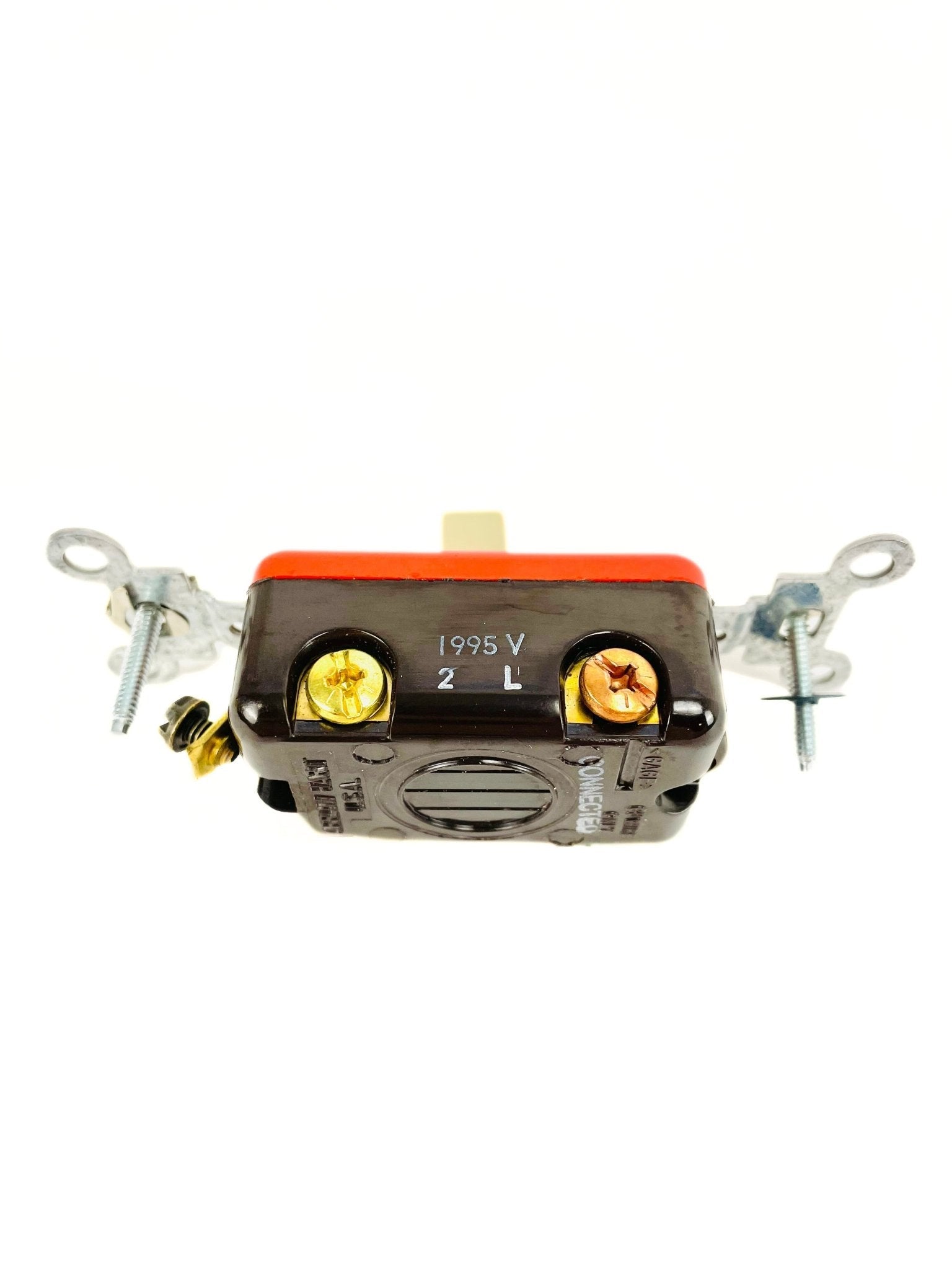

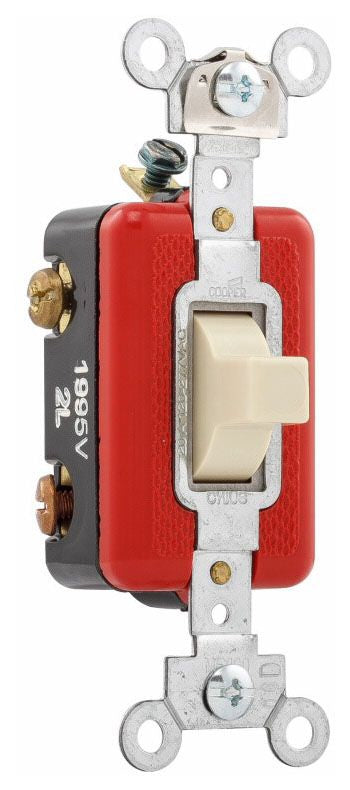

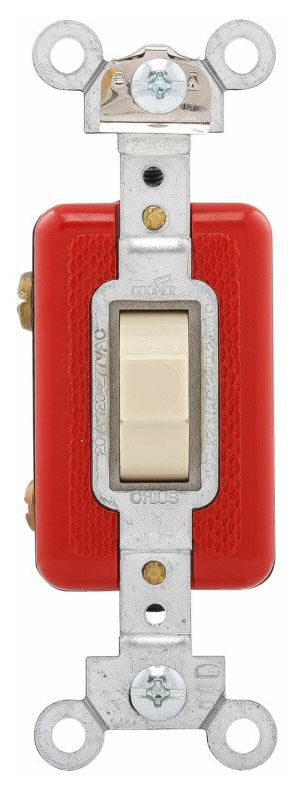

The EATON 1995V Arrow Hart toggle switch is a 3-position, single pole switch designed for industrial applications. Rated at 20A and 120/277V, it features a momentary/toggle actuator and screw terminals. Constructed from polycarbonate, it is suitable for operating temperatures from -40 to 65 deg C. It is ideal for motor control and fan applications.

  • Dual back-wire holes for feed-through wiring
  • 1-piece brass contact arm and large silver alloy contact assure low resistance switching
  • Spring-loaded terminal screws

Product Highlights

Industrial grade toggle switch with robust construction and reliable performance. Suitable for a variety of applications.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: 1995V
  • Country of Origin: MEX
Technical Specifications
Actuator
Momentary/Toggle
Amperage Rating
20 A
Application
Industrial Facilities and Factories Facility applications
Contact Rating
20 A at 120/277 VAC
Environmental Conditions
-40 to 65 deg C Operating Temperature
Manufacturer Part Number
1995V
Material
Polycarbonate
Mounting
Wall
Number of Poles
1
Power Rating
1/2 hp
Standards/Approvals
CSA Certified|cULus Listed|UL Listed
Terminal Type
Screw
Type
3-Position
Voltage Rating
120/277 V
Wiring
Side
Poles
1
Product Type
Industrial Grade Toggle Switch
Amperage
20
Voltage
120/277V
AWG
14-10
Mount
Flush
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
1 in
Certifications
CSA Certified cULus Listed UL Listed
Special features
Momentary toggle
Wiring method
Side
Switch type
Single-pole
Mounting method
Flush
Connector type
Screw
Load type
HAL Motor Control FLR INC CFL Fan LED ELV MLV
Allowable wire size
#14-10 AWG
Torque rating
14 lbf-inch
Terminal enclosure material
Brass
Circuit
SPST
Switch Function
On-Off
Current Rating (Amps)
20A (AC)
Voltage Rating - AC
120 V
Actuator Type
Paddle
Termination Style
Screw Terminal
Bushing Thread
Unthreaded
Maximum Amperage
20 Amp
Maximum Voltage
277V
Product Dimensions
1.31-in X 1-in X 3.28-in
