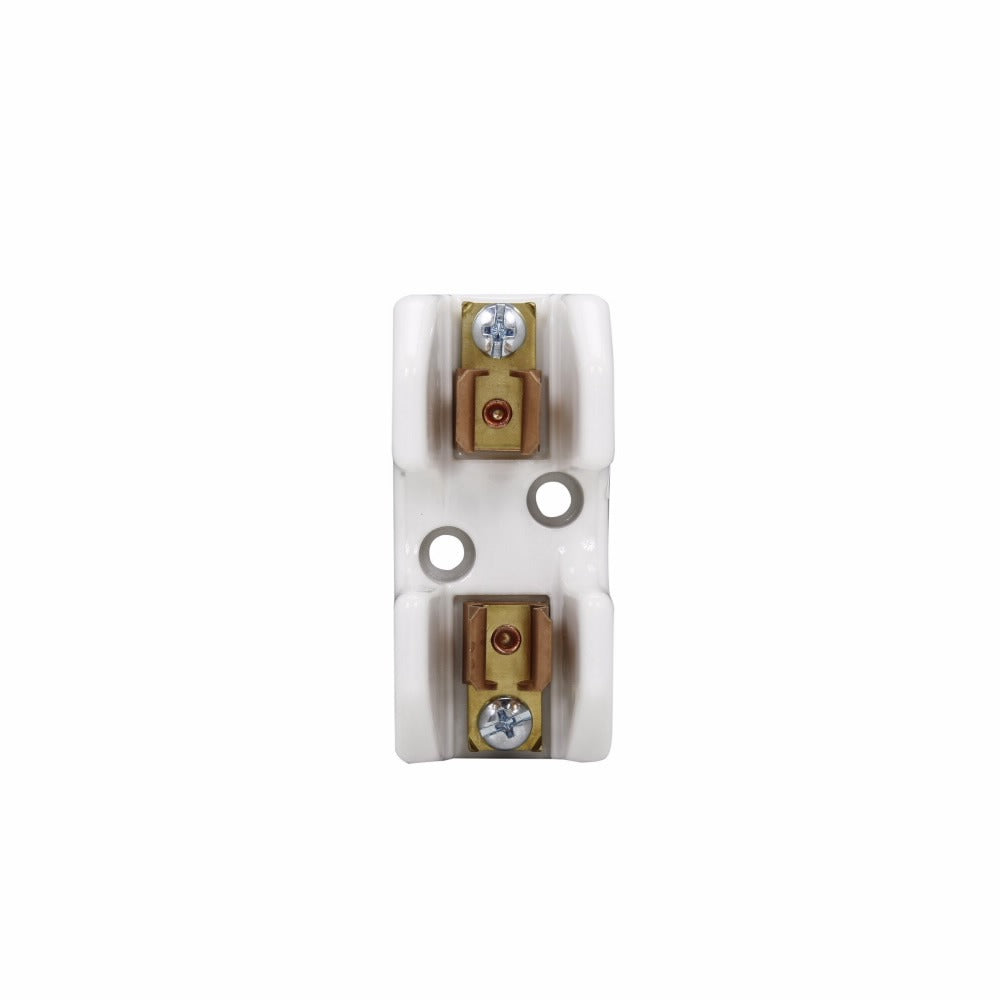

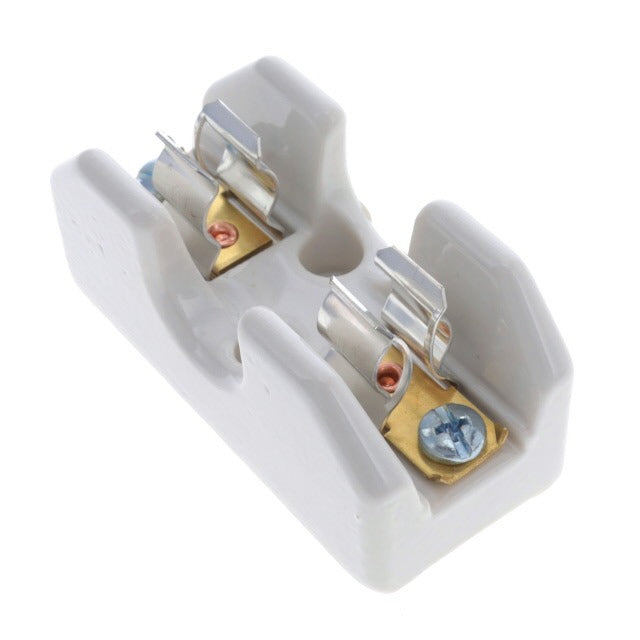

Eaton 1976-1 Bussmann Fuse Block 700 V (14 mm x 51 mm / 1 Pole)

Product Description

Eaton 1976-1 is a Bussmann single-pole ceramic fuse block rated for 700 V and 30 A, designed to accept 14 mm x 51 mm (2 in) cartridge fuses. It accepts fuses with approximately 9/16 in diameter and uses screw terminals with a pressure plate for connection. The unit is chassis-mount with horizontal orientation, UL listed, RoHS compliant, and rated for operation up to 180°C for industrial circuit protection.

• Single-pole ceramic fuse block rated 700 V and 30 A; accepts 14 mm x 51 mm cartridge fuses
• Screw terminal with pressure plate termination; horizontal chassis-mount orientation
• UL listed, RoHS compliant, operating temperature up to 180°C; compatible with FWX-A14F/FWH-A14F/FWP-A14F fuses

Product Highlights

Ceramic single-pole fuse block for 14 x 51 mm cartridge fuses; 700 V, 30 A, screw terminal, chassis mount.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1976-1
• Country of Origin: Mexico
