Eaton 1877W-BOX Ewd Recp Single 20A 125V

Product Description

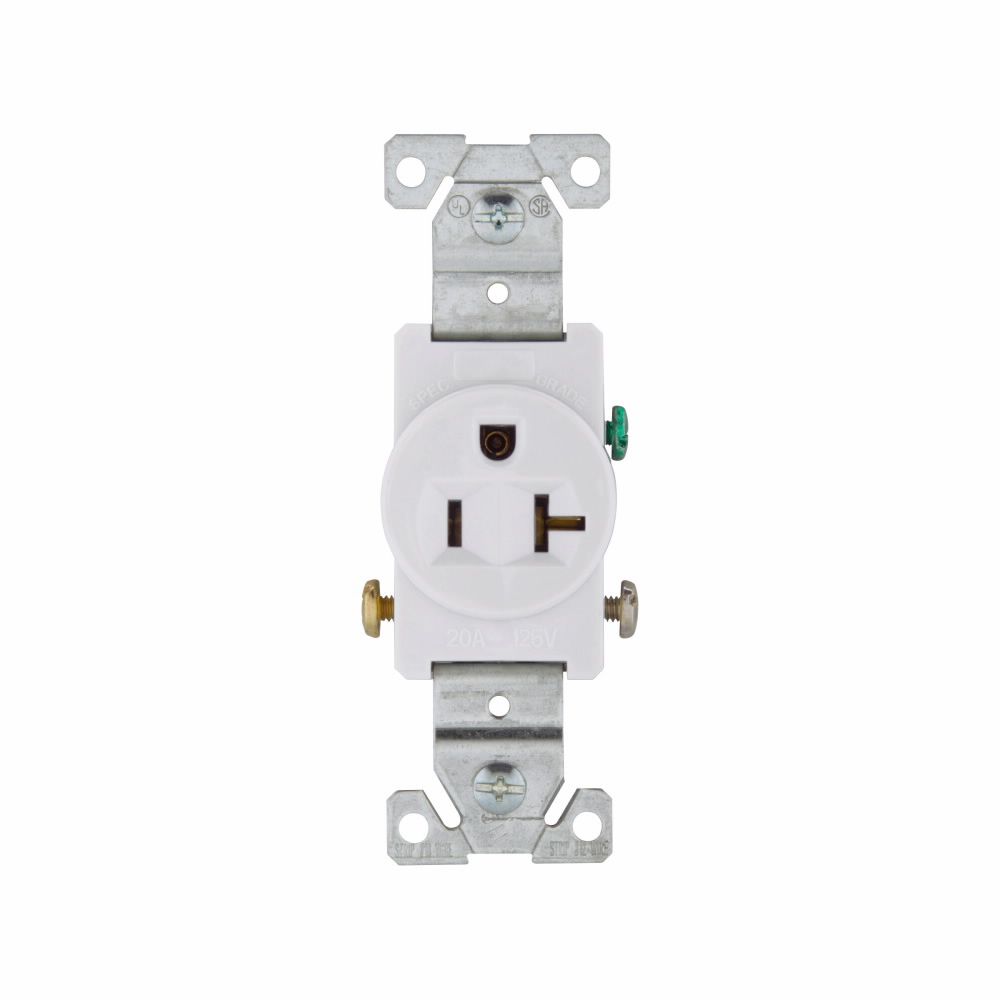

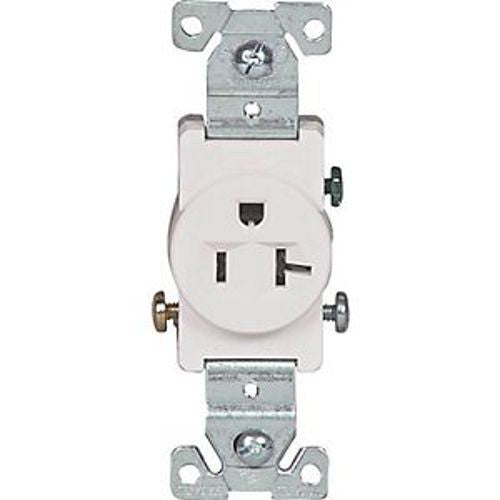

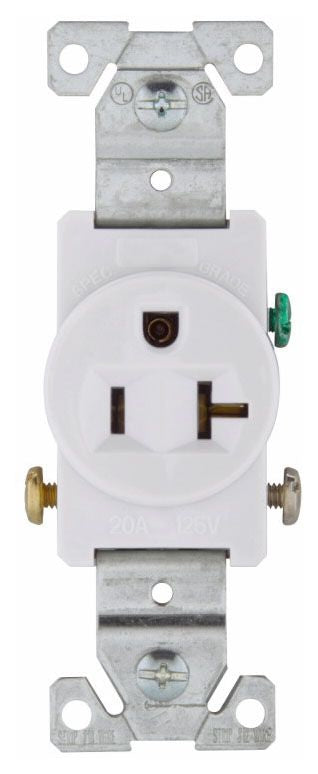

The Eaton 1877W-BOX commercial specification grade single receptacle accepts #14-10 AWG, operates at 125V, and 20A. Engineered for safe, reliable performance, these devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time. It is a flush mount receptacle with side wiring.

• Federal Specification Classification 6233 01
• NOM, cULus Listed
• Galvanized steel, wraparound yoke mounting strap for superior assembly security

Product Highlights

The Eaton 1877W-BOX receptacle is ideal for commercial applications. It features a nylon face, PVC bottom, and brass contacts.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1877W-BOX
• Country of Origin: MEX

Technical Specifications

• NEMA: 5-20R
• Type: Receptacle
• Brand: Eaton
• Color: White
• Grade: Commercial
• Width: 0.87 in
• Height: 4.19 Inch
• Length: 1.31 Inch
• Voltage: 125 Volt AC
• Amperage: 20 Amp
• Material: Nylon
• Grounding: Grounding
• Sub Brand: Eaton Wiring Devices
• Wire Size: 14-10 AWG
• Applications: NON-RESI RECEPTACLE
• Mounting Type: Flush
• Wiring Method: Side
• Conductor Size: 14-10 AWG
• Connection Type: Side
• Number of Poles: 2
• Number of Wires: 3
• Receptacle Type: Grounding
• Contact Material: Brass
• Temperature Rating: -20 to 70 degrees C
• Insulation Material: Nylon
• NEMA Rating: NEMA 5-20R
• Series: 1877
• Terminal Type: Side Wire/Screw
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Application: Non-Residential Applications
• RoHS Compliant: True
• NAFTA Compliant: True
• Wiring: Side
• Current Rating: 20 A
• Operating Temperature: -4 to 140 deg F
• Wiring Type: Side
• NEMA Configuration: NEMA 5-20R
• Product Length/Depth: 1.31 in
• Product Height: 4.19 in
• Product Width: 0.87 in
• Product Weight: 0.163 lb
• Product Type: Commercial specification grade
• Device type: Receptacle
• Style type: Standard
• Face/body material: PVC bottom Nylon face
• Receptacle type: Single
• Allowable wire size: Side Wiring: #10-14 Copper or Copper Clad Aluminum
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• SKU: 1877W-BOX
• Product Name: Eaton commercial specification grade single receptacle
• Catalog Number: 1877W-BOX
• Features: Auto-grounding
• Device grade: Commercial
