Product Description

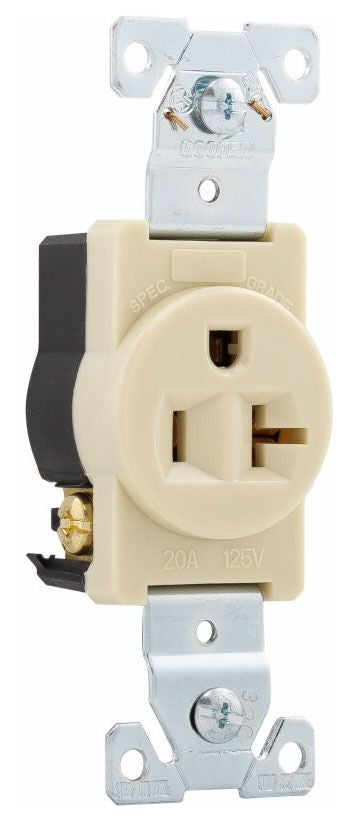

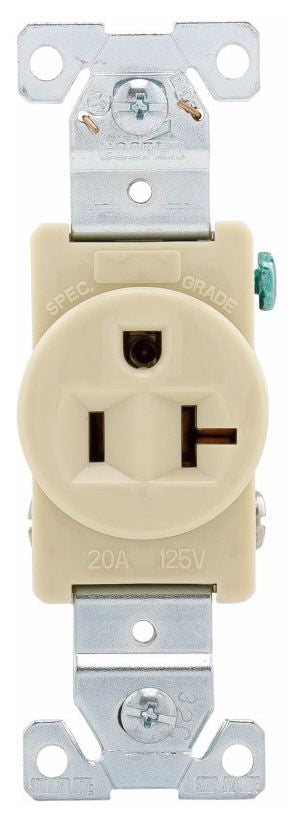

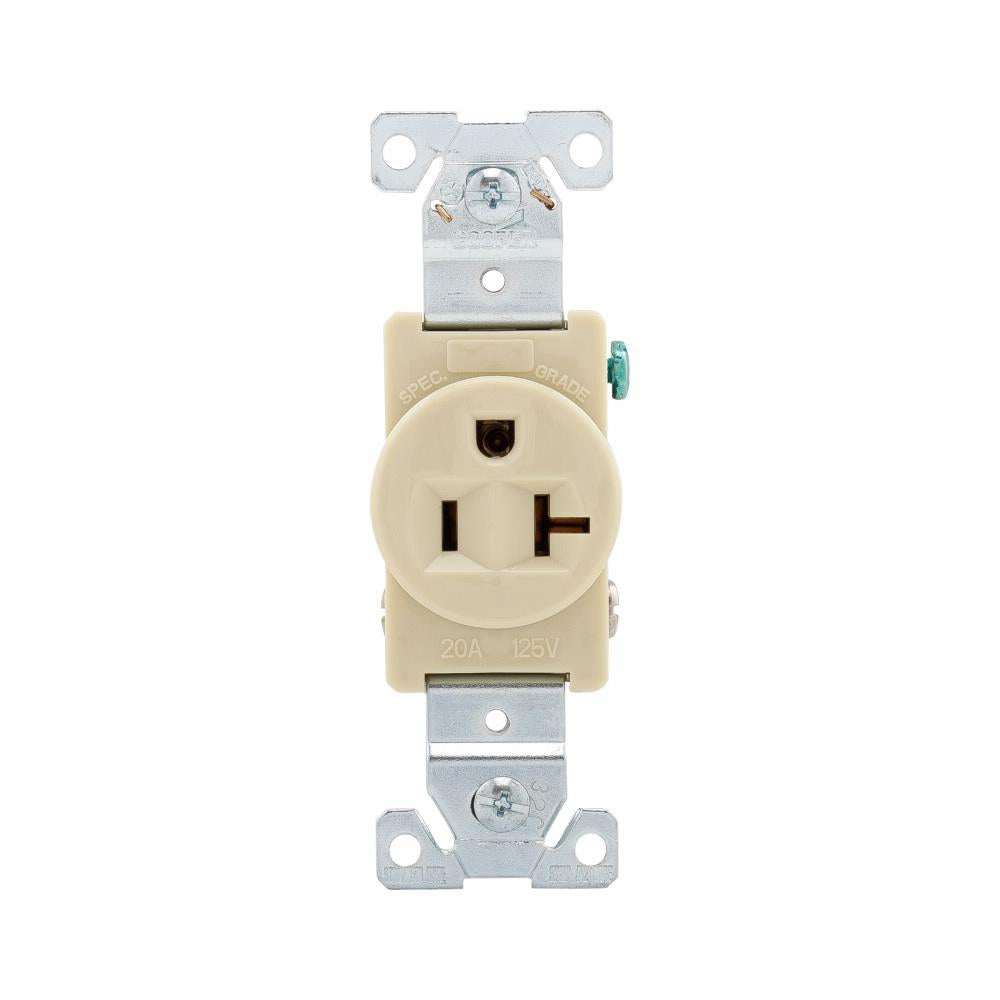

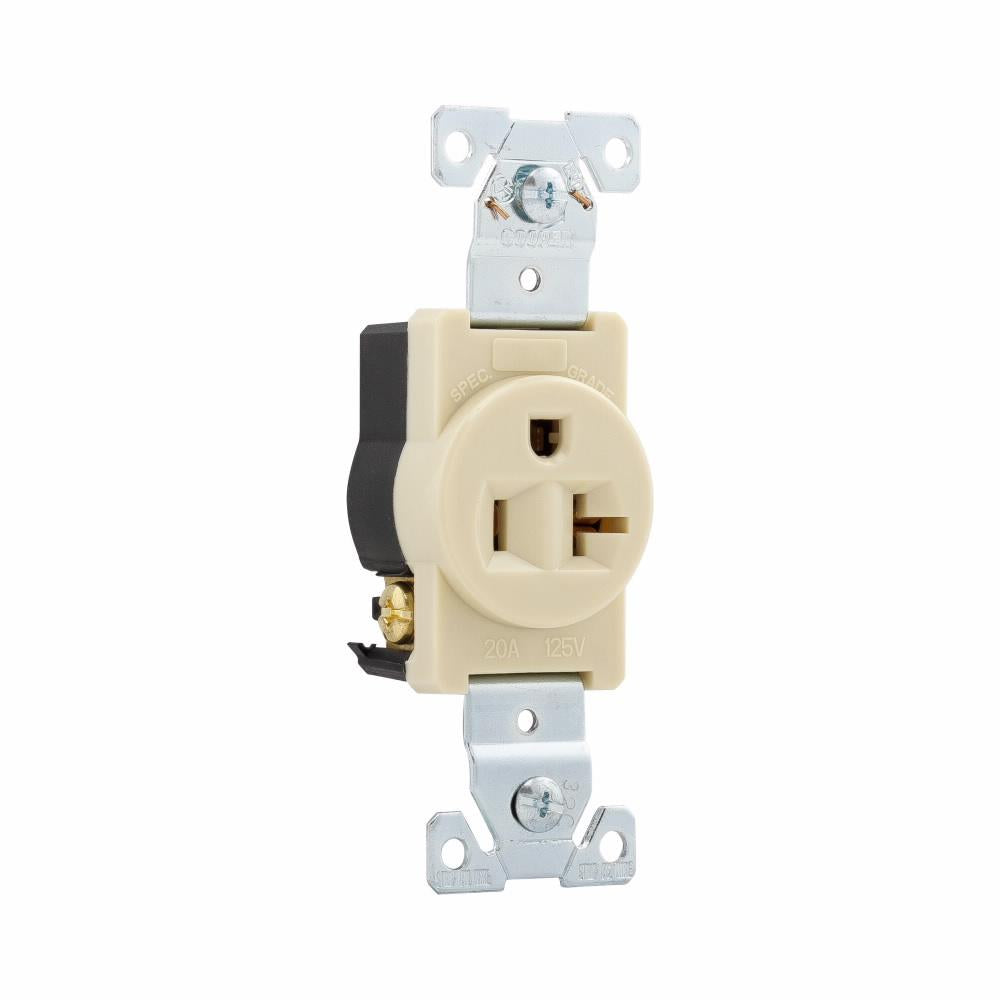

The EATON 1877V-BOX is a commercial specification grade straight blade receptacle, engineered for safe and reliable performance. This single tamper-resistant receptacle is rated for 20 A, 125 VAC, and NEMA 5-20R. It provides maximum durability in a wide variety of applications and installation efficiency. It is UL 498 and Federal Specification W-C-596 listed.
- Features a galvanized steel, wraparound yoke mounting strap for superior assembly security.
- Automatic grounding system eliminates the need for a bonding jumper in grounded metal enclosures.
- Tamper-resistant receptacles comply with 2014 NEC Article 406.12.
Product Highlights
This receptacle offers a safe, durable, and code-compliant solution for commercial applications, ensuring reliable performance and easy installation.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: 1877V-BOX
-
Country of Origin: MEX
Technical Specifications
-
Grade: Commercial
-
Material: Nylon
-
NEMA Rating: NEMA 5-20R
-
Series: 1877
-
Temperature Rating: -4 to 158 deg F
-
Terminal Type: Side Wire/Screw
-
Type: Single Tamper-Resistant
-
Voltage Rating: 125 VAC
-
Amperage Rating: 20 A
-
Number of Poles: 2
-
Number of Wires: 3
-
Application: Commercial
-
Receptacle Type: Straight Blade
-
Feature: Tamper-Resistant
-
Mounting Type: Flush
-
Wiring Type: Side
-
Wire Size: 14 to 10 AWG
-
Contact Material: Brass
-
Connection Type: Screw
-
NEMA configuration: 5-20R
-
Torque rating: 14 lbf-inch
-
Design type: Straight blade
-
Face/body material: PVC bottom Nylon face
-
Receptacle type: Single
-
Operating Temperature: -4 to 140 deg F
-
Current Rating: 20 A
