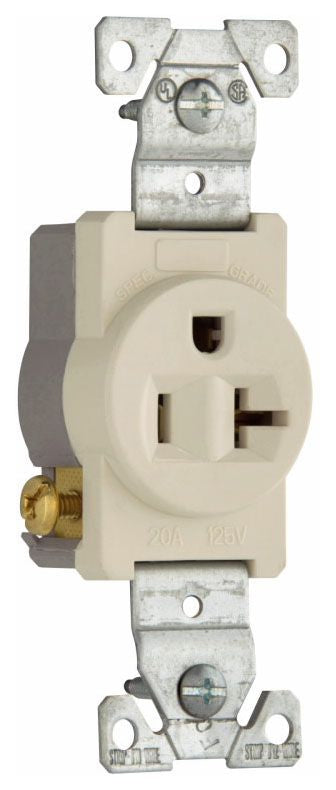

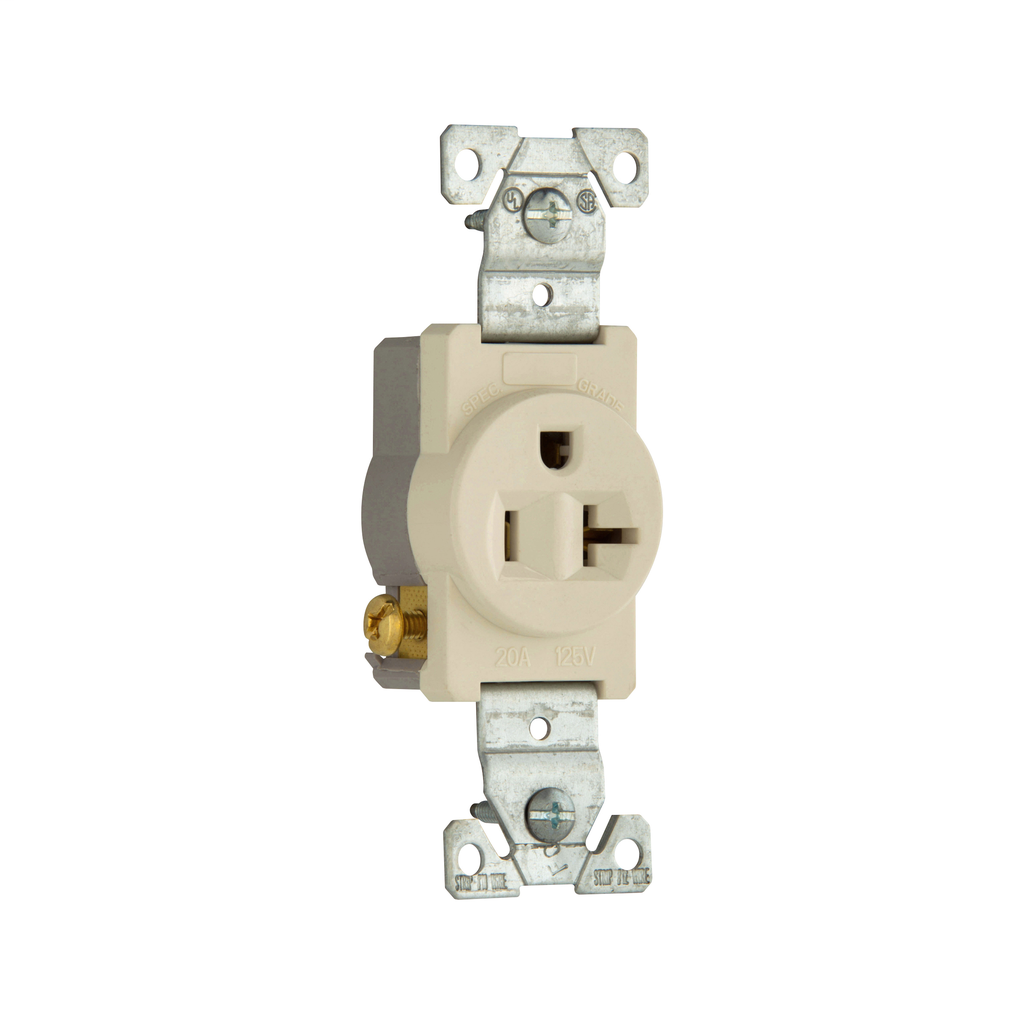

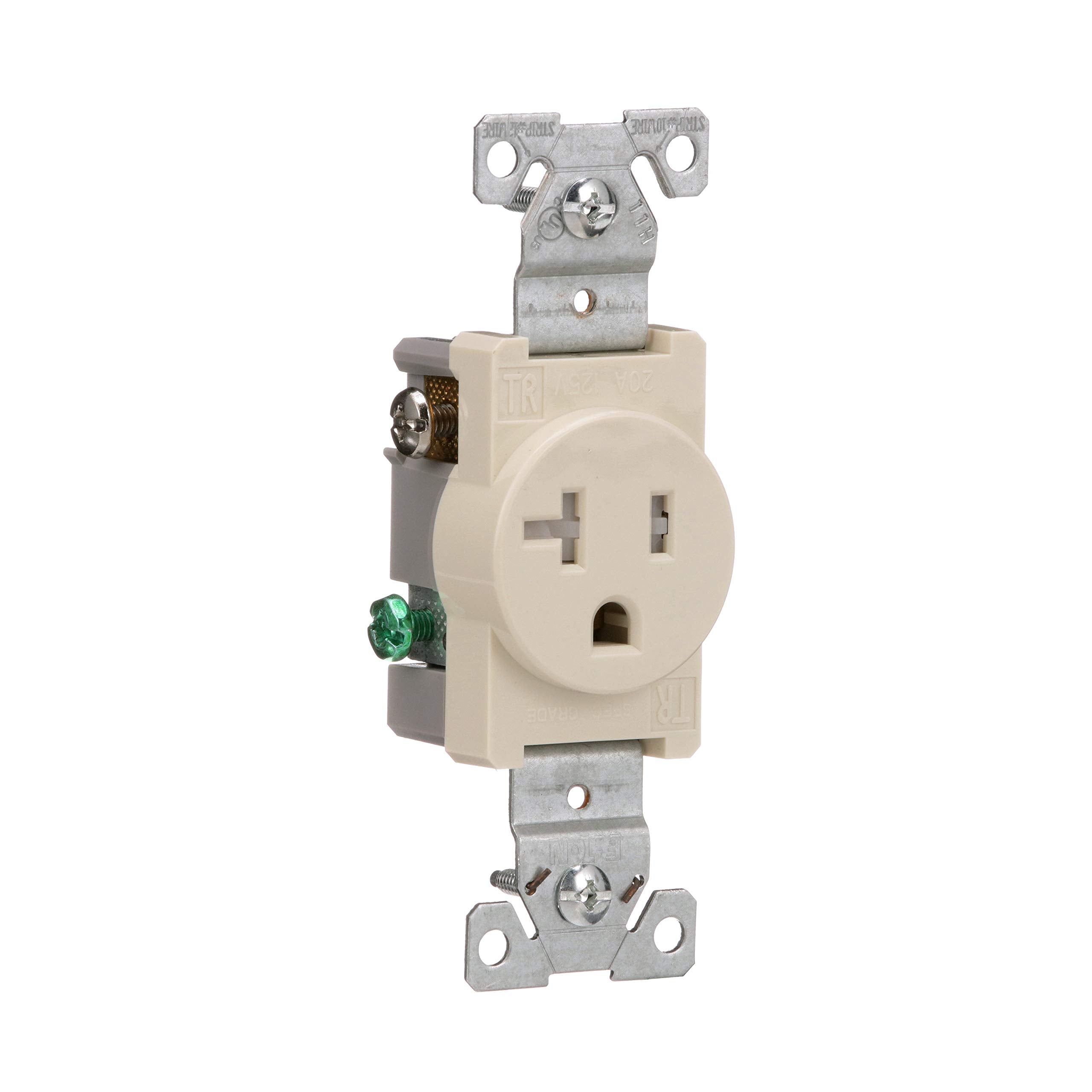

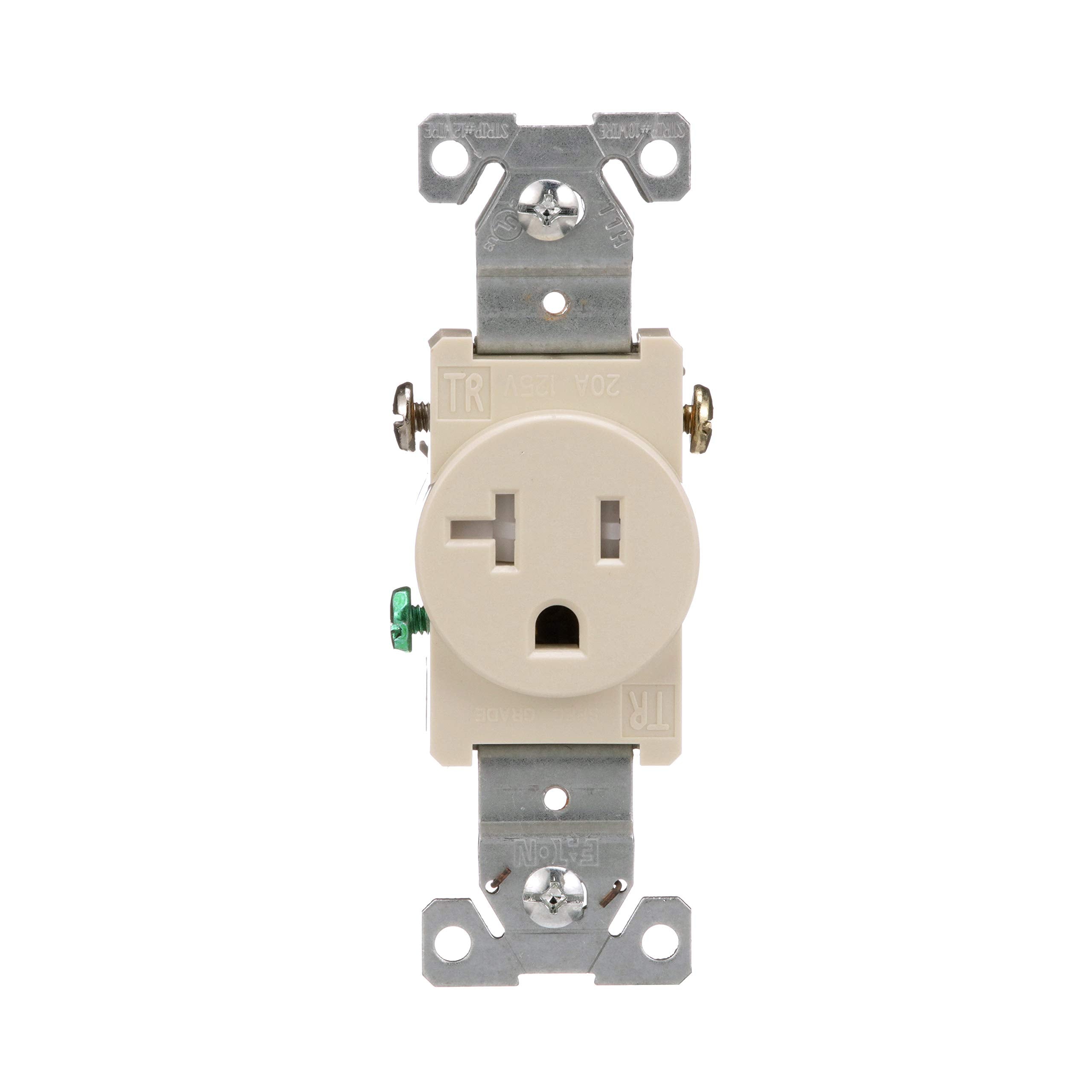

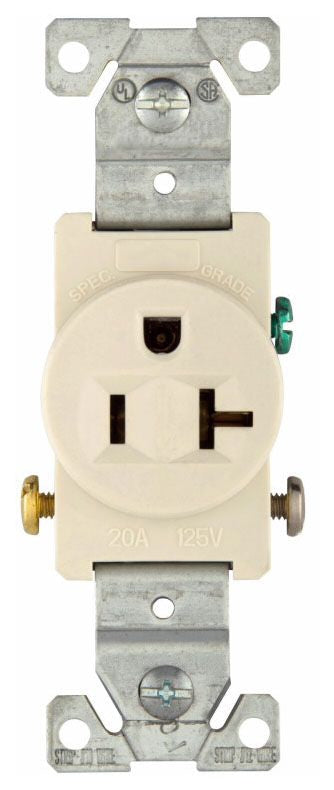

Eaton 1877LA Recp Single 20A 125V 2P3

Product Description

The Eaton 1877LA commercial specification grade single receptacle accepts No.14-10 AWG wiring and is rated for 20A, 125V. Designed for commercial applications, it features a flush mounting design and side wire connection. The receptacle is constructed with a brass contact material, nylon face, and PVC bottom.

• Commercial specification grade receptacle
• Flush mounting for easy installation
• Side wire connection for secure wiring

Product Highlights

This Eaton single receptacle is ideal for commercial applications requiring a durable and reliable power connection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1877LA
• Country of Origin: MEX

Technical Specifications

• Type: Commercial
• Brand: Eaton
• Color: Light Almond
• Grade: Commercial
• Voltage: 125 Volt
• Amperage: 20 Amp
• Material: PVC
• Grounding: Grounding
• Sub Brand: Eaton Wiring Devices
• Applications: NON-RESI RECEPTACLE
• Mounting Type: Flush
• Conductor Size: 14-10 AWG
• Connection Type: Side
• Number of Poles: 2 Pole
• Number of Wires: 3 Wire
• Contact Material: Brass
• NEMA Configuration: 5-20R
• Receptacle Type: Single
• Tamper Resistant: Yes
• Temperature Rating: -4 to 158 deg F
• Terminal Type: Side Wired
• Standard & Approvals: CSA Certified, RoHS Complaint, UL Listed
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• Face/body material: Nylon face PVC bottom
• Device type: Receptacle
• Wiring method: Side wire
• Style type: Standard
• Packaging type: Core pack
• Allowable wire size: Side Wiring: #10-14 Copper or Copper Clad Aluminum
• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
