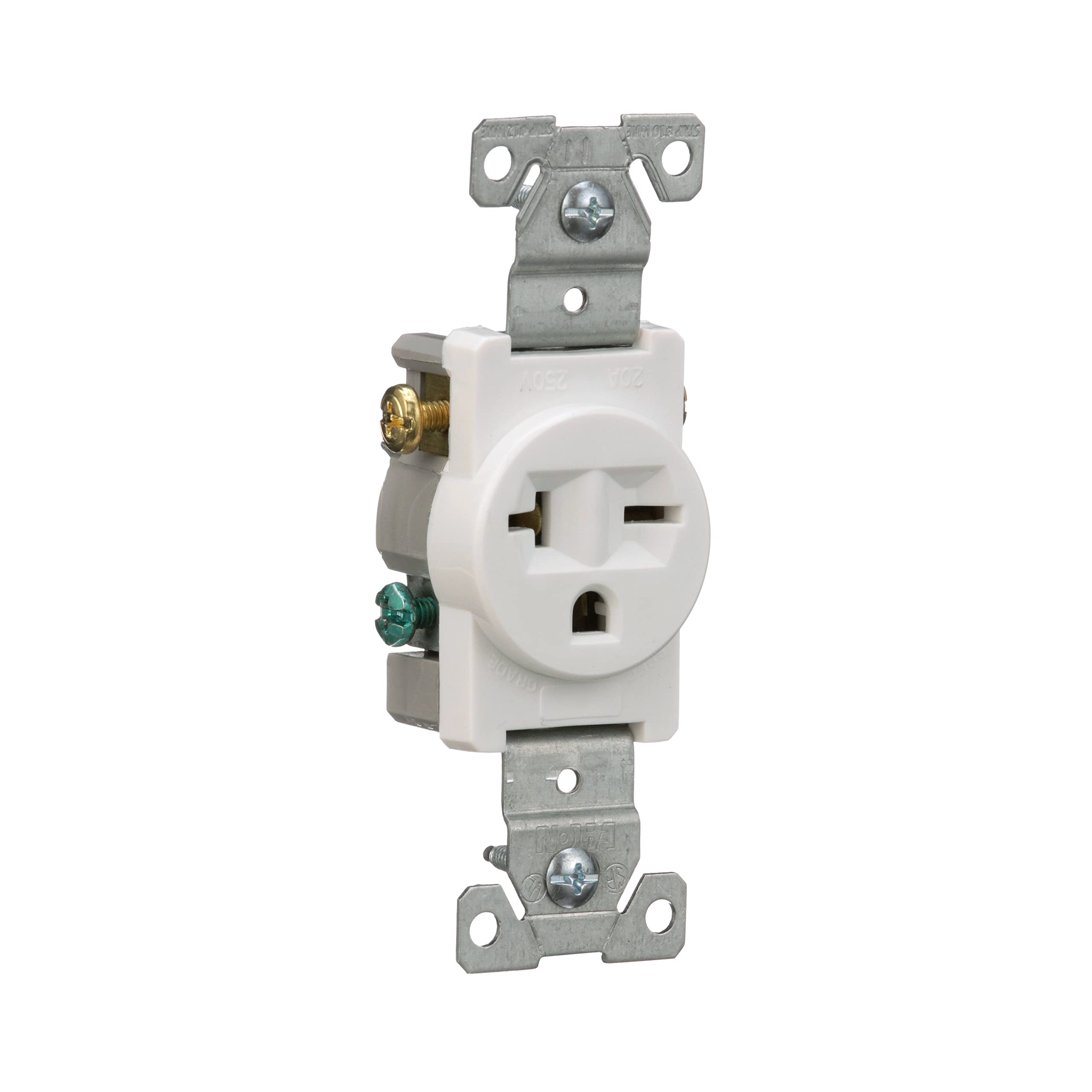

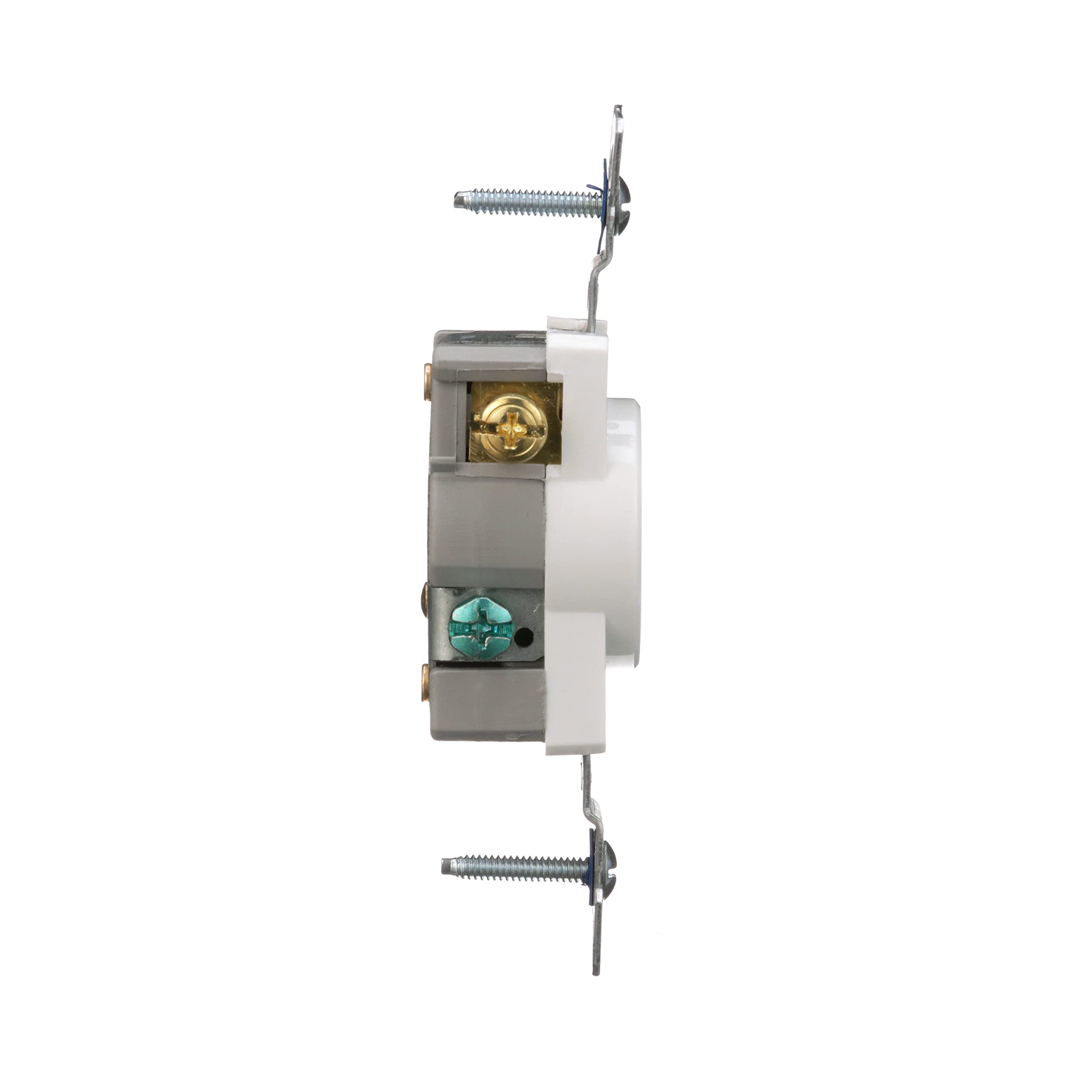

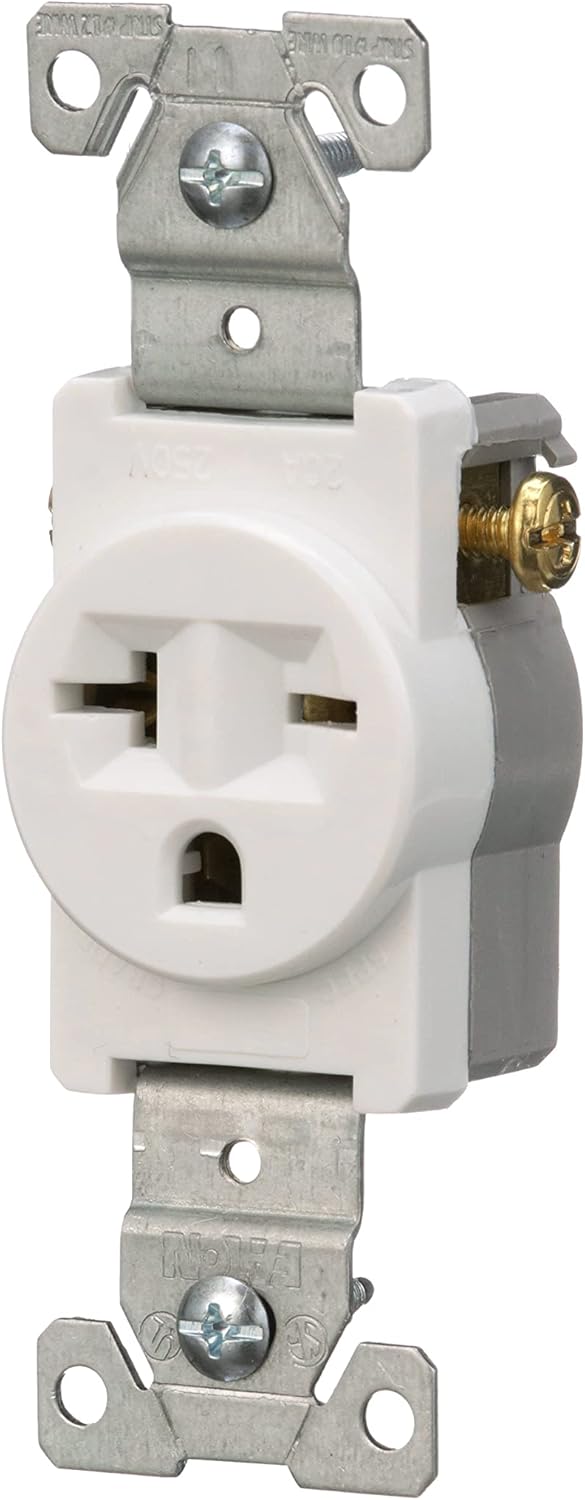

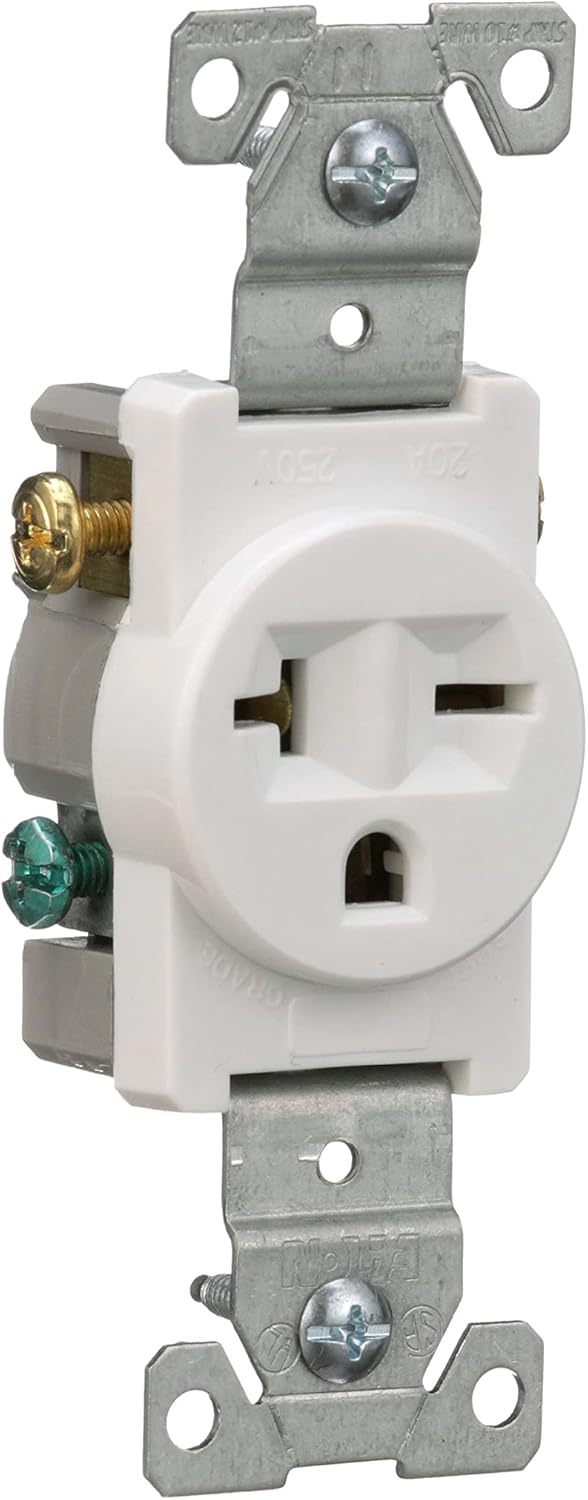

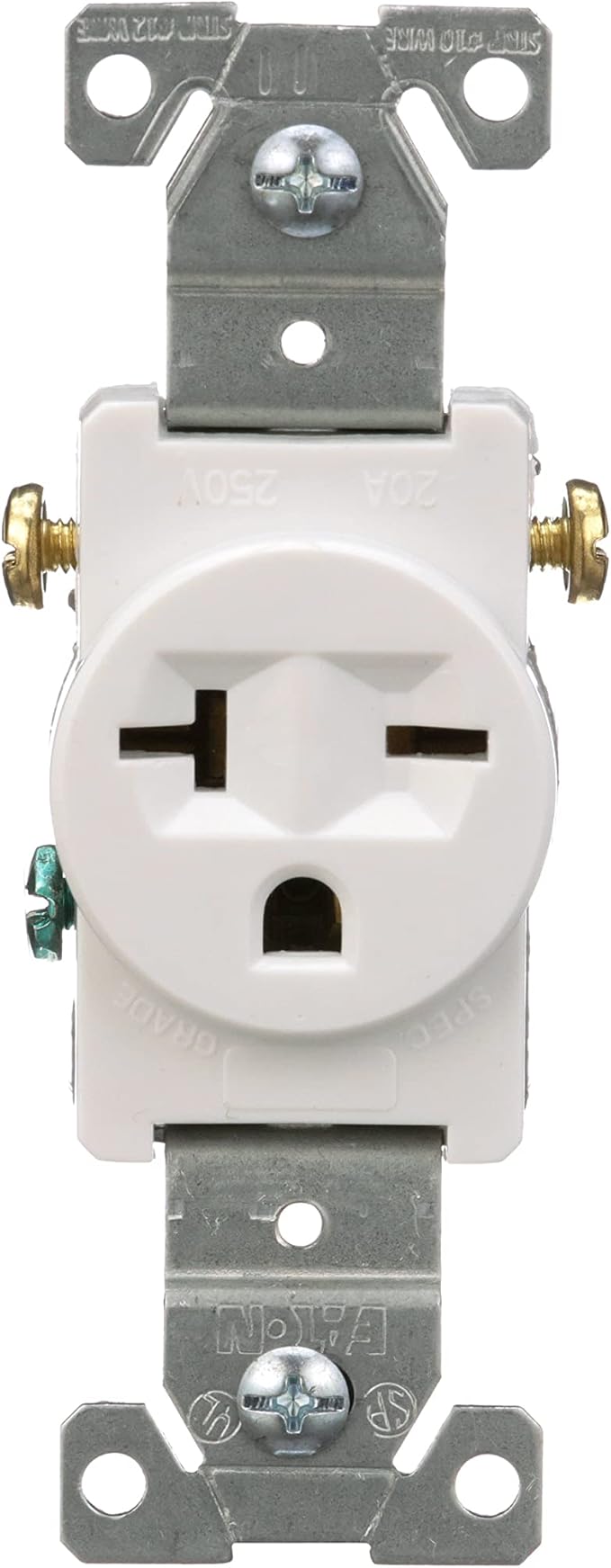

Eaton 1876W-BOX Commercial Grade Straight Blade Single Receptacle 20-Amp, 250-Volt 6-20-NEMA Rating

Product Description

The Eaton 1876W-BOX commercial grade straight blade single receptacle is engineered for safe, reliable performance. Rated for 20-Amps and 250-Volts, this single receptacle is designed for a variety of commercial applications and uses side wiring. It is UL 498 and Federal Specification WC-596 listed.

• Galvanized steel, wraparound yoke mounting strap for superior assembly security.
• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure.
• Side wire terminals accept up to #10 solid or stranded wire.

Product Highlights

The Eaton 1876W-BOX receptacle provides maximum durability in a wide variety of applications. It offers installation efficiency to help finish the job on time.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1876W-BOX
• Country of Origin: MEX

Technical Specifications

• Color: White
• Voltage: 250 Volts
• Wattage: 1876 watts
• Material: Nylon
• Certification: UL, NEMA
• Grade: Commercial
• NEMA Rating: NEMA 6-20R
• Temperature Rating: -20 to 70 deg C
• Terminal Type: Side Wire/Screw
• Type: Single
• Voltage Rating: 250 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Amperage: 20 Amps
• Wiring: Side wire terminals accept up to #10 solid or stranded wire
• Listing: UL 498 and Federal Specification WC-596 listed
• Application: Non-Residential Applications
• Standards/Approvals: cULus Listed|UL 498|UL 94 V-2 Flammability Rated|CSA C22.2 Certified|NOM 426 Certified
• Current Rating: 20 A
• Mounting Type: Flush
• Wire Size: 14 to 10 AWG
• Wiring Type: Side
• Product Length/Depth: 1.31 in
• Product Height: 4.19 in
• Product Width: 0.83 in
• Compliances: RoHS Compliant
• Product Type: Commercial specification grade
• Device type: Receptacle
• Allowable wire size: Side Wiring: #10-14 Copper or Copper Clad Aluminum
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• Face/body material: Nylon face PVC bottom
• Receptacle type: Single
• Operating Temperature: -4 to 140 deg F
