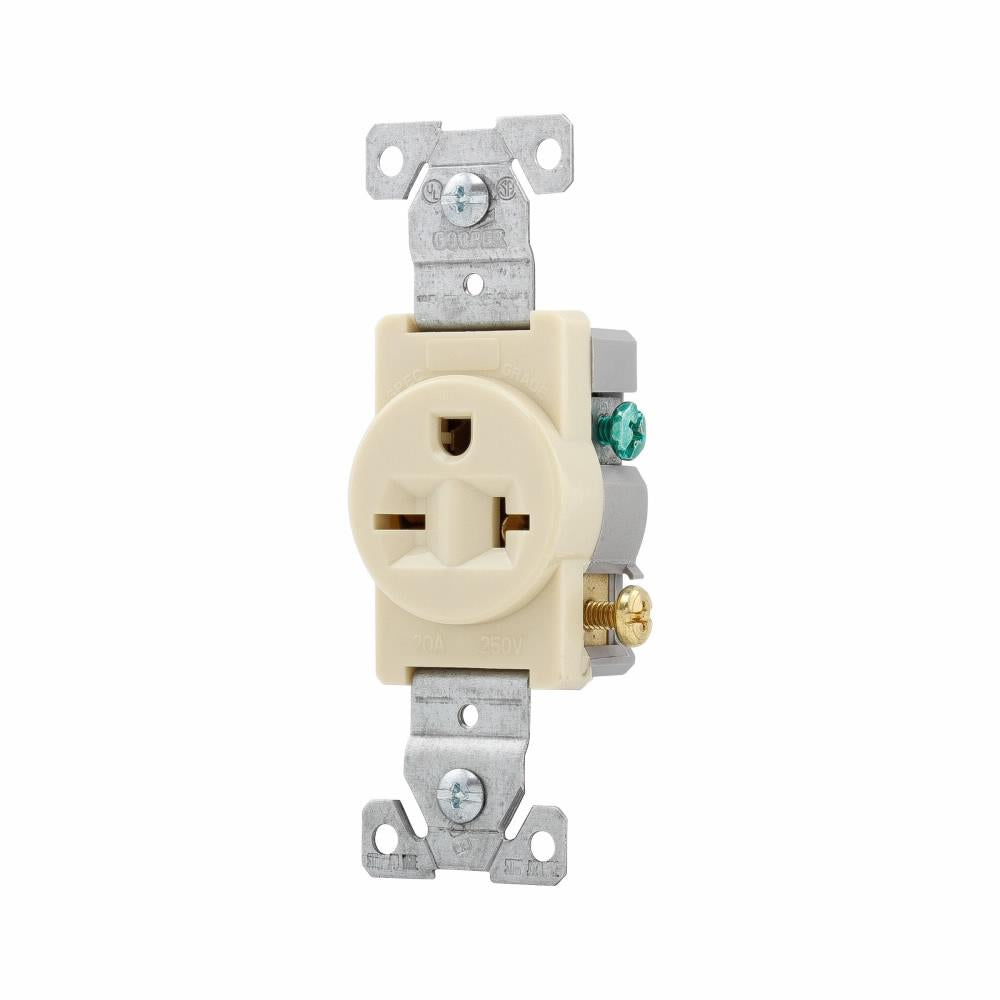

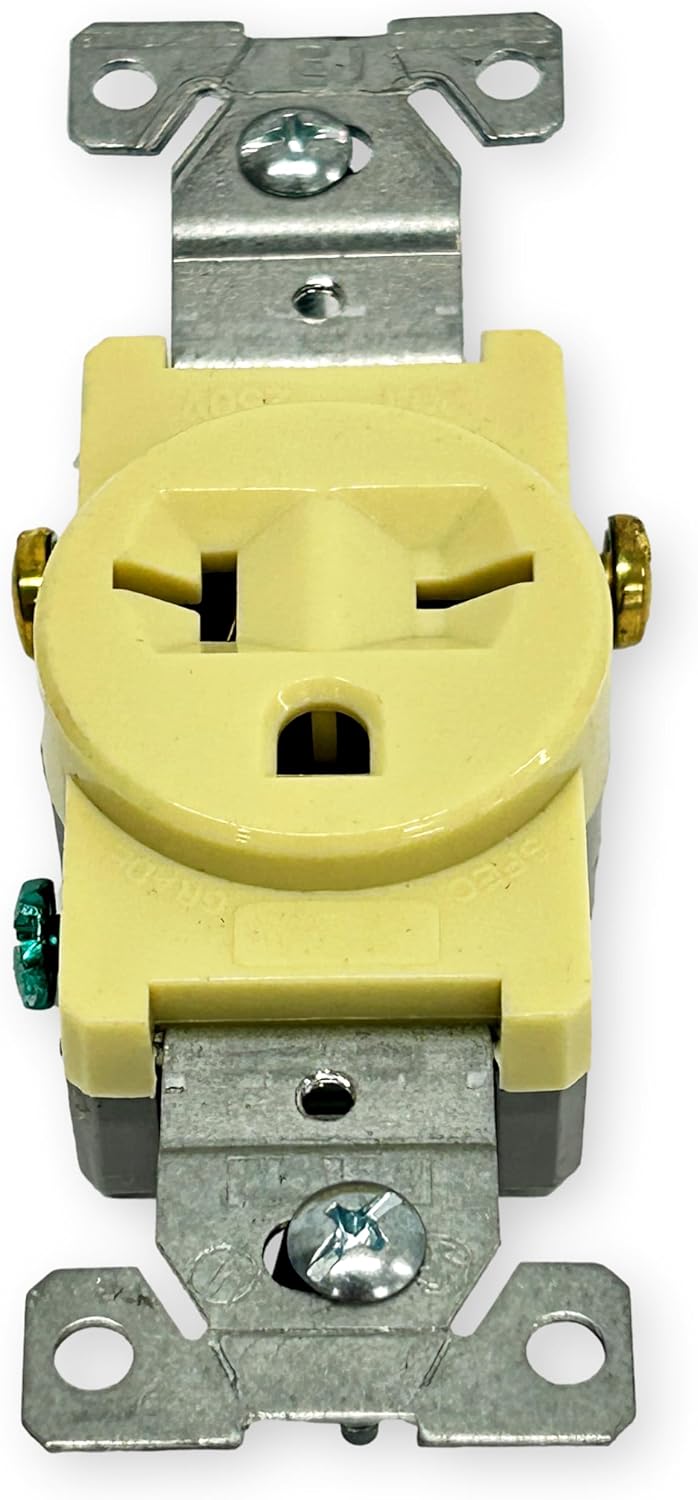

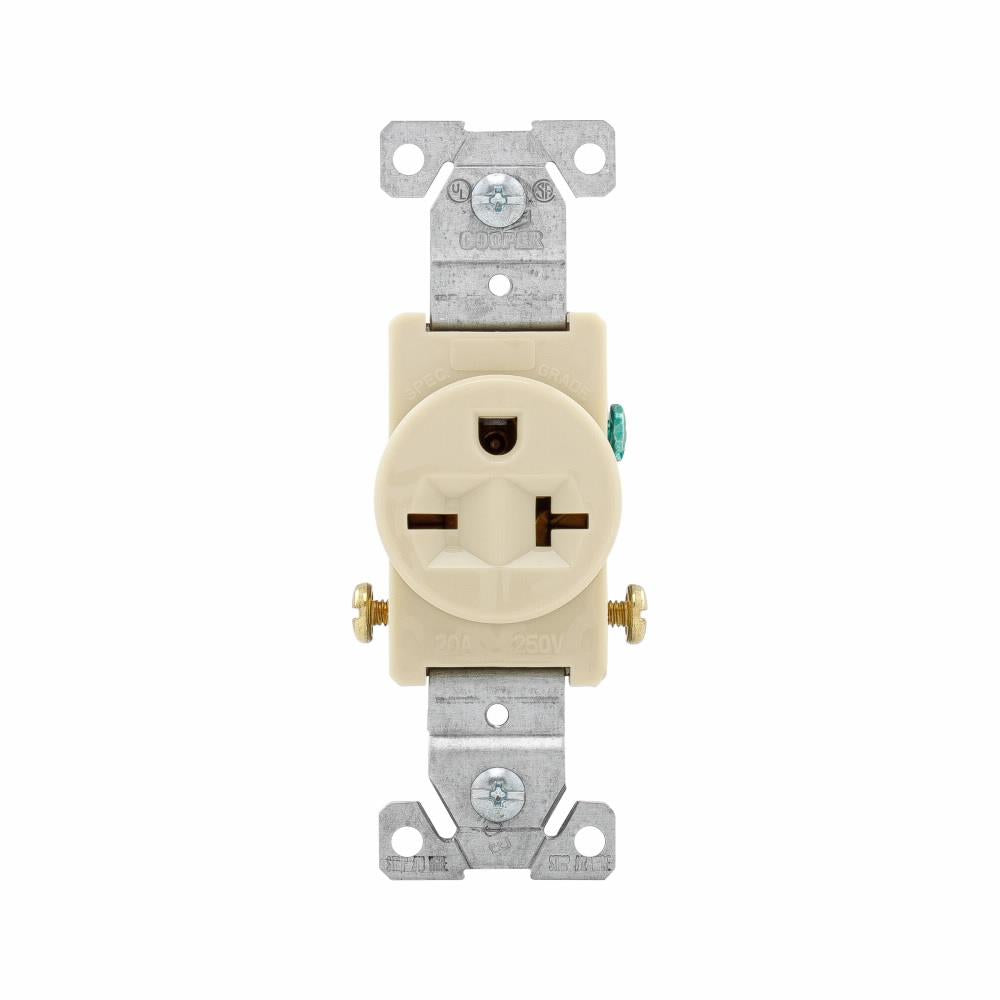

Eaton 1876V-BOX Arrow Hart 1876 Straight Blade Single Receptacle 250 Vac 20 A

Product Description

The Eaton 1876V-BOX Arrow Hart 1876 is a straight blade single receptacle, designed for commercial applications. Rated at 250 VAC and 20 A, this 2-pole, 3-wire receptacle ensures safe and reliable performance. It is UL 498 and Federal Specification WC-596 listed, providing maximum durability and installation efficiency.

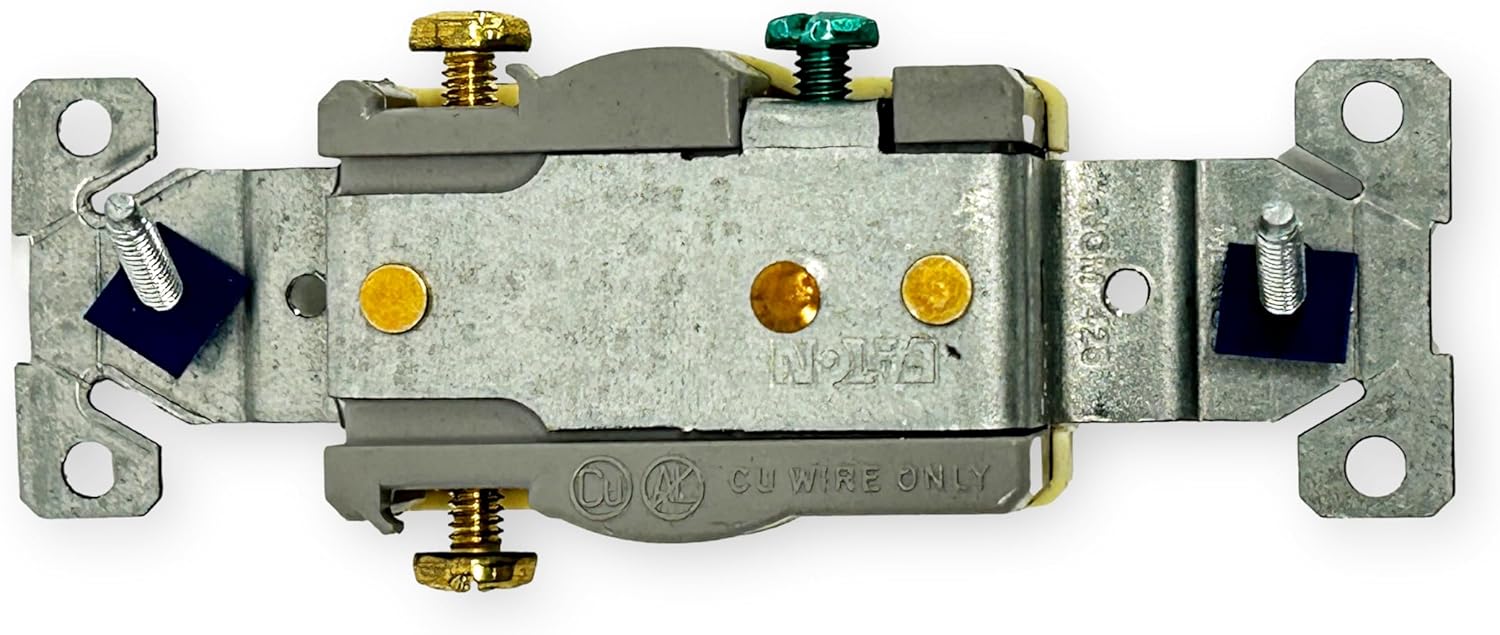

• Galvanized steel wrap around yoke mounting strap for superior assembly security

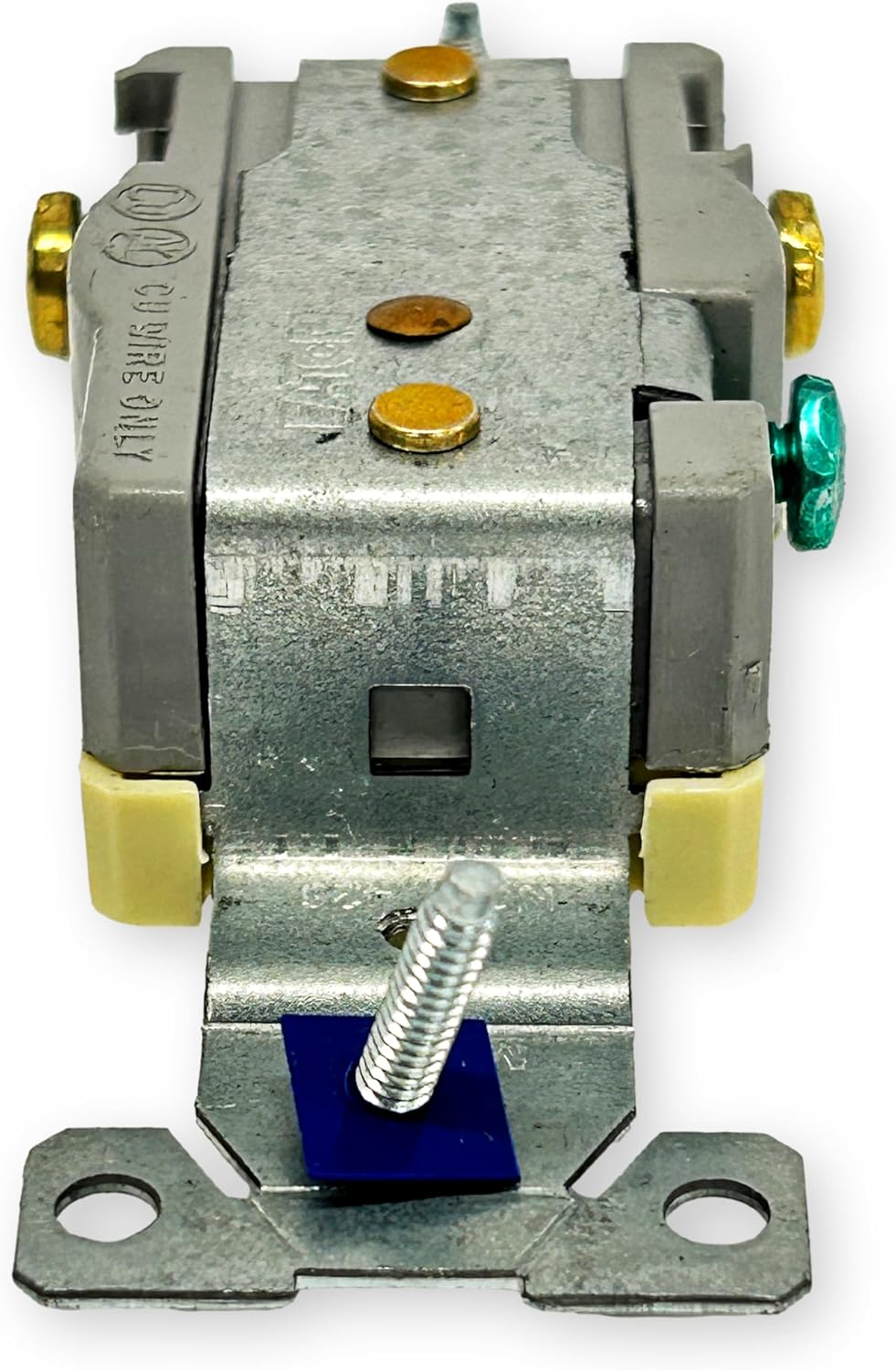

• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure
• Flush mounting

Product Highlights

This Eaton Arrow Hart receptacle is ideal for commercial settings, offering durability and ease of installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1876V-BOX
• Country of Origin: MEX

Technical Specifications

• Certification: UL, NEMA
• Total Power Outlets: 1
• Grade: Commercial
• Material: Nylon
• NEMA Rating: NEMA 6-20R
• Temperature Rating: -20 to 70 deg C
• Terminal Type: Side Wire
• Type: Auto Grounding Single
• Voltage Rating: 250 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Mounting Type: Flush
• NEMA Configuration: NEMA 6-20R
• Operating Temperature: -4 to 140 deg F
• Wire Size: 14 to 10 AWG
• Wiring Type: Side
• Product Length/Depth: 1.31 in
• Product Height: 4.19 in
• Product Width: 0.83 in
• Compliances: RoHS Compliant
• Product Type: Commercial specification grade
• Device type: Receptacle
• Style type: Standard
• Connection type: Screw
• Allowable wire size: Side Wiring: #10-14 Copper or Copper Clad Aluminum
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• Face/body material: PVC bottom Nylon face
• Receptacle type: Single
