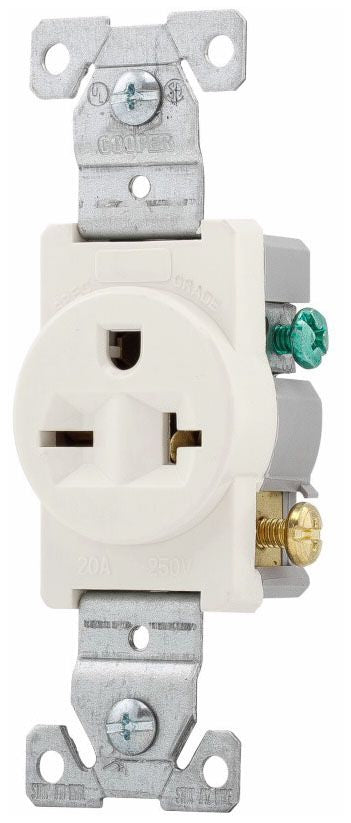

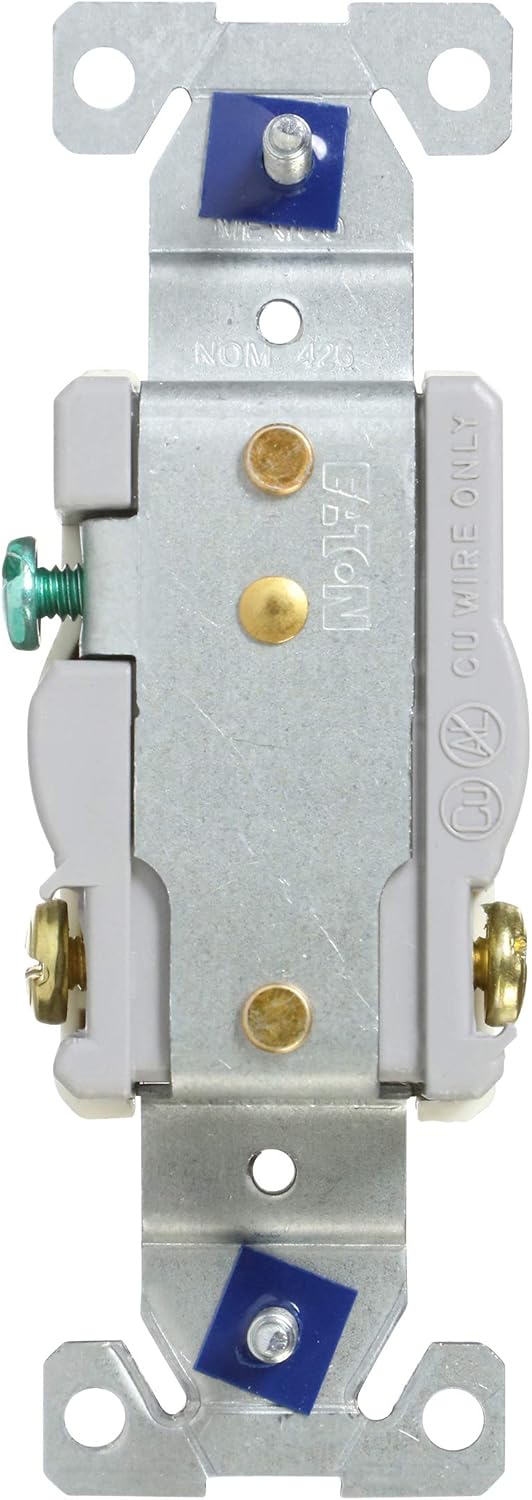

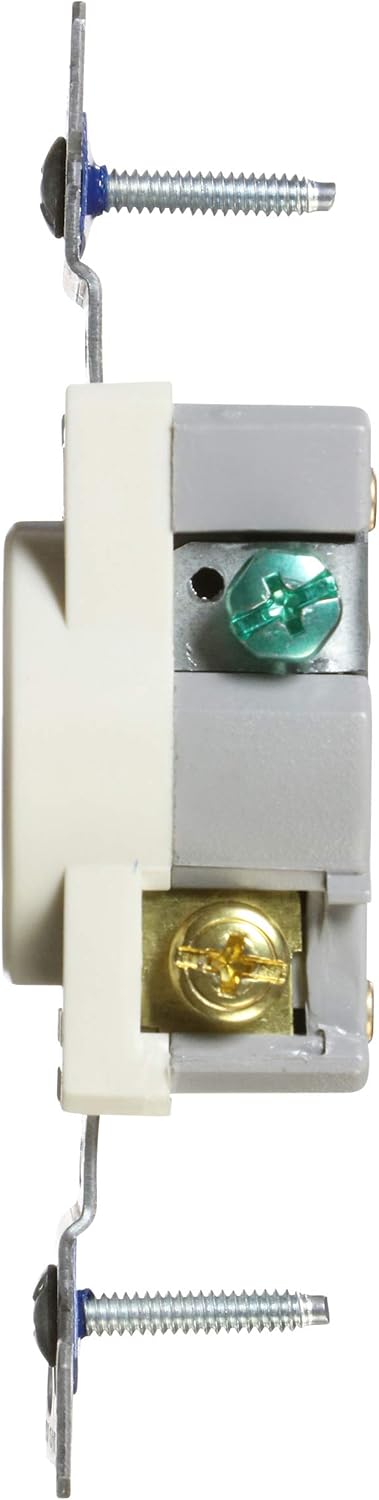

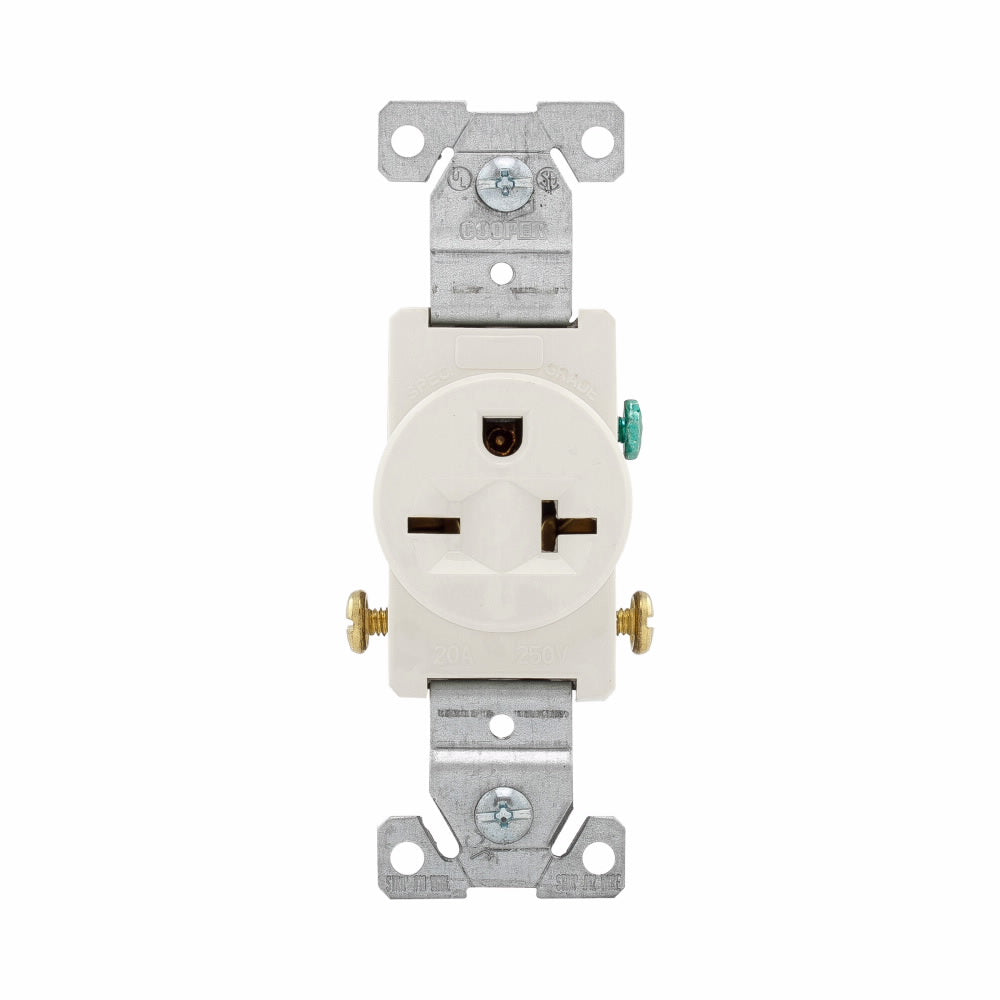

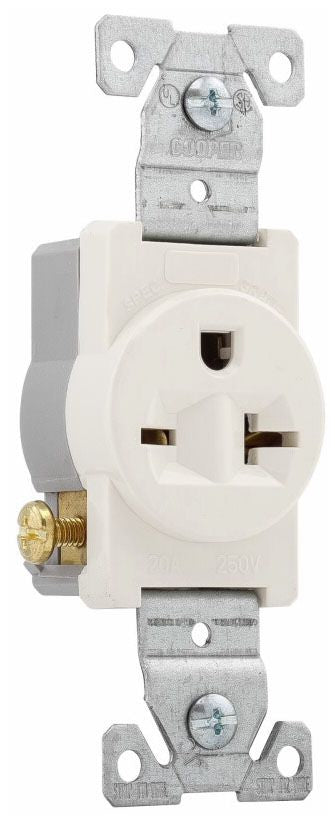

Eaton 1876LA Single Grounding Receptacle 250V

Product Description

The Eaton 1876LA Single Grounding Receptacle is rated for 250V. Engineered for safe, reliable performance, this single receptacle is suitable for a variety of applications. It is UL 498 and Federal Specification WC-596 listed and NEMA 6-20R rated. Designed with side wiring for easy installation.

• Rated for 250V and 20A with side wiring
• UL 498 listed and Federal Specification WC-596 listed
• Automatic grounding system eliminates need for bonding jumper

Product Highlights

The Eaton 1876LA single receptacle provides maximum durability and installation efficiency for commercial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1876LA
• Country of Origin: USA

Technical Specifications

• Voltage: 250 Volts
• Certification: UL, NEMA
• Item Model Number: 1876LA
• Part Number: 1876LA
• Amperage: 20 A
• Poles: 2
• Wires: 3
• NEMA Configuration: 6-20R
• Type: Straight Blade Receptacle
• Features: Tamper-Resistant, Grounding
• Amperage Rating: 20A
• Grade: Commercial
• NEMA Rating: NEMA 6-20R
• Number of Poles: 2
• Number of Wires: 3
• Standards/Approvals: UL Listed|UL94 V-2 Flammability Rating
• Temperature Rating: -20 to 70 deg C
• Terminal Type: Side Wire
• Wiring Type: Side
• Wire Size: 14 to 10
• Operating Temperature: -4 to 140
• Mounting Type: Flush
• Total Power Outlets: 1
• Connector Type: Plug In
• Specification Met: NEMA, UL
• Voltage Rating: 250V
• Contact material: Brass
• Application: Commercial
• Device grade: Commercial
• Wiring method: Side wire
• Mounting method: Flush
• Number of poles: Two-pole
• Style type: Standard
• Packaging type: Core pack
• Connection type: Screw
• Allowable wire size: Side Wiring: #10-14 Copper or Copper Clad Aluminum
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• Receptacle type: Single
