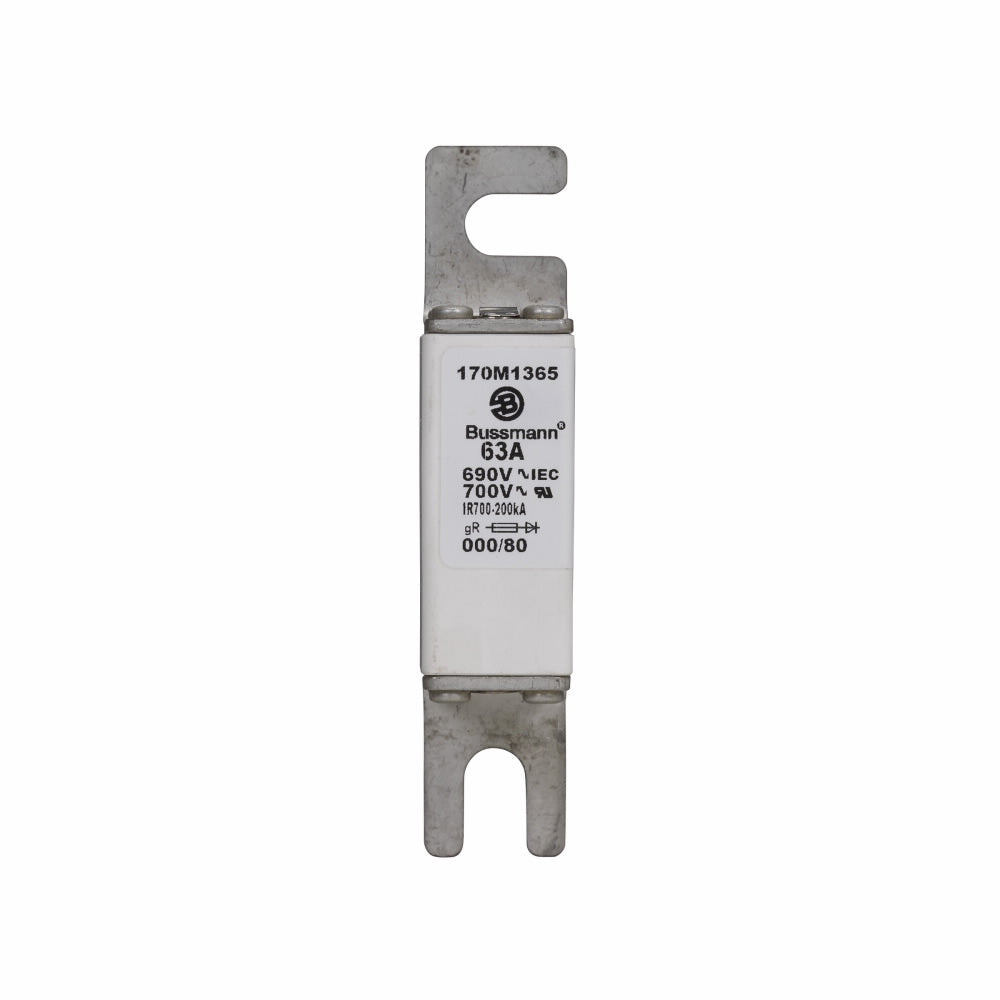

Eaton 170M1365 Buss Division 1 Type 80 High Speed Fuse 63 A 690 VAC

Product Description

The Eaton 170M1365 Bussmann Type 80 High Speed Fuse is designed for reliable circuit protection. This fuse is rated for sixty-three amperes and operates at a voltage of six hundred ninety volts AC. With a high interrupt rating of two hundred kiloamperes, it is suitable for critical applications. The fuse is constructed with a square ceramic body, ideal for various electrical assemblies and industrial applications.

• High speed fuse with an amperage rating of sixty-three A
• Features a square body design with a DIN 43-653 stud mount
• Suitable for applications in electrical panels, safety systems, and critical power facilities

Product Highlights

This fuse supports a wide range of frequencies from forty-five to one thousand Hz, ensuring versatility in different electrical environments.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171221666

Technical Specifications

• Amperage Rating: 63 A
• Voltage Rating: 690 VAC
• Interrupt Rating: 200 kA
• Body Size: 100 mm L x 21 mm W x 40 mm H
• Body Type: Square
• Frequency Rating: 45 to 1000 Hz
• Mounting Type: DIN 43-653 Stud
• Material: Ceramic
• Class: gR
