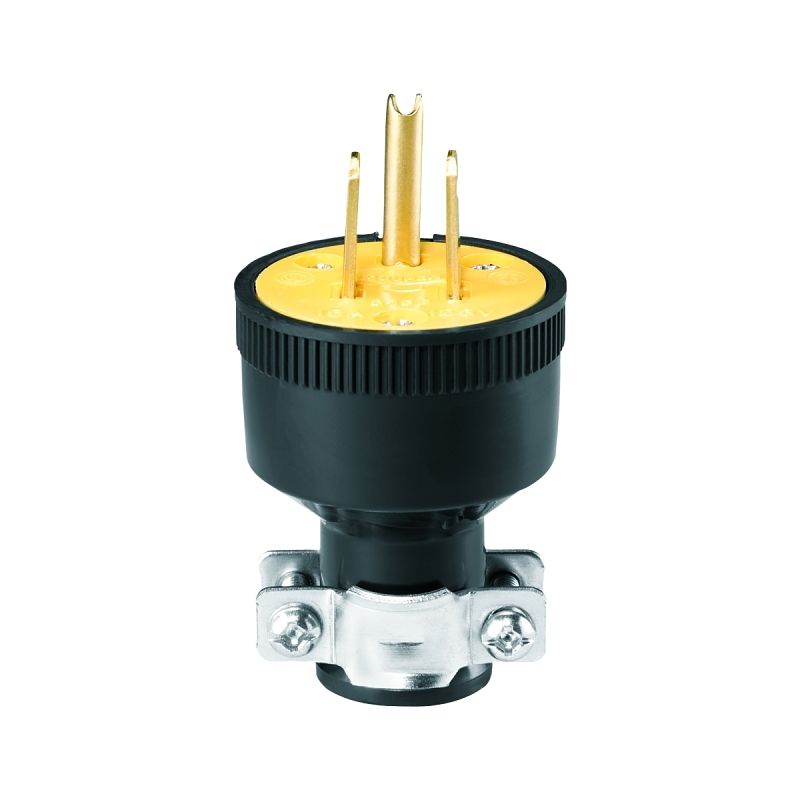

Eaton 1709 15A-1 Grounded Plug w/Cord Clamp 15A/125V

Product Description

The Eaton 1709-BOX is a straight blade electrical plug with solid brass blades firmly embedded in the body. It meets all UL 498 requirements and has a temperature rating of -20 to 60 deg C. The plug features combination slot/Phillips head mounting and terminal screws for easy installation.

• Solid brass plug blades are firmly embedded in body
• Thermoplastic rubber plugs and connectors maintain flexibility in extremely low temperatures
• Terminals in individual chambers to positively insulate conductors

Product Highlights

This grounded plug with cord clamp is ideal for electrical connections requiring durability and secure wiring.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1709 15A-1

Technical Specifications

• Brand: EATON
• MPN: 1709 15A-1
• Amperage: 15 A
• Voltage: 125 V
• Cord Diameter: 1/4 to 39/64 in
• NEMA: NEMA 5-15P
• Pole: 2-Pole
• Blade Type: Straight Blade
• Temperature Rating: -20 to 60 deg C
• Certifications: UL listed, CSA Certified
