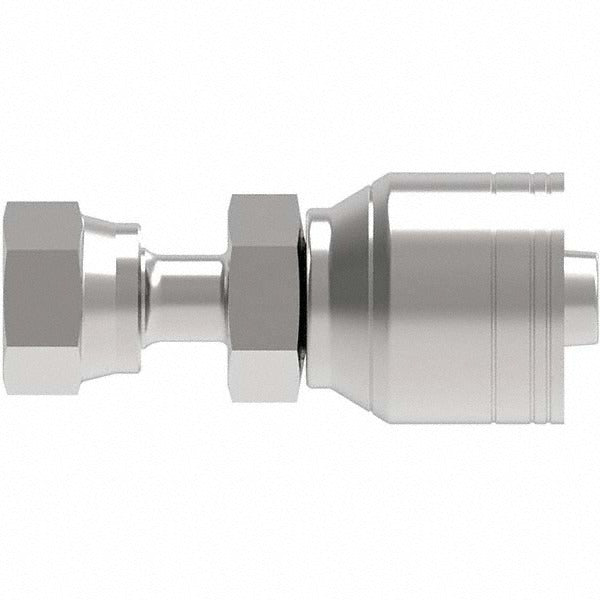

Eaton 16Z-S76-BG Female Ors Swivel Fitting 16mm 1-7/16-12

Product Description

The EATON 16Z-S76-BG is a female ORS swivel fitting designed for high-pressure hydraulic hose assemblies. It features a 16 mm hose size with a 1-7/16-12 thread and a FOR-SEAL shaft configuration. Constructed from steel, this fitting provides the durability and pressure resistance required in demanding fluid power systems. The swivel design allows the hose to be positioned without twisting during installation, reducing strain on the assembly. It is a single-piece fitting sold individually and suited for use in mobile equipment, industrial machinery, and hydraulic power units where reliable leak-free connections are critical.

This fitting is appropriate for hydraulic systems requiring ORS (O-Ring Seal) face seal connections, which are well-suited to high-pressure and high-vibration environments. The female swivel end connects to a male ORS port on cylinders, valves, manifolds, or other hydraulic components. It is typically assembled by hydraulic hose technicians, fluid power specialists, or heavy equipment mechanics working on new builds or field repairs.

Key Features

• Female ORS swivel configuration allows hose routing adjustment without twisting the assembly
• FOR-SEAL shaft type provides a reliable O-ring face seal for leak-free connections under pressure
• 16 mm hose size with 1-7/16-12 thread for precise, secure mating
• Steel construction for high-pressure hydraulic service and mechanical durability
• Single-piece per package with no minimum order beyond one unit

Compatibility

Designed as an OEM-style replacement female ORS swivel fitting for hydraulic hose assemblies requiring a 16 mm hose connection and a 1-7/16-12 thread specification.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before disconnecting or installing any fittings. Inspect the O-ring sealing surface on both the fitting and the mating port before assembly, and replace the O-ring if any wear or damage is present. Follow applicable fluid power standards and equipment manufacturer torque guidelines when making final connections.
