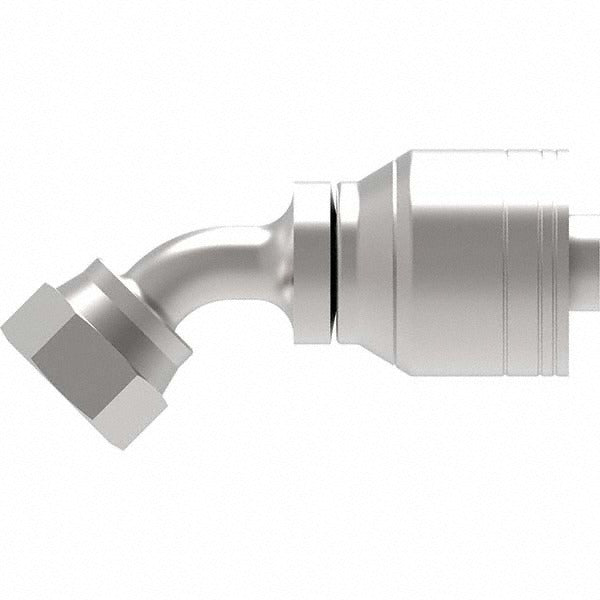

Eaton 16Z-L76-BG Female Ors Swivel 45 Elbow 16mm Steel

Product Description

The EATON 16Z-L76-BG is a female ORS swivel 45-degree elbow hydraulic hose fitting manufactured from steel. It connects a hydraulic hose to a port or component at a 45-degree angle, reducing strain on the hose line and helping route fluid passages in tight equipment layouts. The fitting uses a FOR-SEAL shaft type and carries a thread size of 1-7/16-12, which corresponds to a hose size of 16 mm. Hydraulic technicians and equipment maintenance crews install this type of fitting on mobile machinery, industrial presses, and stationary hydraulic power units where straight connections are not practical.

This fitting is suited for hydraulic systems requiring a female ORS swivel interface at a 45-degree offset. The swivel design allows the hose to be positioned and torqued independently of the fitting body, which simplifies installation on assemblies where hose rotation is restricted. Typical applications include agricultural equipment, construction machinery, and industrial hydraulic circuits where consistent sealing performance and repeatable assembly are required.

Key Features

• 45-degree elbow angle reduces hose stress and aids routing in confined spaces
• Female ORS swivel interface provides a reliable, leak-resistant connection
• FOR-SEAL shaft type ensures positive sealing at the thread interface
• Thread size of 1-7/16-12 matches standard hydraulic port specifications
• Steel construction for durability in high-pressure hydraulic service
• Hex size of 1-5/8 inches accommodates standard open-end or combination wrenches

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies requiring a 16 mm hose size with a 1-7/16-12 female ORS swivel 45-degree elbow connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Use a calibrated torque wrench with the appropriate 1-5/8-inch open-end or crowfoot adapter and follow the hydraulic fitting manufacturer torque specifications for the thread size and material. Inspect the ORS sealing surface and the swivel seat for nicks or contamination before assembly, and confirm the hose assembly is free of debris prior to connecting.
