Eaton 16Z-J16-BG Hydraulic Hose Male Pipe Rigid Fitting

Product Description

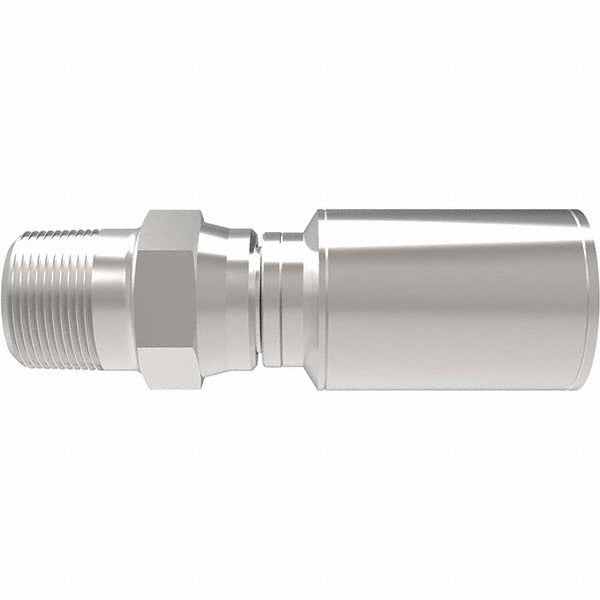

The EATON 16Z-J16-BG is a male pipe rigid fitting designed for hydraulic hose assemblies requiring a straight, threaded connection. Machined from steel, it accepts hose with a 1 inch inside diameter and a 1 inch outside diameter, corresponding to a hose size designation of 16. The male pipe thread (MPT) configuration follows a 1-11/2 thread size per SAE J1176, providing a reliable mechanical seal in high-pressure hydraulic circuits. Overall length is 3.88 inches and hex size is 1-1/2 inches. This type of fitting is typically installed by hydraulic system technicians and fluid power mechanics working on mobile equipment, industrial machinery, or similar pressurized fluid circuits.

The 16Z-J16-BG belongs to the EATON Z Series of hydraulic fittings. It is suited for use in straight-run hydraulic hose assemblies where a rigid male pipe end is required. The fitting is a direct-connect, non-swivel design intended for installations where the hose orientation is fixed at assembly and no rotational adjustment is needed post-installation. It is commonly found in industrial and mobile hydraulic applications requiring SAE J1176-compliant connections on 1 inch hose assemblies.

Key Features

• Male pipe rigid (MPT) straight fitting — no swivel, fixed orientation at assembly
• Steel construction for strength and durability in hydraulic service
• 1 inch hose inside diameter and 1 inch outside diameter (hose size 16)
• Thread size 1-11/2 inch, SAE J1176 compliant
• 3.88 inch overall length with 1-1/2 inch hex for standard wrench fitment
• Z Series design compatible with a broad range of EATON hydraulic hose products

Compatibility

Designed for use with the following EATON hose series: EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04) among others as specified by EATON.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic familiar with pressurized hose assembly procedures. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Use the 1-1/2 inch hex to torque the fitting with an appropriately sized wrench — do not use pipe wrenches that may damage the hex flats. Inspect thread condition and apply appropriate thread sealant or tape as required by the system specification before making up the connection.
