Eaton 16Z-A76-BG Female Ors Swivel 90 Elbow Hose Fitting

Product Description

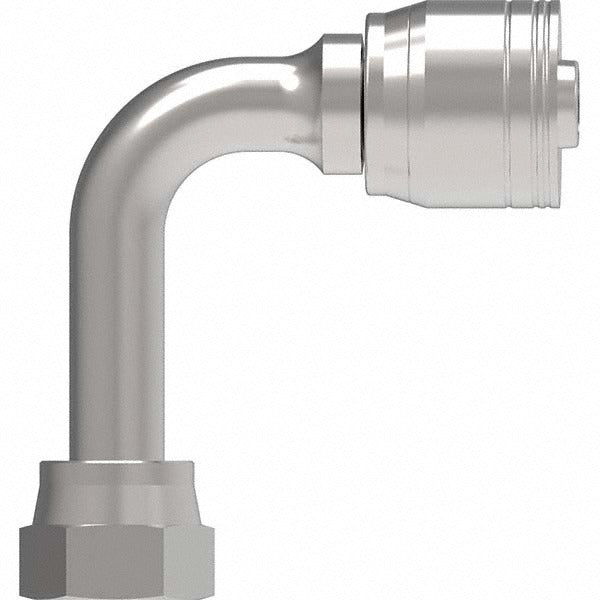

The EATON 16Z-A76-BG is a female ORS swivel long drop 90-degree elbow fitting designed for hydraulic hose assemblies. Constructed from steel with a FOR-SEAL shaft type, this fitting provides a leak-resistant connection at a right-angle orientation, making it well suited for routing hoses in tight or congested equipment bays. It accepts a 16 mm hose size and uses a 1-7/16-12 thread. The hex size is 1-5/8 inches, and the fitting weighs 1.37 pounds. Hydraulic technicians and fluid power mechanics rely on this style of swivel elbow when fixed-position straight fittings would create excessive hose stress or bending at the connection point.

This fitting is intended for hydraulic hose assemblies operating in mobile equipment, industrial machinery, and similar high-pressure fluid power systems. The long drop design provides additional clearance between the hose end and the mating port, which is useful in installations where mounting surfaces or adjacent components restrict normal elbow clearances. It is sized for use with 16 mm hydraulic hose and installs into ports with 1-7/16-12 ORS thread forms.

Key Features

• Female ORS swivel long drop 90-degree elbow configuration for flexible hose routing
• FOR-SEAL shaft type for reliable sealing at the thread interface
• 16 mm hose size compatibility
• 1-7/16-12 thread size for ORS port connections
• 1-5/8 inch hex for standard wrench installation
• Steel construction for durability in hydraulic service environments

Compatibility

Designed as an OEM-style replacement fitting for hydraulic hose assemblies using 16 mm hose with 1-7/16-12 ORS female swivel thread connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Use a calibrated torque wrench and follow the equipment manufacturer or fitting supplier torque specifications for ORS swivel fittings of this thread size. Inspect the ORS seal and mating port face for damage or contamination before assembly.
