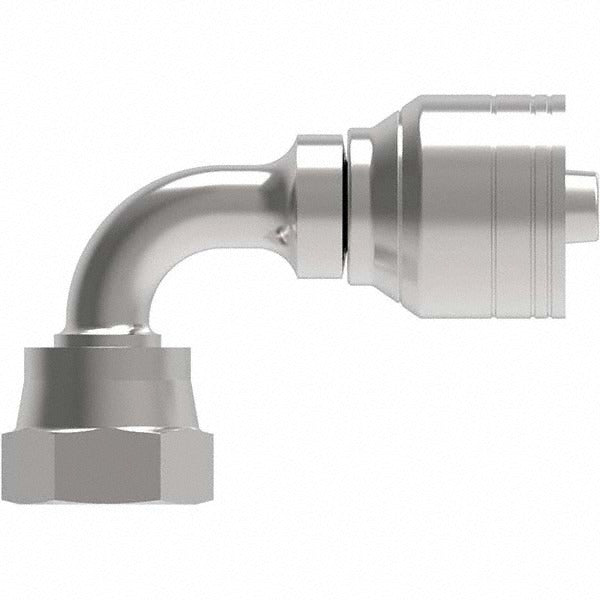

Eaton 16Z-A36-BG Female Ors Swivel 90 Elbow 16mm Steel

Product Description

The EATON 16Z-A36-BG is a female ORS swivel short drop 90-degree elbow fitting designed for hydraulic hose assemblies. This steel fitting connects a 16 mm hose to a 1-7/16-12 threaded port at a 90-degree angle, allowing routing in tight or confined hydraulic system layouts. The swivel design enables the hose to be oriented without twisting during installation. The FOR-SEAL shaft type ensures a reliable, leak-resistant connection at the ORS port face. Hydraulic technicians and fluid power specialists use this fitting in mobile equipment, industrial machinery, and commercial hydraulic systems where directional routing and thread integrity are critical.

This fitting is suited for hydraulic systems requiring a short drop 90-degree transition at the hose end. It is commonly used in mobile hydraulic equipment such as loaders, excavators, agricultural machinery, and industrial presses where routing hoses around obstructions or along frame rails is necessary. The 1-7/16-12 thread size is a standard SAE straight thread used across a wide range of hydraulic valves, cylinders, and manifolds. Steel construction provides the durability needed in high-pressure hydraulic environments.

Key Features

• Female ORS swivel interface with FOR-SEAL shaft type for secure, leak-resistant port connections
• Short drop 90-degree elbow configuration for routing hoses in confined spaces
• 16 mm hose size compatibility for standard hydraulic hose assemblies
• 1-7/16-12 SAE straight thread for broad port compatibility
• 1-5/8 inch hex size for standard wrench installation and torquing
• Steel construction for strength and durability in high-pressure hydraulic service

Compatibility

Designed as an OEM-style replacement fitting for hydraulic hose assemblies using 16 mm hose with 1-7/16-12 female ORS swivel short drop 90-degree elbow connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize the hydraulic system completely and allow it to cool before removing or installing any fittings. Use a calibrated torque wrench sized for the 1-5/8 inch hex to tighten the fitting to the system manufacturer's specified torque value. Inspect the ORS port face and sealing surfaces for damage or contamination before assembly, and verify that all connections are leak-free before returning the system to service.
