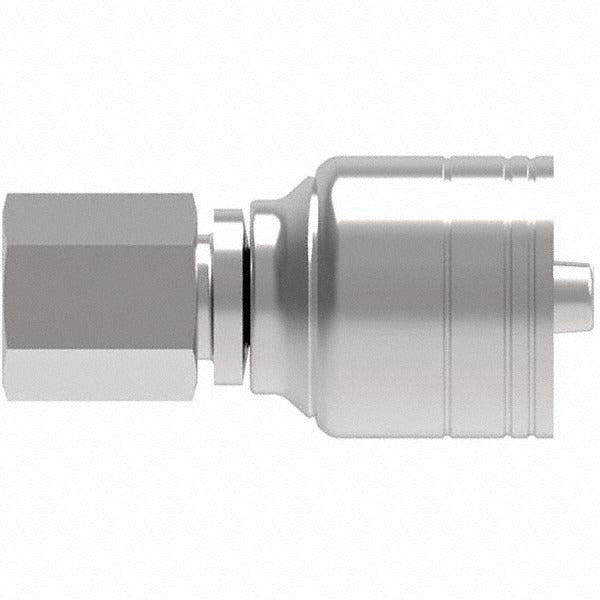

Eaton 16Z-80C-BG Hydraulic Hose Female Swivel Fitting Din 24

Product Description

The EATON 16Z-80C-BG is a female swivel DIN 24 seat heavy hydraulic hose fitting designed for use with 16 mm hose assemblies. Manufactured from steel, this metric fitting features an M42 x 2.00 thread size and a 1-31/32 inch hex size. The swivel design allows the fitting to rotate during installation, reducing hose twist and simplifying assembly in tight or awkward plumbing configurations. It is intended for installation by hydraulic system technicians and fluid power specialists working on industrial or mobile hydraulic equipment where DIN 24 cone connections are specified.

This fitting is suited for metric hydraulic hose assemblies requiring a heavy-duty DIN 24 seat female swivel end connection. Typical applications include mobile equipment, construction machinery, agricultural equipment, and industrial hydraulic systems where M42 x 2.00 metric threaded connections are used. The heavy fitting designation indicates suitability for higher-pressure circuit applications within the DIN 24 cone fitting standard. It is sold individually and is a direct replacement or service part for hydraulic hose assembly work.

Key Features

• Female swivel design reduces hose twist during installation and assembly
• DIN 24 seat heavy fitting for higher-pressure hydraulic circuit compatibility
• Steel construction provides durability in demanding hydraulic environments
• M42 x 2.00 metric thread size for precise, leak-resistant connections
• 1 inch hose diameter compatibility with 16 mm hose size designation
• 1-31/32 inch hex size accommodates standard hydraulic assembly tooling

Compatibility

Designed as an OEM-style replacement or service fitting for metric hydraulic hose assemblies using DIN 24 cone seat heavy female swivel end connections with a 16 mm hose size and M42 x 2.00 thread specification.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Use the correct open-end or combination wrench sized to the 1-31/32 inch hex to tighten the swivel nut; do not use pipe wrenches or adjustable pliers on hydraulic fittings. Inspect the DIN 24 cone seat and mating surfaces for damage or contamination before assembly to ensure a leak-free connection.
