Eaton 16Z-676-BG Hydraulic Hose Elbow 1-5/16-12 Sae

Product Description

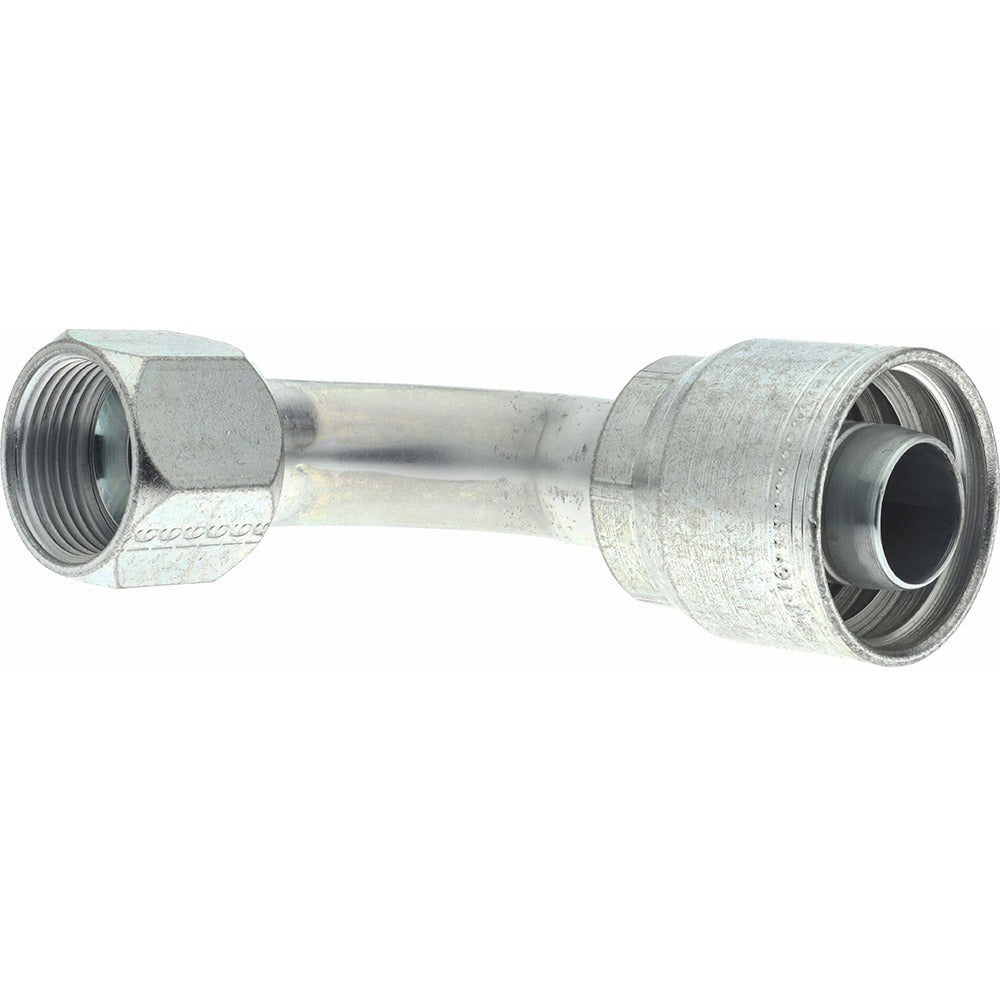

The EATON 16Z-676-BG is a hydraulic hose elbow fitting designed for high-pressure fluid conveyance in industrial and mobile hydraulic systems. It features a 1-5/16-12 SAE thread size and accommodates 1-inch hose diameter connections. The fitting is available in 45-degree elbow, 90-degree elbow, and long drop elbow configurations, giving technicians and hydraulic system assemblers multiple routing options within the same part family. A 1-1/2-inch hex size allows standard wrench engagement for proper torque during assembly. At 1.09 pounds, it is a solid, full-bodied fitting suited for demanding fluid power applications.

This fitting is used in hydraulic plumbing installations across agricultural equipment, construction machinery, industrial presses, and mobile power units. It is typically installed by hydraulic system technicians and millwrights when routing hose assemblies around obstructions or changing hose direction in tight equipment bays. The SAE straight thread configuration provides a reliable, leak-resistant seal when paired with compatible SAE O-ring face seal or straight thread O-ring port ends.

Key Features

• 1-5/16-12 SAE straight thread for secure, leak-resistant connections
• Fits 1-inch hydraulic hose diameter
• Available in 45-degree elbow, 90-degree elbow, and long drop elbow shapes for flexible routing
• 1-1/2-inch hex size for standard wrench engagement during installation
• Compact, durable construction suited for high-pressure hydraulic service

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic systems utilizing 1-inch hose with 1-5/16-12 SAE threaded ports.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Always depressurize and bleed down the hydraulic system fully before removing or installing any fittings. Use a torque wrench with the appropriate 1-1/2-inch hex engagement and follow the equipment manufacturer or NFPA hydraulic fitting torque specifications for the thread size. Inspect O-rings for damage before assembly and replace if any nicks or deformation are present.
