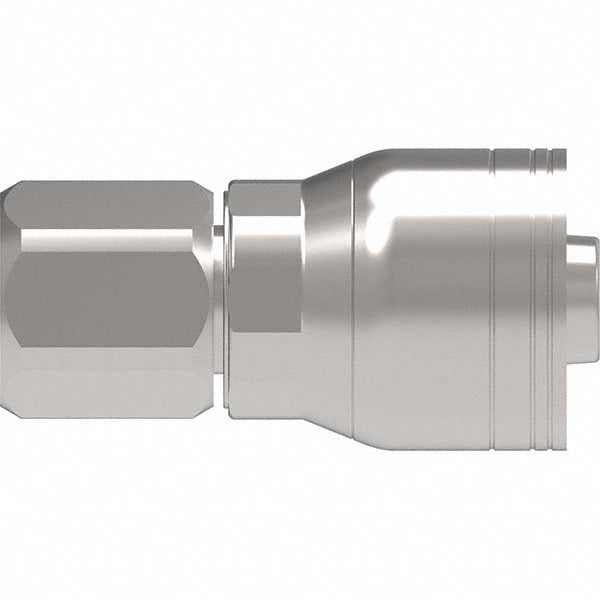

Eaton 16Z-616-BG Female Jic 37 Swivel Fitting 1 in Steel

Product Description

The EATON 16Z-616-BG is a female JIC 37-degree swivel fitting designed for hydraulic hose assemblies in industrial and mobile hydraulic systems. Built from steel with a straight shape and threaded connection, this fitting accepts 1-inch inside diameter hose and delivers a secure, leak-resistant joint at the swivel interface. It conforms to SAE J1176 and is part of the EATON Z Series fitting line. Overall length is 3.29 inches, and the fitting weighs 0.78 pounds. Licensed HVAC, plumbing, and hydraulic technicians working on fluid power systems will find this a reliable OEM-style replacement component.

This fitting is suited for hydraulic hose assemblies requiring a 1-5/16-12 thread size and a 1-inch hose inside diameter. It is used in both industrial and mobile equipment hydraulic circuits where a female JIC 37-degree swivel connection is specified. The Z Series designation indicates a replacement or web-only SKU category within the EATON fitting family, making it appropriate for service and maintenance applications across a broad range of compatible hose assemblies.

Key Features

• Female JIC 37-degree swivel design provides a reliable, vibration-resistant connection
• Steel construction for durability in high-pressure hydraulic service
• SAE J1176 compliant for standardized fitment
• Straight shape simplifies inline hose routing
• Thread size 1-5/16-12 matches common hydraulic component ports
• Overall length of 3.29 inches suits tight installation envelopes

Compatibility

Compatible with the following EATON hose series and part numbers: EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, H1981 (-04).

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid power system service. Depressurize and isolate the hydraulic circuit fully before disconnecting any fittings or hose assemblies. Inspect the swivel and thread interfaces for damage before assembly and ensure thread engagement is correct for the 1-5/16-12 specification. Follow SAE J1176 guidelines and equipment manufacturer service procedures when torquing and pressure-testing the completed assembly.
