Eaton 16Z-366-BG Bspp Swivel Straight Hose Fitting 1 in

Product Description

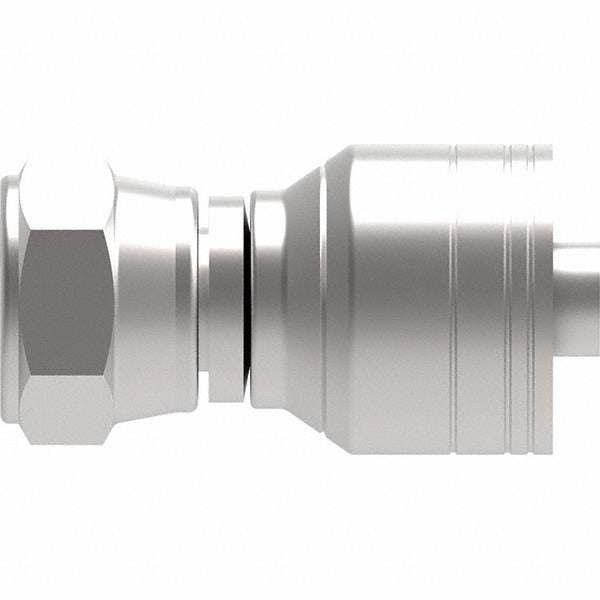

The EATON 16Z-366-BG is a BSPP 60 Cone Female Swivel Straight hydraulic hose fitting machined from steel. It connects hydraulic hoses to BSPP-threaded ports using a 60-degree cone seating surface that reduces leak paths under pressure. The swivel design allows the fitting body to rotate during installation, which simplifies routing and prevents hose twist. The threaded connection follows G 1-11 thread specifications. The fitting measures 2.44 inches in overall length with a 1-inch hose inside diameter and a 1-5/8-inch hex size. It is part of the Eaton Z Series and conforms to SAE J1176. Hydraulic technicians and fluid-power mechanics are the primary installers.

This fitting is suited for use in industrial and mobile hydraulic systems where BSPP straight-thread hose terminations are required. It is designed for use with Eaton hose series including EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04). These applications span both stationary hydraulic power units and mobile equipment platforms.

Key Features

• BSPP 60-degree cone female swivel straight configuration for leak-resistant hose termination
• G 1-11 thread size for direct engagement with BSPP-threaded ports
• Swivel body rotation prevents hose twist during installation and torquing
• Steel construction for durability in high-pressure hydraulic environments
• Conforms to SAE J1176 standard
• Part of the Eaton Z Series, compatible with a broad range of Eaton hose assemblies

Compatibility

Designed for use with Eaton hose series EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04) as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid-power mechanic. Depressurize and bleed down the hydraulic system completely before removing or installing any fittings. Inspect the mating port threads and seating surface for damage before assembly. Ensure proper thread engagement and do not overtighten, as the 60-degree cone seat provides the primary seal.
