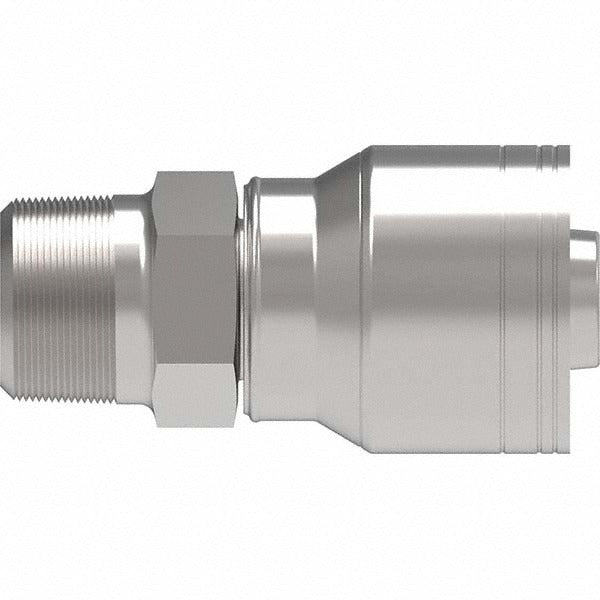

Eaton 16Z-116-BG Hydraulic Hose Male Pipe Rigid Fitting

Product Description

The EATON 16Z-116-BG is a male pipe rigid fitting designed for hydraulic hose assemblies. It provides a straight, threaded MPT connection between a hydraulic hose and a mating port. Constructed from steel, this fitting is built for the pressure and wear demands common in hydraulic systems found in industrial and mobile equipment applications. With a 1-inch hose inside diameter, 1-inch hose outside diameter, and an overall length of 3.22 inches, it is sized for Series Z hose assemblies. Licensed HVAC techs, plumbers, and fluid power technicians working on hydraulic circuits will find this a direct OEM-style replacement fitting.

This fitting is suited for use in hydraulic systems requiring a straight male pipe rigid connection at a 1-inch hose interface. The 1-3/8 inch hex size allows for standard wrench installation. It carries a thread size of 1-11-1/2 NPT and meets SAE J1176 standards. Typical applications include fluid power circuits in industrial machinery, construction equipment, and mobile hydraulic systems where a reliable rigid-pipe-to-hose transition is needed.

Key Features

• Straight male pipe rigid fitting with MPT threaded connection
• 1-inch hose inside diameter and 1-inch hose outside diameter
• Steel construction for high-pressure hydraulic service
• Overall length of 3.22 inches with a 1-3/8 inch hex for wrench engagement
• Meets SAE J1176 standard
• Series Z designation for compatibility with specified EATON hose series

Compatibility

Designed for use with the following EATON hose series: EC110; EC115; EC118; EC210; EC215; H0105 (-06 thru -12, -20); H0106 (-04 thru -10); H104; H115 (-04 thru -20); H116 (-04, -06, -08); H145; H145R; H1571 (-12 only); H1776 (-04 thru -20); H1777 (-04, -06, 08); H1812 (-04 thru -20); H190; H190H; H1981 (-04).

Installation Notes

Installation should be performed by a qualified fluid power technician or pipefitter familiar with hydraulic system service. Depressurize and relieve all hydraulic pressure from the system before removing or installing any fittings. Use a calibrated torque wrench and apply thread sealant appropriate for hydraulic service per system specifications. Follow applicable industry standards and equipment manufacturer guidelines during assembly.
