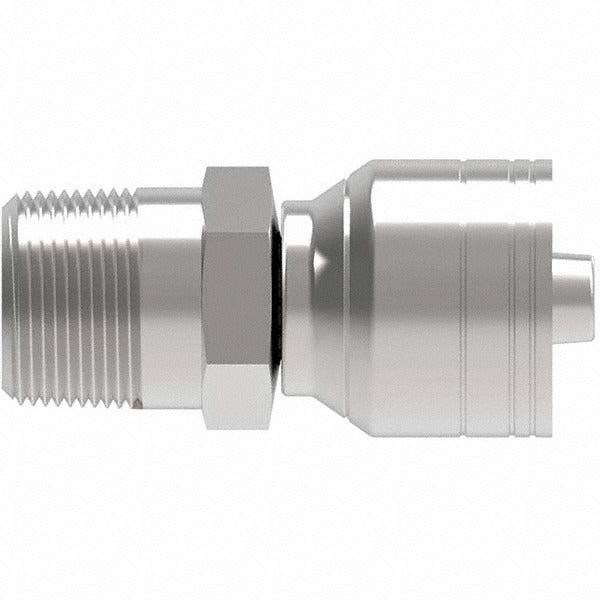

Eaton 16Z-112-BG Hydraulic Hose Male Pipe Rigid Fitting

Product Description

The EATON 16Z-112-BG is a male pipe rigid fitting designed for hydraulic hose assemblies in fluid power systems. It provides a fixed, non-swivel connection between a hydraulic hose and a male pipe thread port. Constructed from steel, this fitting accepts a 16 mm hose and features a 3/4-14 MPT thread. The 1-3/8 inch hex size accommodates standard hydraulic wrenches for secure installation. Hydraulic technicians and fluid power mechanics use this fitting when assembling or replacing hose runs in mobile, industrial, or stationary hydraulic systems requiring a rigid-end termination.

This fitting is suited for hydraulic hose assemblies where a rigid male pipe connection is required at the hose end. It is commonly installed in mobile equipment, industrial machinery, and stationary power units that operate with 16 mm hydraulic hose lines. The 3/4-14 thread matches standard NPT-style pipe ports found on pumps, cylinders, valves, and manifolds. Fluid power technicians select this style when system routing demands a non-articulating hose end connection.

Key Features

• Steel construction for durability in high-pressure hydraulic service
• 16 mm hose size with 3/4 inch hose diameter compatibility
• 3/4-14 MPT thread for connection to standard pipe-thread ports
• Rigid (non-swivel) fitting design provides a fixed hose-end termination
• 1-3/8 inch hex size for use with standard hydraulic assembly tooling

Compatibility

Designed as an OEM-style replacement rigid male pipe fitting for 16 mm hydraulic hose assemblies using 3/4-14 MPT threaded ports.

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic system mechanic. Depressurize and relieve all hydraulic system pressure before disconnecting or installing any hose fitting. Use the correct hex wrench size on the fitting hex to avoid rounding or damaging the fitting body. Follow applicable industry standards for hydraulic hose assembly torque and inspection procedures.
