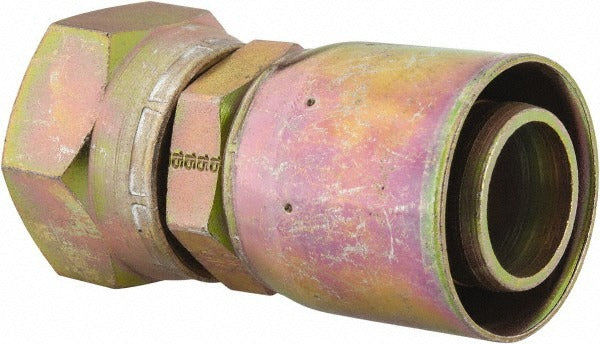

Eaton 16E-616 Hydraulic Hose Female Swivel Fitting

Product Description

The EATON 16E-616 is a female swivel fitting designed for hydraulic hose assemblies in fluid power systems. It features a straight body with a 1-5/16-12 SAE thread and accommodates 1-inch hose diameter connections. The swivel design allows the hose to rotate during assembly without twisting, reducing stress at the connection point. This type of fitting is used by hydraulic technicians and equipment mechanics to build or repair high-pressure hydraulic lines in mobile and industrial equipment applications.

The 16E-616 is suited for straight-run hydraulic connections where a female swivel end is required at the hose termination. It is commonly installed on hydraulic cylinders, pumps, valves, and manifolds in agricultural, construction, and industrial machinery. The 1-5/16-12 SAE thread size is a standard designation in fluid power plumbing, making this fitting widely applicable across many system configurations.

Key Features

• Female swivel design allows hose rotation during makeup without twisting the hose body
• Straight body shape for direct inline connections
• 1-5/16-12 SAE thread for compatibility with standard fluid power ports
• Accepts 1-inch hydraulic hose diameter
• 1-1/4 inch hex size for standard wrench torquing during installation

Compatibility

Designed as an OEM-style hydraulic swivel fitting for 1-inch hose assemblies using 1-5/16-12 SAE threaded connections in fluid power systems.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Before servicing any hydraulic line, relieve system pressure completely and follow all applicable safety procedures. Use a proper open-end or flare-nut wrench on the 1-1/4 inch hex to avoid rounding. Do not over-torque the swivel nut, as this can damage the sealing surface and restrict swivel movement.
