Product Description

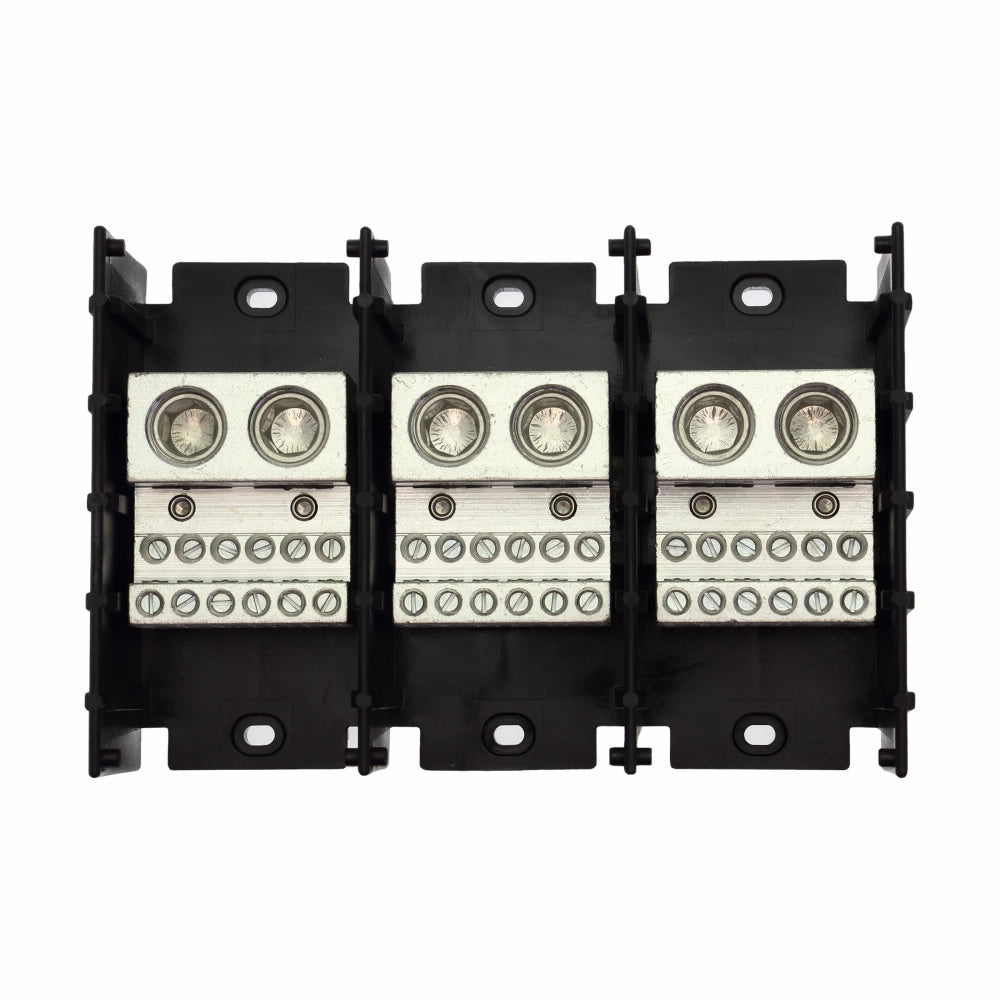

The Eaton 16530-3 is a BUS 3P power distribution block designed for electrical management. This product supports various wire sizes for both line and load connections.
- Rated for 600 VAC/VDC and up to 760 A
- Compatible with 6 AWG to 500 kcmil copper or aluminum line
- Features two primary and twelve secondary connections for flexibility
Product Highlights
This power distribution block allows for organized panel wiring for electrical systems.
Product Information
Standard Information
-
Manufacturer: Eaton
-
Manufacturer Part Number: 16530-3
Technical Specifications
-
Amperage Rating: 760 A
-
Application: Power Distribution, Electrical Assemblies, Panels and EOEMs Applications
-
Color: Black
-
Dimensions: 8.48 in L x 5.5 in W x 2.93 in H
-
Material: Thermoplastic
-
Number of Poles: 3
-
Primary Connections Pole: 2
-
Secondary Connection Pole: 12
-
Short Circuit Current Rating: 10 kA
-
Voltage Rating: 600 VAC/VDC
-
Standards/Approvals: CE Certified, CSA File No. 53787, RoHS Compliant, UL 1059/508A File No. E221592 Guide XCFR2, UL 94 V-0 Flammability Rating
