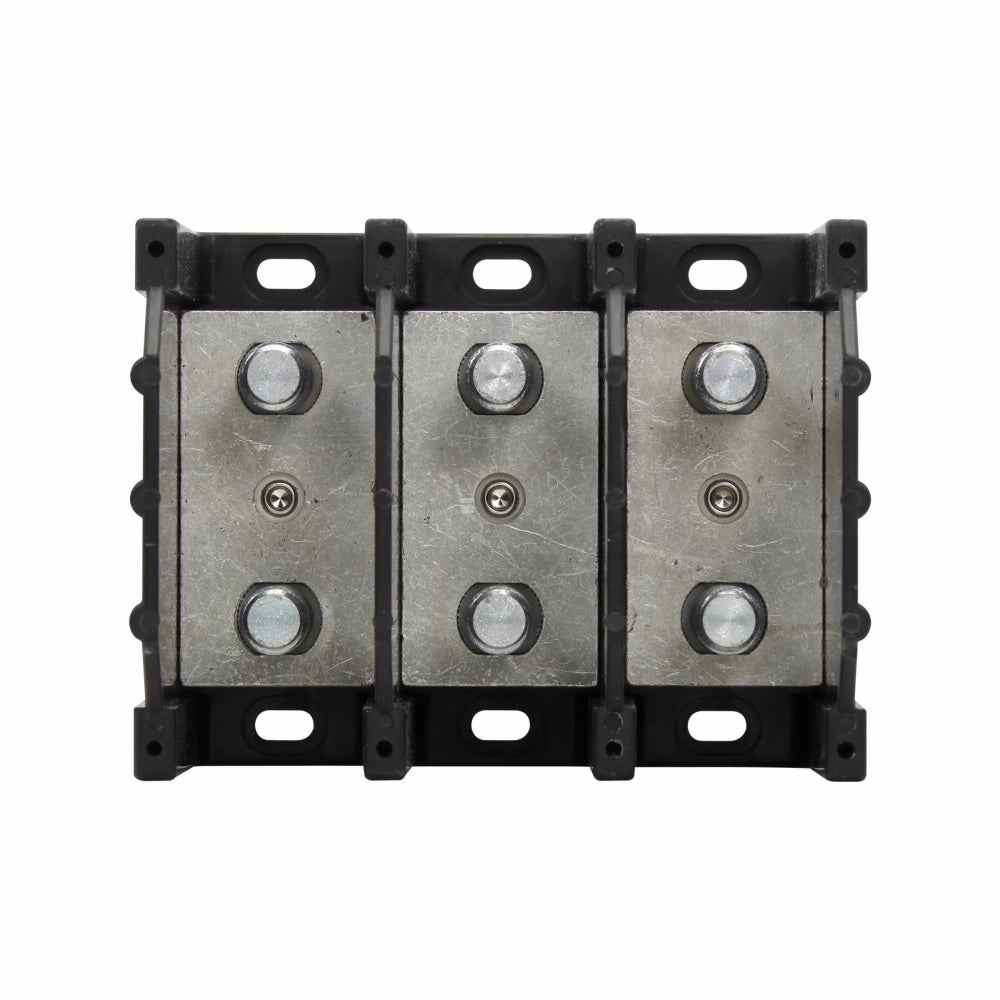

Eaton 16394-3 BUS FUSE PANEL 600 VAC/VDC 400 A 3 Poles

Product Description

The Eaton 16394-3 BUS FUSE PANEL is designed for power distribution. This barrier power terminal block works at a voltage of six hundred volts alternating current or direct current and handles up to four hundred amperes. It features three poles and utilizes aluminum and thermoplastic materials to withstand various applications.

• Voltage rating of 600 VAC/VDC
• Amperage rating of 400 A
• UL recognized for industrial control panels

Product Highlights

This terminal block is ideal for electrical assemblies and panels, ensuring reliability and safety in operation.

Product Information

Standard Information

• Product Name: Bussmann 16394-3 Barrier Power Terminal Block
• Manufacturer: Eaton

Technical Specifications

• Type: Barrier
• Color: Black
• Dimensions: 5.21 inches L x 4 inches W x 3.32 inches H
• Material: Aluminum/Thermoplastic
• Poles: 3
• Primary Connection: 1/2-13 x 1-1/16 inches Stud
• Secondary Connection: 1/2-13 x 1-1/16 inches Stud
• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 400 A
• Short Circuit Current Rating: 10 kA
• Standards: CE Certified, RoHS Compliant, UL 1059/508A
