EATON 16394-1 BUSS 16394-1 TERM BLOCK POWER

Product Description

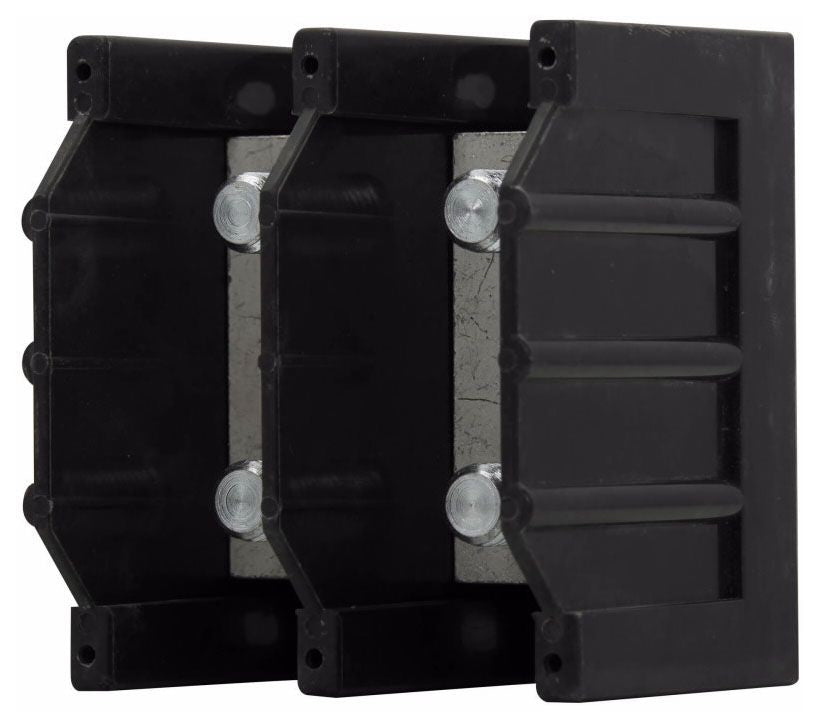

The EATON 16394-1 Bussman Fuse is designed for efficient electrical connections. This stud block type barrier features a voltage rating of six hundred volts AC/DC and a current rating of four hundred amps.

• Voltage Rating: 600 Volt AC/DC
• Current Rating: 400 Amp
• Number of Poles: 1

Product Highlights

The EATON Buss 16394-1 is suitable for a variety of applications, ensuring reliable electrical performance and safety in dual wire port and ferrule terminal installations.

Product Information

Standard Information

• Manufacturer: EATON
• UPC: 05171227161

Technical Specifications

• Primary Openings per Pole: 1
• Primary Opening Wire Size: 1/2 Inch-13 TPI x 1-1/16 Inch Stud
• Secondary Openings per Pole: 1
• Secondary Opening Wire Size: 1/2 Inch-13 TPI x 1-1/16 Inch Stud
• Temperature Rating: 75 Deg C
• Connector Material: Tin-Plated Aluminum
• Approval: UL, CSA
• RoHS Compliant: Yes
• Short Circuit Current Rating: 10 Kiloamp
