Eaton 16376-3 Terminal Block 420 A 5.21 in L x 4 in W x 3.32 in H

Product Description

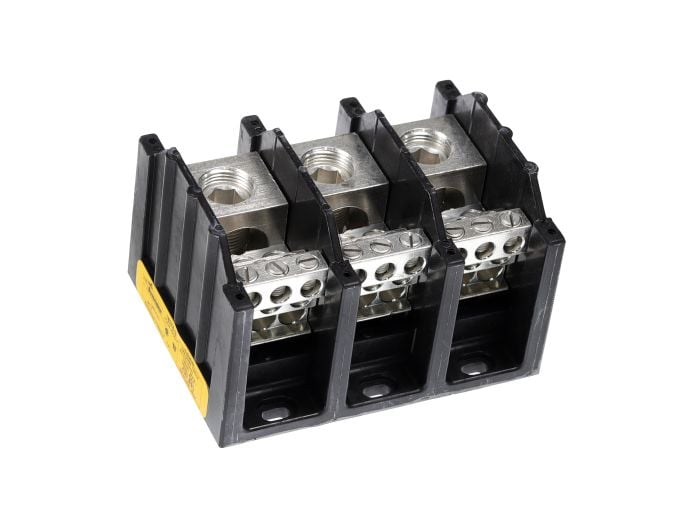

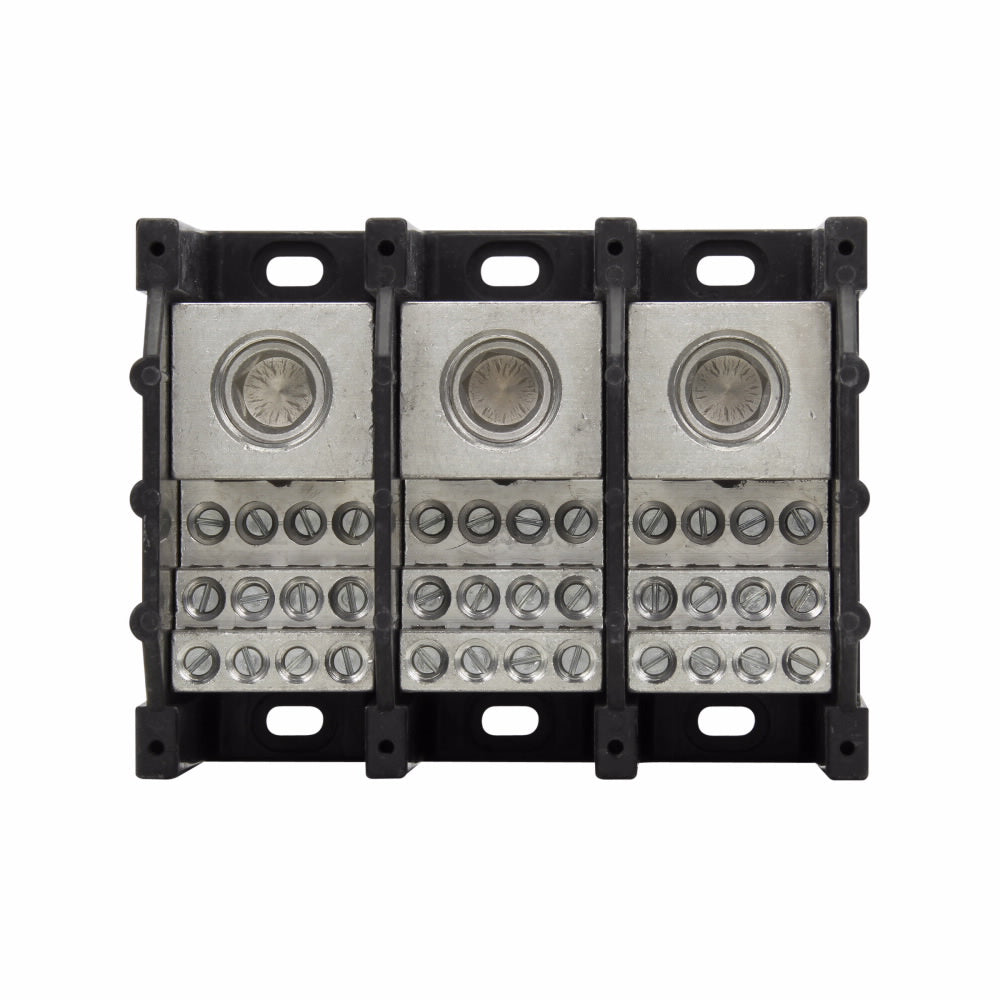

The EATON 16376-3 is a Bussmann series power distribution block designed for efficient electrical power management. It features a three-pole configuration with a voltage rating of 600 Vac and 600 Vdc, and a current rating of 420 A. This block has a Short-Circuit Current Rating (SCCR) of 10 kA, ensuring safety in industrial control panels. Constructed with a molded thermoplastic base and tin-plated aluminum connectors, it offers durability and reliable performance.

• Rated for 600 Vac and 600 Vdc with a 420 A current capacity.
• Features a three-pole design and a 10 kA Short-Circuit Current Rating (SCCR).
• Constructed with a durable molded thermoplastic base and tin-plated aluminum connectors.

Product Highlights

This power distribution block is suitable for industrial control panels, offering robust power management with high voltage and current ratings.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 16376-3
• Country of Origin: Mexico

Technical Specifications

• Type: Power Distribution Block
• Voltage Rating: 600 Vac, 600 Vdc
• Current Rating: 420 A
• Poles: Three-pole
• SCCR: 10 kA
• Base Material: Molded Thermoplastic
• Connector Material: Tin-plated aluminum
• Application: Electrical Assemblies, Panels and OEMs Applications
• Dimensions: 5.21 in L x 4 in W x 3.32 in H
• Primary Connections per Pole: 1
• Secondary Connections per Pole: 9
• Series: 163
• Standards/Approvals: CE Certified, CSA 6228-01/53787, RoHS Compliant, UL 1059, UL 508A, UL 94-V-0 Flammability Rating, UL File No. E221592, UL Guide XCFR2, RU Listed, UR
• Wire Range: 2 AWG-600 KCMIL (Copper/Aluminum) Line, (6) 14-2 AWG (Copper) or 8-2 AWG (Aluminum) or (3) 14-1/0 AWG (Copper) or 8-1/0 AWG (Aluminum) Load
• ECCN: EAR99
• UNSPSC: 39121629
• Shape: Rectangular
• Product Series: Series 16XXX
• Electrical Connection: Box Lug/Box Lug
• Mounting: Panel Mount
• Cover Included: No
