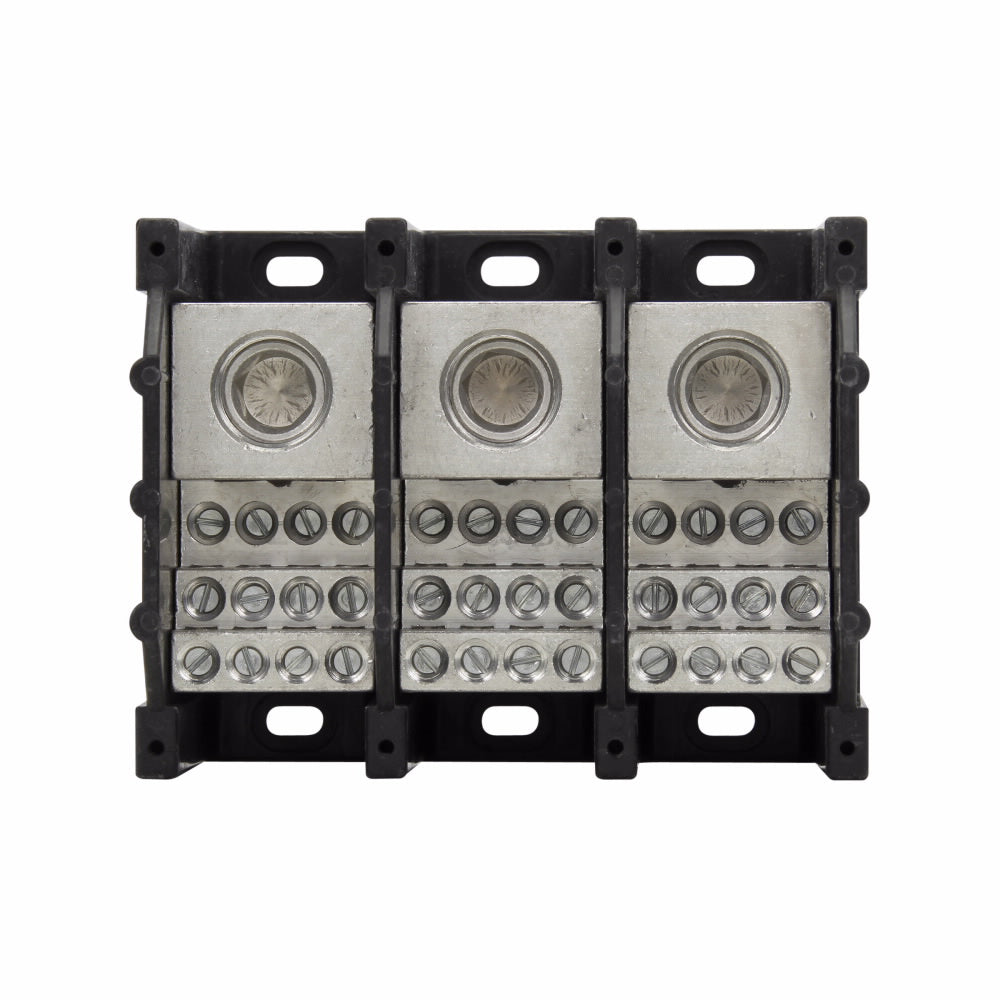

Eaton 16375-3 BUS 3P Power Distr. & Term. Block 600-2 to 4-14AWG (1)

Product Description

The Eaton 16375-3 is a power distribution block designed for electrical assemblies and panels. This block is capable of handling up to 420 amperes and operates at a voltage rating of 600 VAC/VDC. The device features three poles with multiple connection options, allowing for versatile installation and wiring. Its compact design promotes efficient space usage in control panels.

• Rated for 600 VAC/VDC with a 420 A amperage capacity
• Accommodates wire from 2 AWG to 600 kcmil
• Includes 1 primary and 12 secondary connections

Product Highlights

This is a UL Recognized power distribution block that enhances flexibility in wiring configurations.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171227151

Technical Specifications

• Amperage Rating: 420 A
• Application: Electrical Assemblies, Panels and OEMs Applications
• Color: Black
• Dimensions: 5.21 in L x 4 in W x 3.32 in H
• Finish: Tin Plated
• Material: Aluminum/Thermoplastic
• Number of Poles: 3
• Primary Connections Pole: 1
• Secondary Connection Pole: 12
• Short Circuit Current Rating: 10 kA
• Standards/Approvals: CE Certified, CSA 6228-01/53787, RoHS Compliant, UL 1059, UL 508A
• Voltage Rating: 600 VAC/VDC
