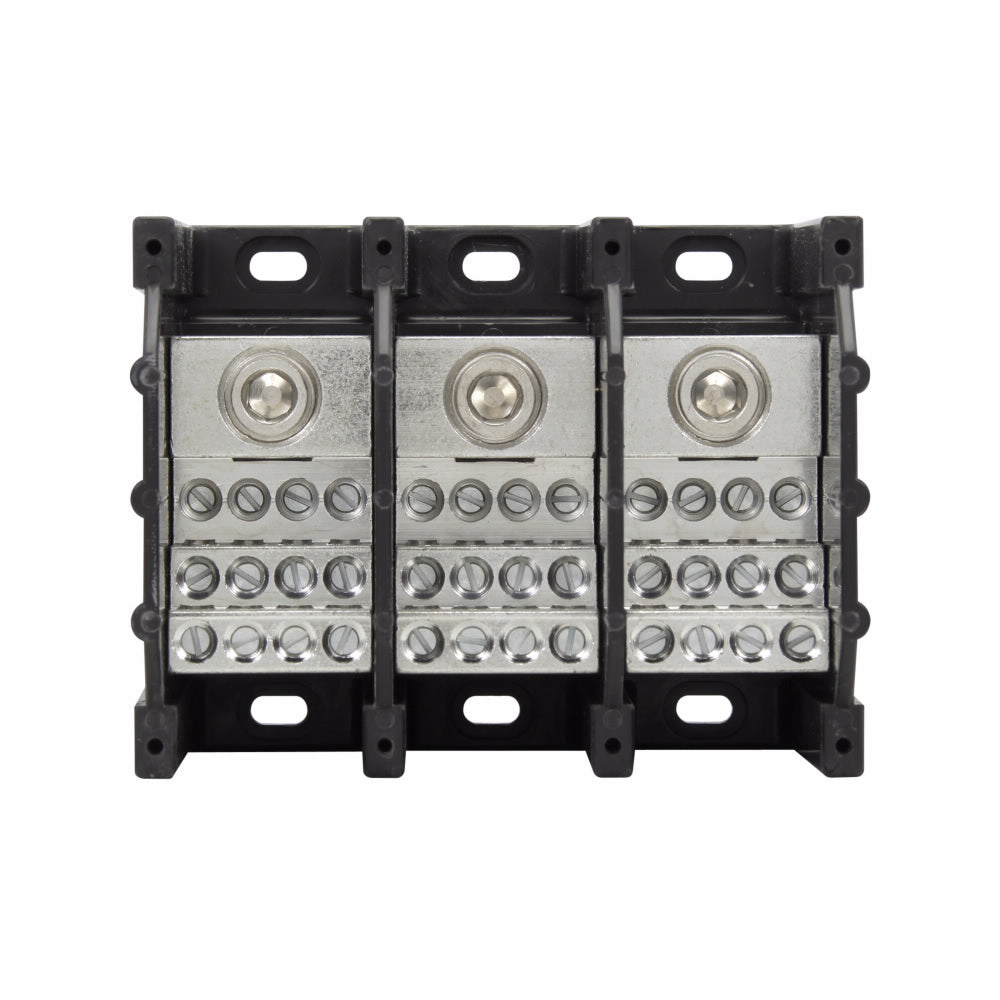

Eaton 16370-3 BUS 3P POWER DISTR & TERM BLOCK 350-6 TO 4-14AWG

Product Description

The Eaton 16370-3 is a power distribution block designed for safe and efficient electrical management. This barrier-style block is rated for 600 VAC/VDC and supports a current rating of 310 Amperes across three poles.

• Rated for use with copper and aluminum lines from 6 AWG to 350 kcmil
• Features twelve secondary connections per pole
• UL recognized under UL 1059 and suitable for industrial control panels

Product Highlights

This power distribution block is ideal for electrical assemblies, panels, and equipment applications. Its durable construction allows for reliable performance in demanding environments.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171227136

Technical Specifications

• Amperage Rating: 310 A
• Voltage Rating: 600 VAC/VDC
• Color: Black
• Type: Barrier
• Material: Aluminum/Thermoplastic
• Dimensions: 5.21 in L x 4 in W x 3.32 in H
• Number of Poles: 3
• Primary Connections Pole: 1
• Secondary Connection Pole: 12
• Short Circuit Current Rating: 100 kA
• Standards/Approvals: CE Certified, UL 1059/508A
