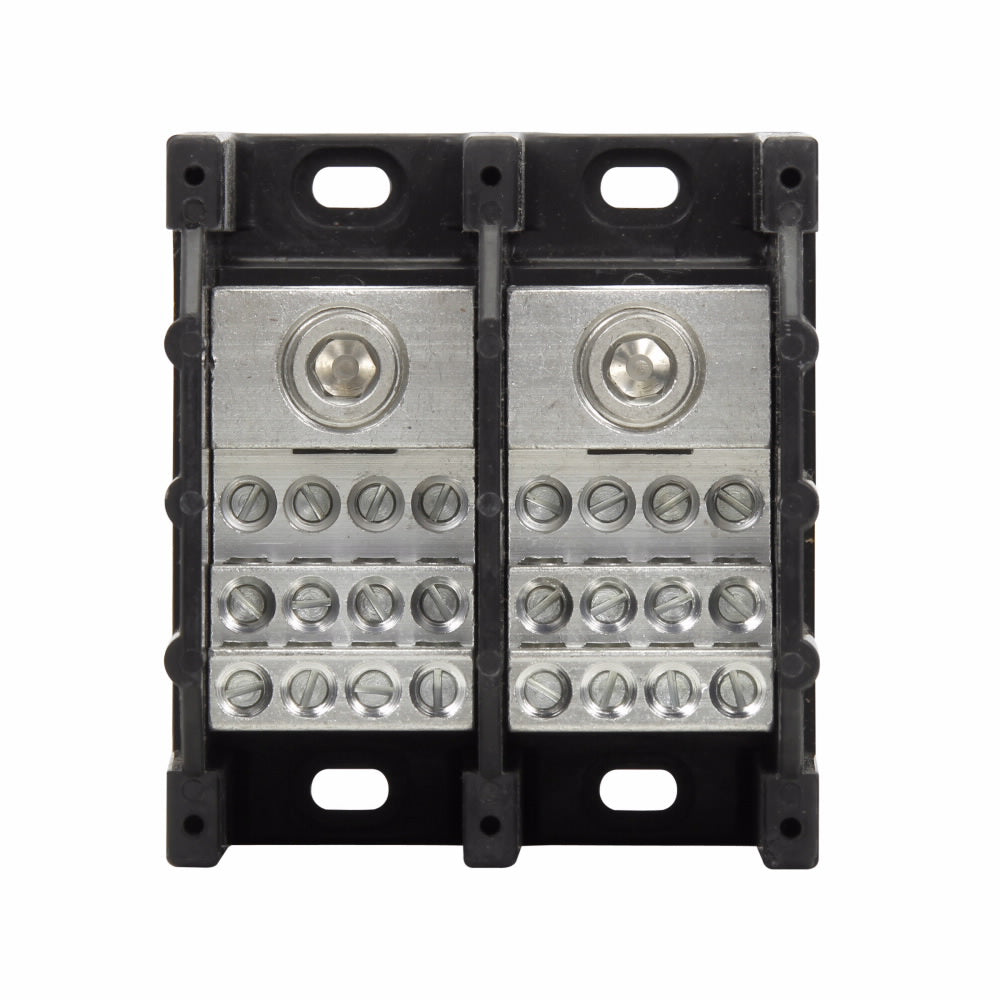

Eaton 16370-2 BUS 2P Power Distr. & Term. Block 350-6 To 4-14AWG

Product Description

The Eaton 16370-2 is a barrier power distribution block designed for reliable electrical connections. It operates at 600 VAC/VDC and supports a current rating of 310 Amperes. This distribution block serves two poles, featuring one primary and twelve secondary connections per pole, suitable for 6 AWG to 350 kcmil copper or aluminum line conductors and 14 to 4 AWG load wires. The block is constructed from aluminum and thermoplastic materials with a tin-plated finish.

• Rated for 600 VAC/VDC and 310 Amps
• Accommodates wire sizes from 6 AWG to 350 kcmil
• Suitable for electrical panel applications

Product Highlights

The Eaton 16370-2 power distribution block is recognized for its safety features and flexibility for panel wiring management. It is UL recognized under UL 1059 standards, making it ideal for industrial control panels.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171227135

Technical Specifications

• Amperage Rating: 310 A
• Application: Electrical Assemblies, Panels and EOEMs Applications
• Color: Black
• Dimensions: 3.6 inches L x 4 inches W x 3.32 inches H
• Finish: Tin Plated
• Bussmann Series: 163
• Material: Aluminum/Thermoplastic
• Number of Poles: 2
• Primary Connections Pole: 1
• Secondary Connection Pole: 12
• Short Circuit Current Rating: 100 kA
• Standards/Approvals: CE Certified, CSA File No. 53787, RoHS Compliant, UL 1059/508A, UL 94 V-0 Flammability Rating
• Voltage Rating: 600 VAC/VDC
