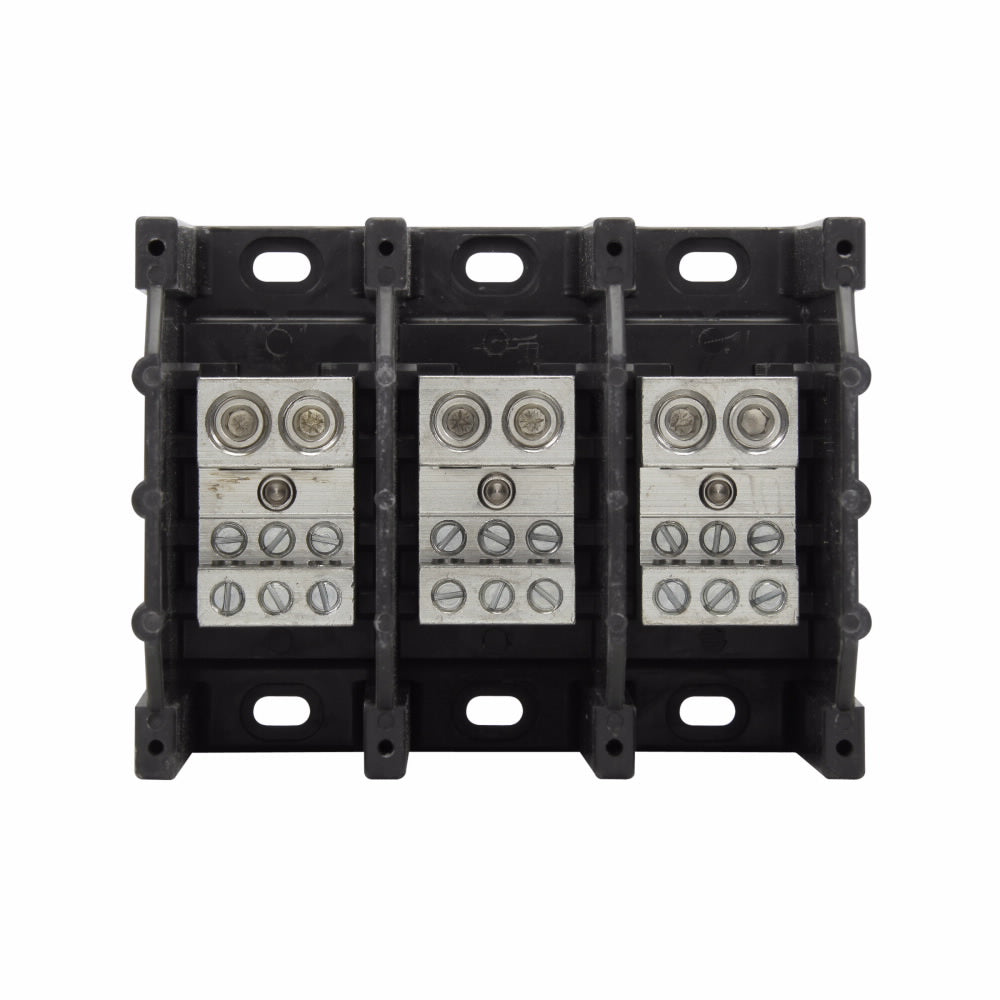

EATON 16325-3 TERMINAL BLOCKS
EATON Eaton 16325-3 BUSS 3P POWER DISTR. & TERM. BLOCK 600 VAC/VDC (1)
EATON 16325-3 TERMINAL BLOCKS
Eaton 16325-3 BUSS 3P POWER DISTR. & TERM. BLOCK 600 VAC/VDC (1)

Eaton 16325-3 BUSS 3P POWER DISTR. & TERM. BLOCK 600 VAC/VDC (1)

EATON
Brand: EATON
SKU: 16325-3
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Eaton 16325-3 is a BUSS 3 pole power distribution block designed for electrical applications. It operates at a voltage of 600 VAC/VDC and has an amperage rating of 350 A. This product supports wire sizes from fourteen to two ought AWG on the line side and from fourteen to four AWG on the load side.

  • Voltage rated for 600 VAC/VDC.
  • 350 A amperage rating for reliable power distribution.
  • Supports wire sizes from 2/0 AWG to 14 AWG, enhancing versatility.

Product Highlights

This power distribution block features a barrier design and is built from aluminum and thermoplastic materials. The product is UL recognized, making it suitable for use in industrial control panels. It is designed for ease of wiring with multiple connections available, including primary and secondary connections.

Product Information

Standard Information

  • Manufacturer: Eaton
  • UPC: 05171214875
Technical Specifications
Type
Barrier
Amperage Rating
350 A
Voltage Rating
600 VAC/VDC
Number of Poles
3
Primary Connections per Pole
2
Secondary Connections per Pole
6
Short Circuit Current Rating
10 kA
Dimensions
5.21 inches L x 4 inches W x 3.32 inches H
Material
Aluminum/Thermoplastic
Color
Black
Finish
Tin Plated
Application
Electrical Assemblies, Panels and OEMs Applications
Standards/Approvals
CE Certified, CSA 6228-01/53787, RoHS Compliant, UL 1059, UL 508A, UL 94-V-0 Flammability Rating
