Product Description

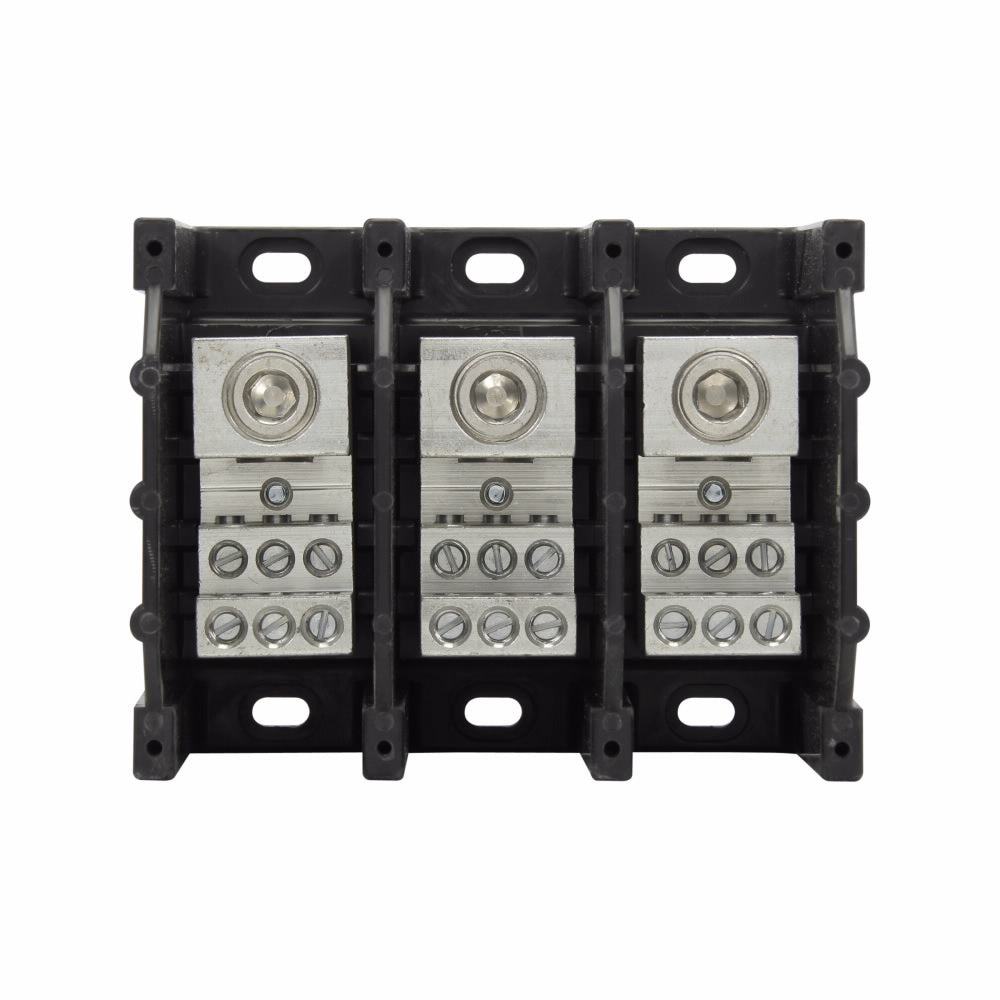

Bussmann 16323-3 is a barrier power distribution block designed for effective electrical management. This unit is rated for 600 VAC/VDC and supports an amperage of 310 A. Features include three poles, with primary connections for each pole and six secondary connections.
- 6 AWG to 350 kcmil copper/aluminum line
- 14 to 4 AWG for copper connections
- 12 to 4 AWG for aluminum load connections
Product Highlights
Utilizes a robust design to offer reliable performance in various applications including electrical assemblies and panel setups.
Product Information
Standard Information
-
Manufacturer: Eaton
-
UPC: 05171214873
Technical Specifications
-
Amperage Rating: 310 A
-
Voltage Rating: 600 VAC/VDC
-
Number of Poles: 3
-
Material: Aluminum/Thermoplastic
-
Color: Black
-
Dimensions: 5.21 in L x 4 in W x 3.32 in H
-
Finish: Tin Plated
-
Short Circuit Current Rating: 100 kA
-
Standards/Approvals: CE Certified, RoHS Compliant, UL 1059/508A
-
Application: Electrical Assemblies, Panels and EOEMs Applications
