Product Description

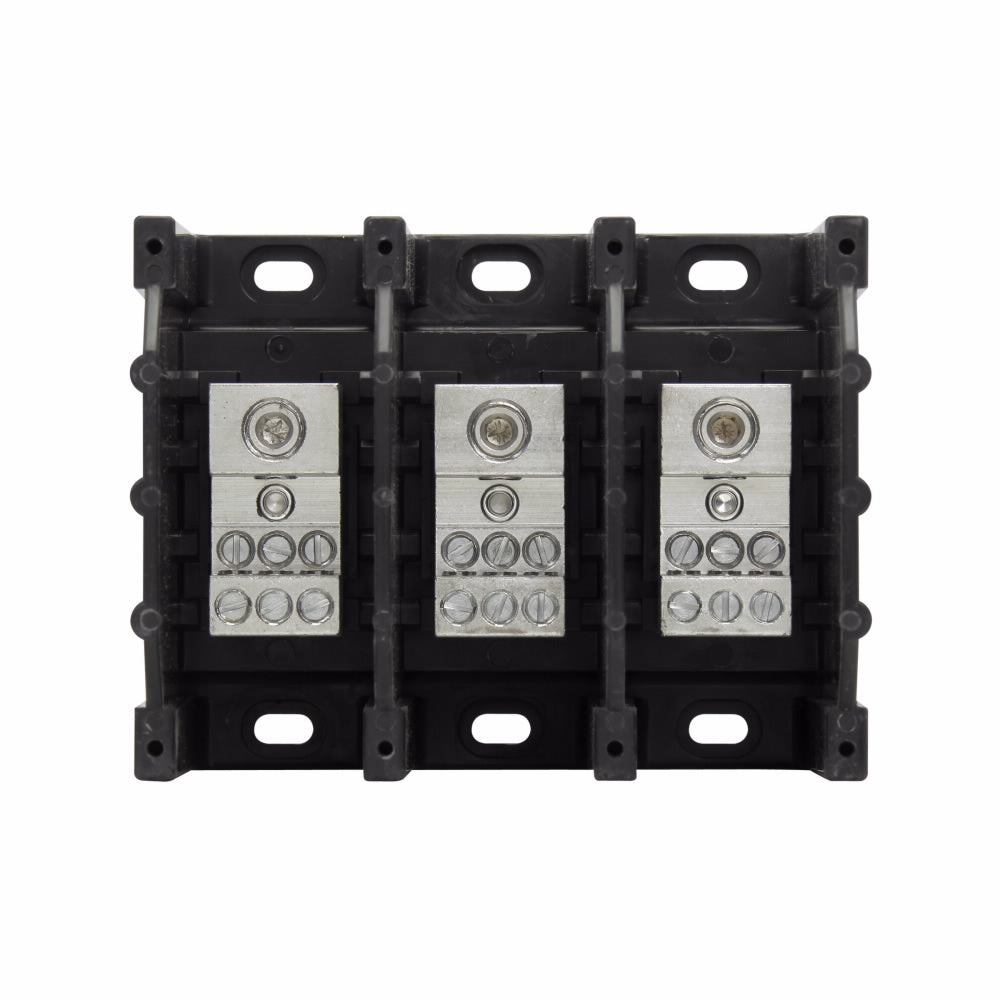

The Eaton 16321-3 BUS 3P Power Distribution Block is designed for efficient electrical management in various applications. This product supports up to 175 amperes and is rated for both AC and DC use up to 600 volts. Its three-pole configuration allows for multiple connections, making it ideal for panel wiring and electrical assemblies.
- 175 amp current rating
- Supports wire sizes from 14 to 2/0 AWG
- Compliant with UL standards for safety
Product Highlights
This barrier power distribution block is constructed from aluminum and thermoplastic materials, ensuring durability and safety in demanding environments. The block features a molded design with screw connections for primary and secondary applications, promoting ease of installation.
Product Information
Standard Information
-
Manufacturer: Eaton
-
Manufacturer Part Number: 16321-3
Technical Specifications
-
Amperage Rating: 175 A
-
Application: Electrical Assemblies, Panels and OEM Applications
-
Color: Black
-
Dimensions: 5.21 in L x 4 in W x 3.32 in H
-
Finish: Tin Plated
-
Material: Aluminum/Thermoplastic
-
Number of Poles: 3
-
Primary Connections Pole: (1) Screw
-
Secondary Connection Pole: (6) Screw
-
Series: 163
-
Short Circuit Current Rating: 100 kA
-
Standards/Approvals: CSA Certified, RoHS Compliant, UL Listed
-
Voltage Rating: 600 VAC/VDC
