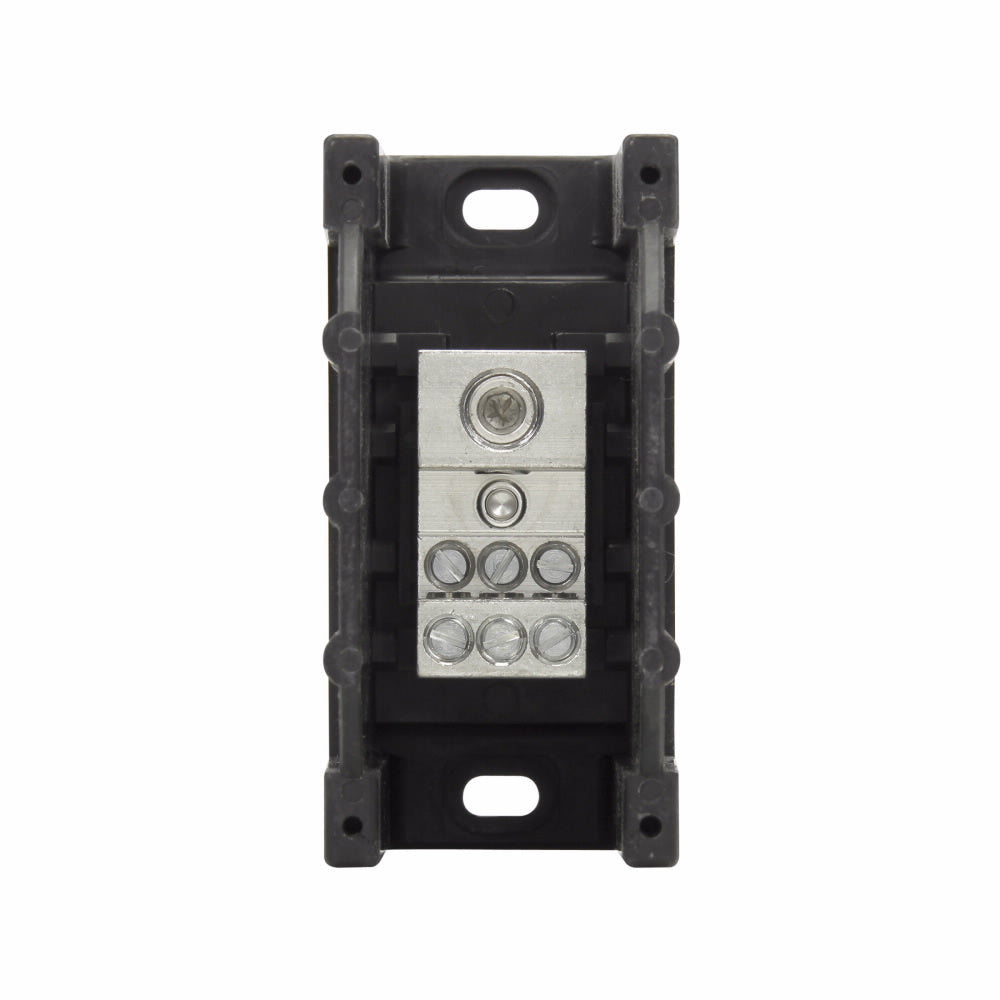

Eaton 16321-1 BUS 1P POWER DISTR. & TERM. BLOCK 2/0-14 TO 4-14AWG

Product Description

The Bussmann 16321-1 is a barrier power distribution block designed for 600 VAC/VDC applications. It supports an amperage rating of 175 A and features a single pole configuration. The block accommodates various wire gauges, specifically 14 to 2/0 AWG for copper and 8 to 2/0 AWG for aluminum. This product is essential for electrical assemblies, panels, and OEM applications, ensuring efficient distribution of power while meeting safety standards.

• Supports 14 to 2/0 AWG copper and 8 to 2/0 AWG aluminum connections.
• Features six secondary connections for versatile wiring options.
• Rated for a 200 kA short circuit current, enhancing operational safety.

Product Highlights

This power distribution block is compact and made from aluminum and thermoplastic, with a tin-plated finish. It is built to handle demanding electrical tasks in various applications.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: 16321-1

Technical Specifications

• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 175 A
• Number of Poles: 1
• Primary Connections Pole: 1
• Secondary Connection Pole: 6
• Series: 163
• Short Circuit Current Rating: 200 kA
• Dimensions: 1.98 in L x 4 in W x 3.32 in H
