Product Description

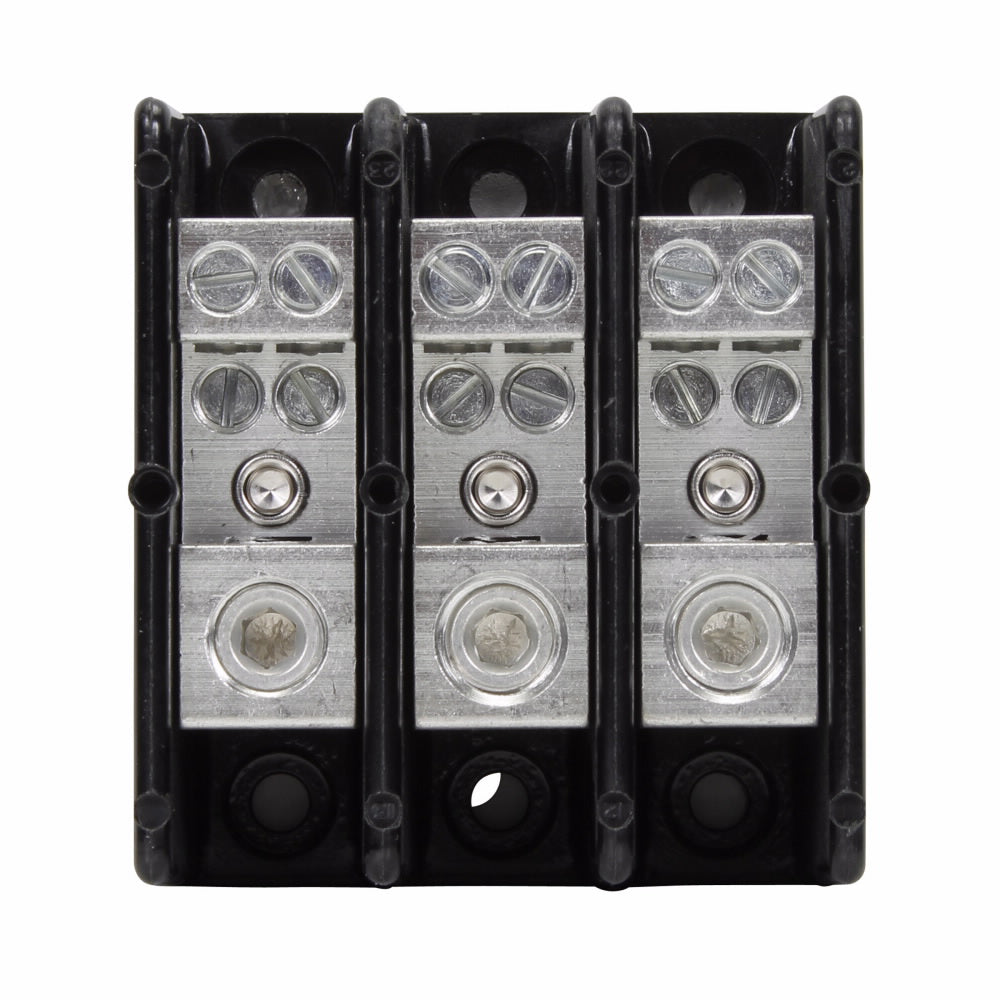

The Eaton 16220-3 BUS Powerblock is designed for effective power distribution and terminal block applications. It operates on 600 VAC/VDC and has a maximum current rating of 175 Amps. This 3-pole block features one primary screw connection and four secondary screw connections per pole. It accommodates wire sizes ranging from 14 to 2/0 AWG Copper and 8 to 2/0 AWG Aluminum. The product is ideal for various applications, including power distribution and electrical assemblies.
- Rated for dual wire port application.
- Ten kilovolt-ampere short circuit current rating.
- Constructed from thermoplastic material.
Product Highlights
The Eaton 16220-3 ensures secure connections and simplifies panel wiring. It meets various industry standards, offering high flexibility in design.
Product Information
Standard Information
-
Manufacturer: Eaton
-
UPC: 05171214927
Technical Specifications
-
Amperage Rating: 175 A
-
Application: Power Distribution, Electrical Assemblies, Panels and EOEMs Applications
-
Color: Black
-
Dimensions: 2.7 inches L x 2.88 inches W x 1.75 inches H
-
Manufacturer Part Number: 16220-3
-
Material: Thermoplastic
-
Number of Poles: 3
-
Primary Connections Pole: (1) Screw
-
Secondary Connection Pole: (4) Screw
-
Series: 162
-
Short Circuit Current Rating: 10 kA
-
Standards/Approvals: CE Certified, CSA Certified, RoHS Compliant, UL 1059
-
Type: Barrier
-
Voltage Rating: 600 VAC/VDC
