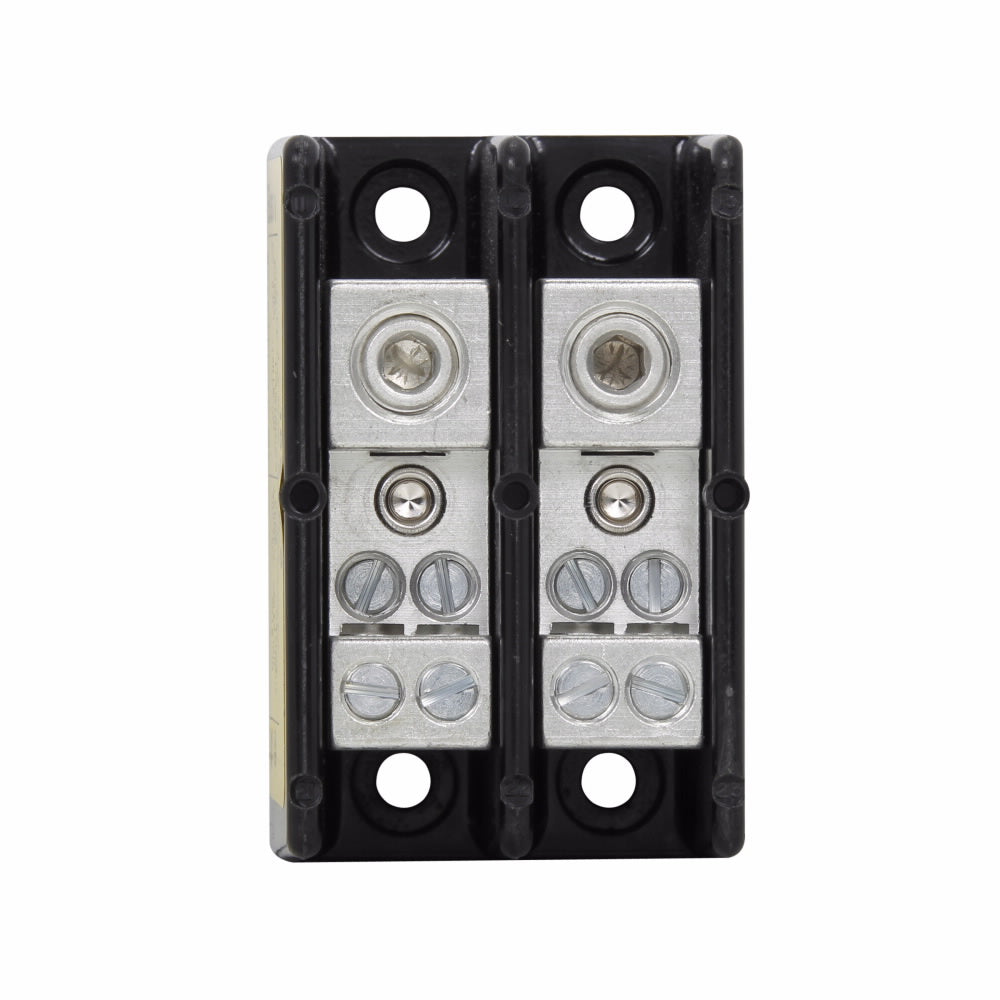

Eaton 16220-2 BUS 2P POWER DISTR. & TERM. BLOCK 2/0-14 TO 4-14AWG

Product Description

The Eaton 16220-2 BUS 2P Power Distribution Block offers reliable power distribution with a barrier design. It operates at 600 VAC/VDC and has a rating of 175 A. This unit is suitable for dual wire applications and provides various connection options for line and load sides.

• Rated for dual wire port application for flexible connections
• Includes specific wire range for optimal performance
• Molded thermoplastic base with a tin-plated aluminum connector

Product Highlights

This power distribution block is designed for use in panel wiring and electrical assemblies. It is UL recognized and ideal for various industrial applications.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171214868

Technical Specifications

• Amperage Rating: 175 A
• Application: Power Distribution, Electrical Assemblies, Panels and EOEMs Applications
• Color: Black
• Dimensions: 1.88 inches L x 2.88 inches W x 1.75 inches H
• Manufacturer Part Number: 16220-2
• Material: Thermoplastic
• Number of Poles: 2
• Series: 162
• Short Circuit Current Rating: 10 kA
• Standards/Approvals: CE Certified, CSA Certified, RoHS Compliant, UL 1059
• Type: Barrier
• Voltage Rating: 600 VAC/VDC
