Product Description

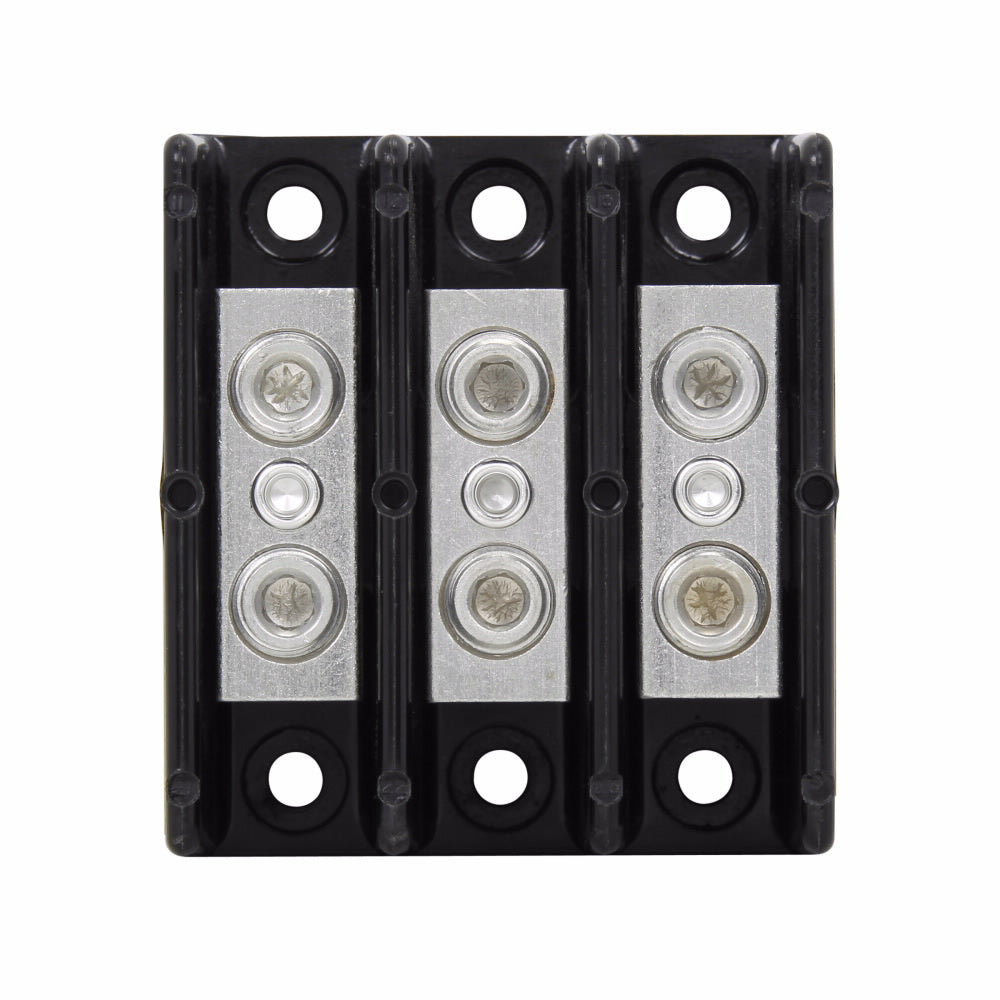

The Eaton 16204-3 BUSS Term Block is designed for reliable power distribution in electrical applications. This barrier power splicer block operates at 600 VAC/VDC and can handle currents up to 175 A. It features three poles and accommodates wire sizes from eight to two/zero AWG for both copper and aluminum connections.
- Rated for 600 VAC/VDC and 175 A
- Three poles with 8 to 2/0 AWG line/load wire connections
- 200 kA short circuit current rating
Product Highlights
This Bus Splicer Block provides flexible wiring options and complies with UL standards for safety and performance.
Product Information
Standard Information
-
Manufacturer: Eaton
-
Manufacturer Part Number: 16204-3
Technical Specifications
-
Amperage Rating: 175 A
-
Voltage Rating: 600 VAC/VDC
-
Short Circuit Current Rating: 200 kA
-
Application: Electrical Assemblies, Panels and EOEMs Applications
-
Material: Aluminum/Thermoplastic
-
Dimensions: 2.7 in L x 2.88 in W x 1.75 in H
-
Number of Poles: 3
-
Finish: Tin Plated
-
Standards/Approvals: CE Certified, CSA File No. 53787, RoHS Compliant, UL 1059/508A File No. E221592 Guide XCFR2, UL 94 V-0 Flammability Rating
