Product Description

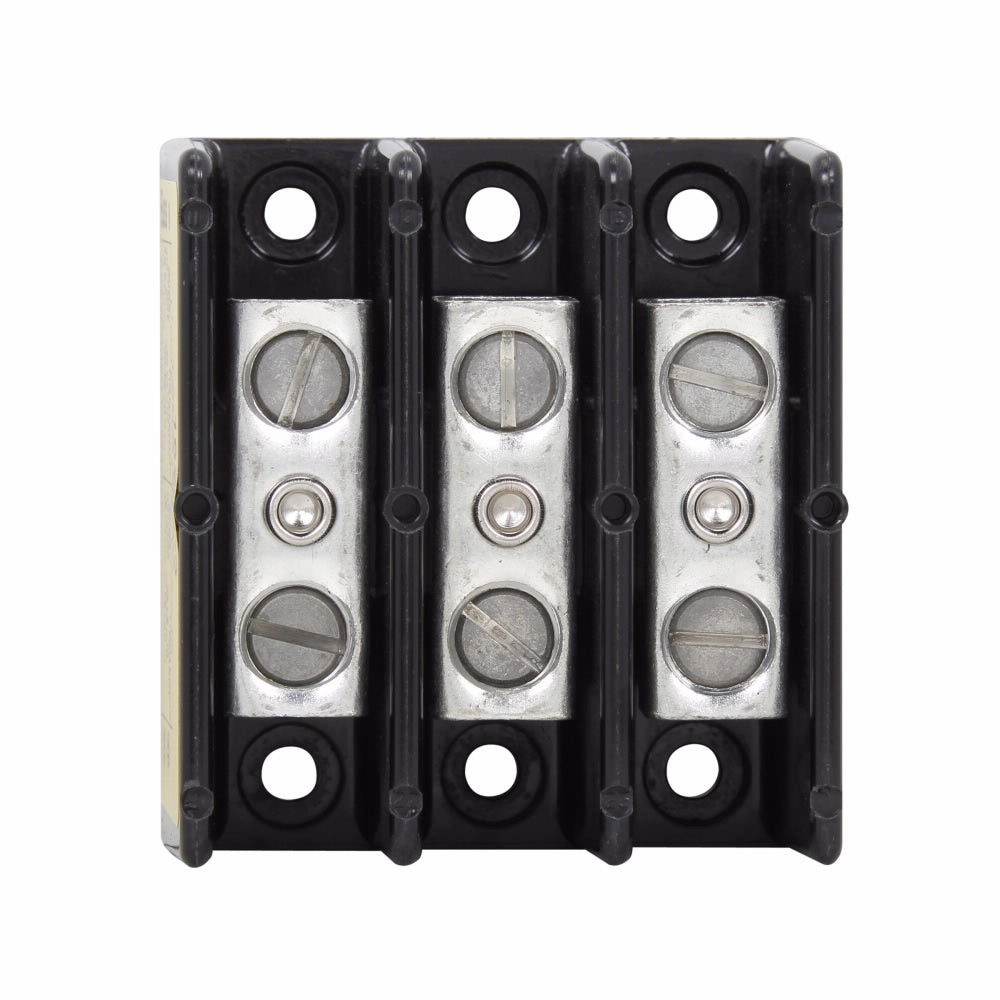

The Eaton Bussmann 16201-3 is a barrier power splicer block designed to provide reliable power distribution. This component is suitable for use in electrical assemblies and control panels. Its robust construction allows for handling voltages up to 600 VAC/VDC and a current rating of 150 A.
- Meets UL 1059 and UL 508A standards
- Compatible with 14 to 1/0 AWG copper wire
- 10 kA short circuit current rating
Product Highlights
This product is ideal for applications requiring power distribution in commercial and industrial settings. It features multiple pole configurations and is UL recognized, ensuring safety and reliability in various electrical configurations.
Product Information
Standard Information
-
Manufacturer: Eaton
-
UPC: 05171214856
Technical Specifications
-
Amperage Rating: 150 A
-
Application: Electrical Assemblies, Panels and EOEMs Applications
-
Color: Black
-
Dimensions: 2.7 in L x 2.88 in W x 1.75 in H
-
Finish: Tin Plated
-
Material: Aluminum/Thermoplastic
-
Number of Poles: 3
-
Series: 162
-
Short Circuit Current Rating: 10 kA
-
Voltage Rating: 600 VAC/VDC
-
Standards/Approvals: CE Certified, CSA File No. 53787, RoHS Compliant, UL 1059/508A File No. E221592 Guide XCFR2, UL 94 V-0 Flammability Rating
