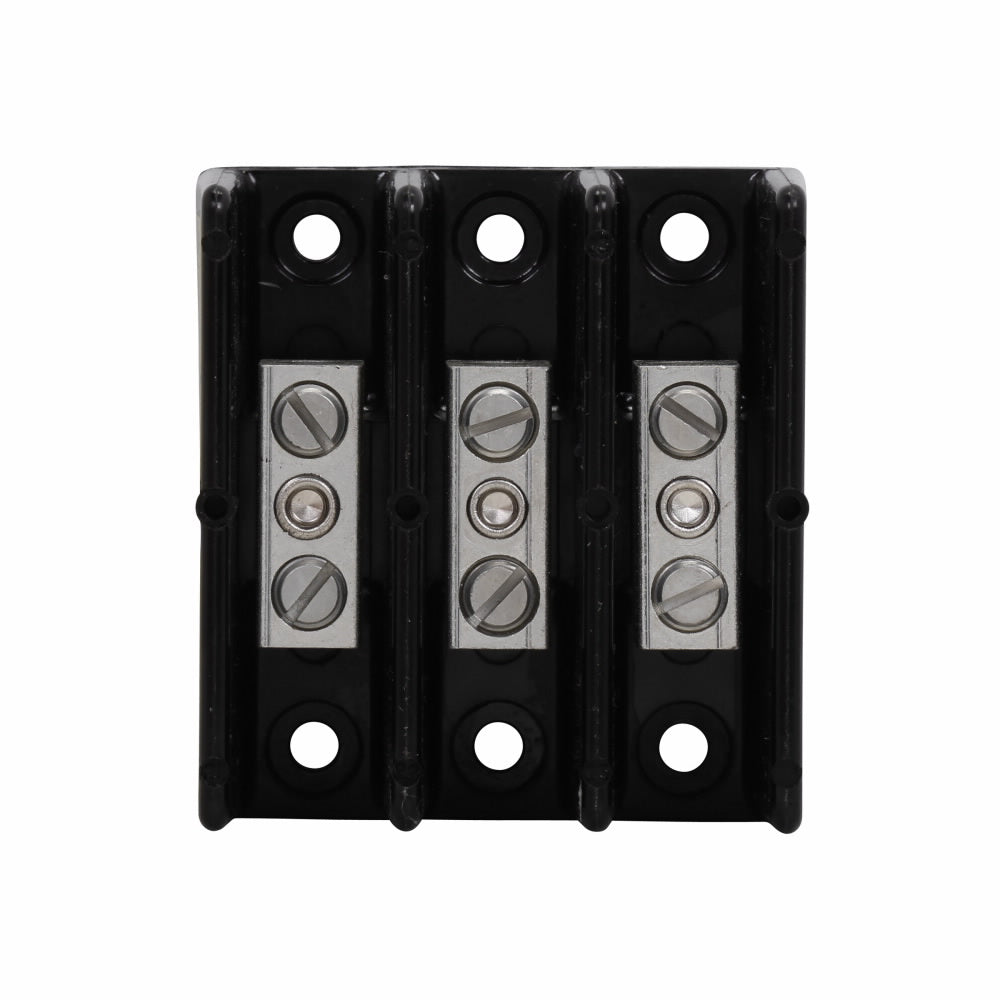

Eaton 16200-3 BUS POWER DIST BLOCK

Product Description

The Eaton 16200-3 BUS POWER DIST BLOCK is a power splicer block designed for use in various electrical applications. It supports voltages up to six hundred VAC/VDC and a maximum current of one hundred fifteen amps. This product is suitable for copper and aluminum connections, accommodating wire sizes from fourteen to two AWG for copper and eight to two AWG for aluminum.

• Supports both copper and aluminum line/load connections.
• Rated for short circuit currents up to ten kA.
• UL recognized for use in industrial control panels.

Product Highlights

This power distribution block offers flexibility in wiring and load management, ideal for electrical assemblies and panel installations.

Product Information

Standard Information

• Brand: Eaton
• Series: 162

Technical Specifications

• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 115 A
• Number of Poles: 3
• Short Circuit Current Rating: 10 kA
• Material: Thermoplastic
• Dimensions: 2.7 in L x 2.88 in W x 1.75 in H
• Primary Connections per Pole: 1
• Secondary Connections per Pole: 1
• Application: Power Distribution, Electrical Assemblies, Panels and EOEMs Applications
• Standards/Approvals: CE Certified, CSA File No. 53787, RoHS Compliant, UL 1059/508A File No. E221592 Guide XCFR2, UL 94 V-0 Flammability Rating
