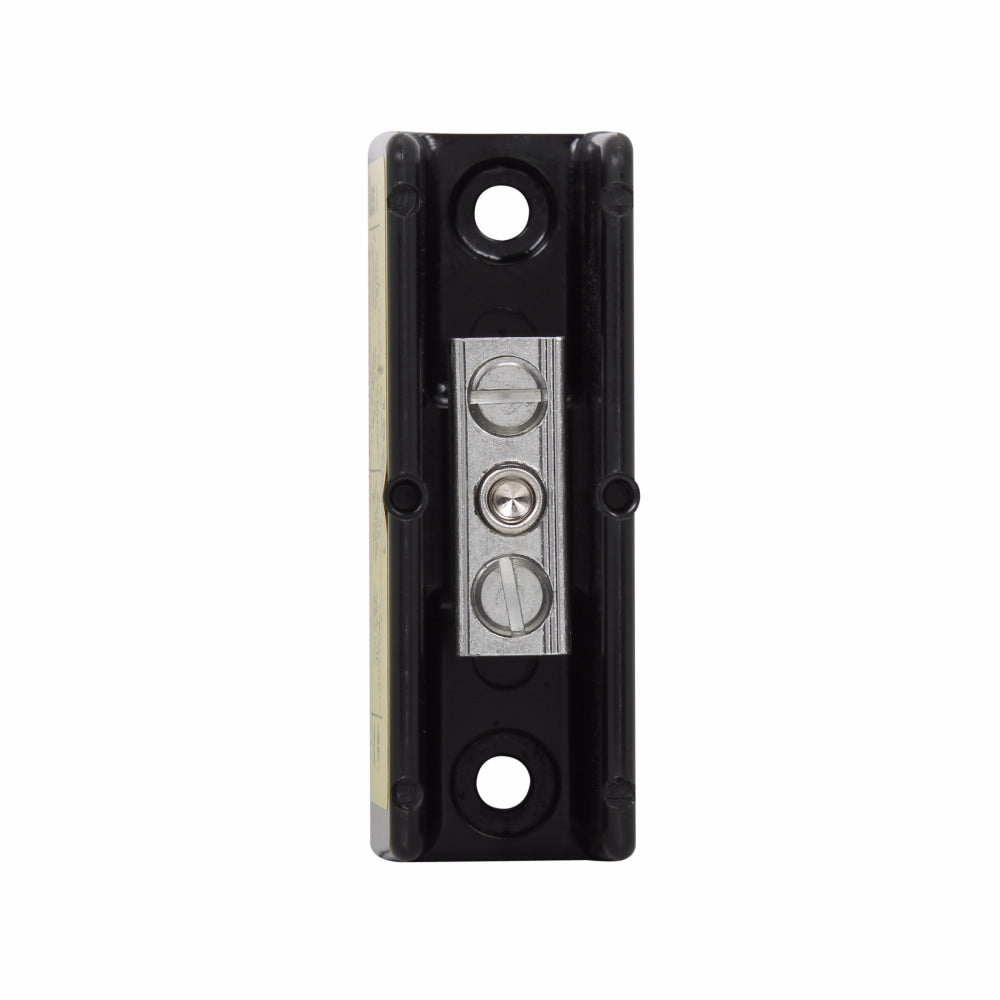

Eaton 16200-1 BUS POWER BLOCK (1) 600 VAC/VDC 115 A

Product Description

The Eaton 16200-1 BUS POWER BLOCK is a molded power splicer block suitable for various electrical applications. This device operates at 600 volts AC and DC with a maximum current of one hundred fifteen amps. It is designed with one pole and features primary and secondary connections through studs, accommodating wire sizes from fourteen to two AWG for copper and eight to two AWG for aluminum.

• Rated for use in dual wire port applications
• 10 kA short circuit current rating
• Constructed from aluminum and thermoplastic materials

Product Highlights

This power block enhances distribution efficiency and supports multiple connections within electrical panels and assemblies.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171273485

Technical Specifications

• Amperage Rating: 115 A
• Voltage Rating: 600 VAC/VDC
• Number of Poles: 1
• Dimensions: 1.07 inches L x 2.88 inches W x 1.75 inches H
• Series: 162
• Material: Aluminum/Thermoplastic
• Finish: Tin Plated
• Short Circuit Current Rating: 10 kA
