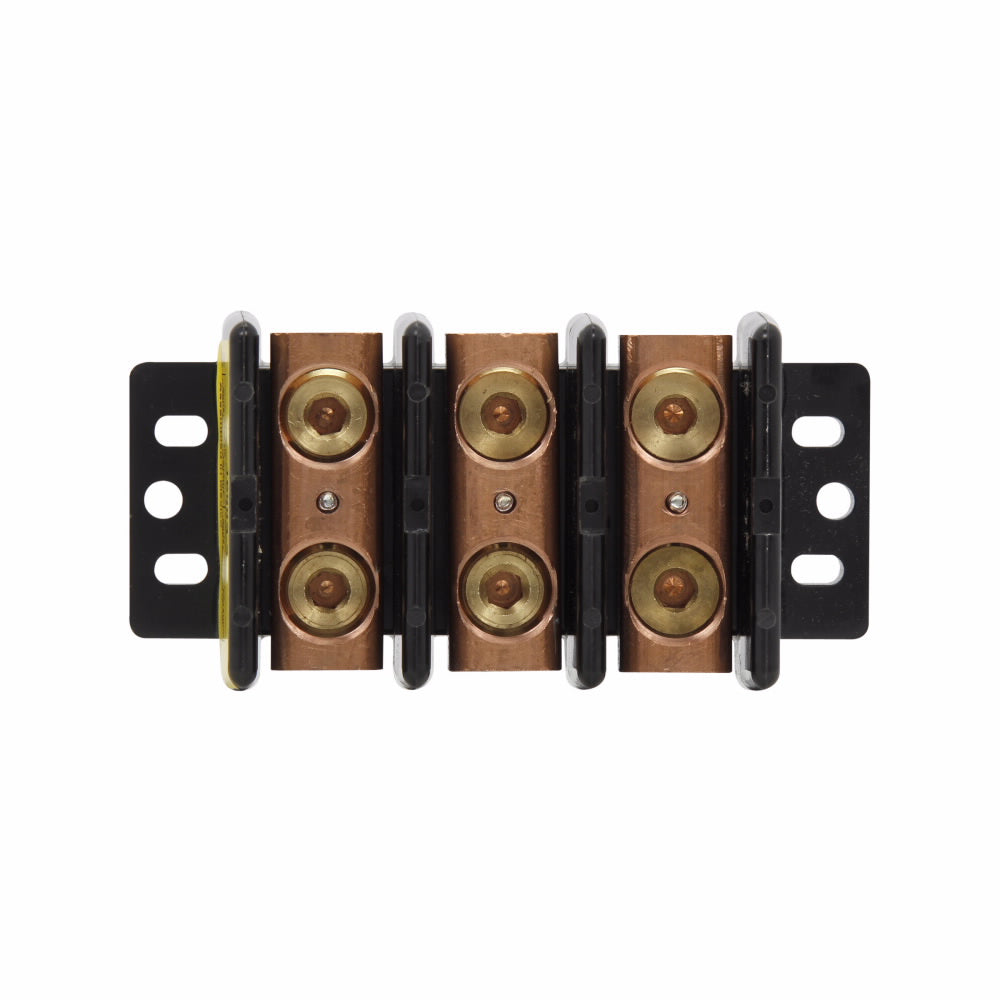

Eaton 16003-3 BUSS POWER TERM BLOCK 600 VAC/VDC (1)

Product Description

Bussmann Power Splicer Block, Series: 16003, MPN: 16003-3, is designed for power distribution applications. This splicer block operates at 600 VAC/VDC and has a maximum rating of 255 A. It features three poles and accommodates wire sizes from six AWG to 250 kcmil copper. The thermoplastic construction ensures durability, and it is built to handle short circuit currents of up to ten kA. The dimensions are five point thirty-seven inches in length, two point eight inches in width, and two point twelve inches in height.

• Rated for dual wire port applications
• Suitable for conductor stranding with ferrule applications
• Includes primary and secondary screw connections

Product Highlights

This product supports various applications in electrical assemblies and panels. Its molded thermoplastic base and tin plated aluminum connector offer robust electrical connections.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171273483

Technical Specifications

• Amperage Rating: 255 A
• Application: Power Distribution
• Dimensions: 5.37 in L x 2.8 in W x 2.12 in H
• Material: Thermoplastic
• Number of Poles: 3
• Voltage Rating: 600 VAC/VDC
• Short Circuit Current Rating: 10 kA
• Standards/Approvals: CE Certified, CSA File No. 15364, RoHS Compliant
