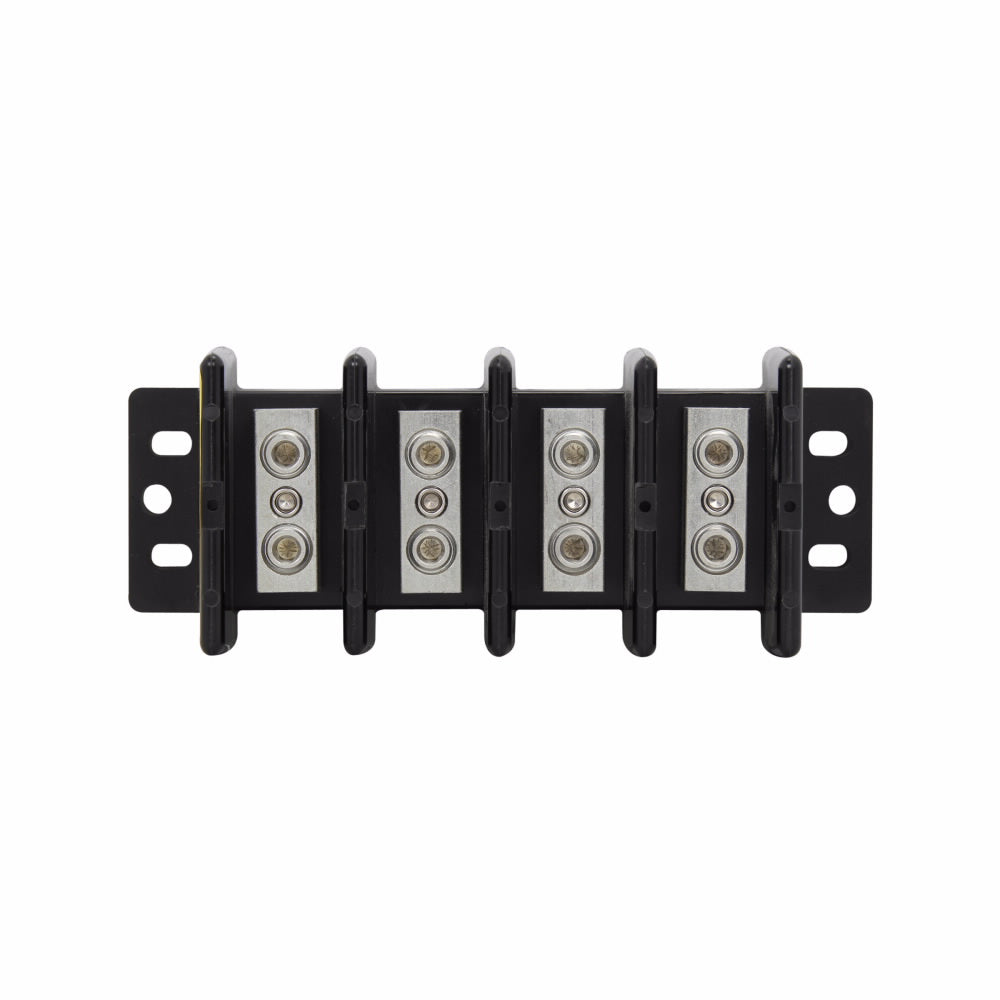

Eaton 16000-4 BUS POWER TERMINAL BLOCK 600 VAC/VDC 175 A 4 Poles 8 to 2/0 AWG Wire

Product Description

The Eaton 16000-4 Bus Power Terminal Block is designed for efficient power distribution in various electrical assemblies and panels. This product operates at a voltage rating of six hundred volts AC/DC and has a current rating of one hundred seventy-five amps. It features four poles with primary and secondary connections for various wire sizes, ranging from eight to two/zero American Wire Gauge (AWG).

• Electrical rating: 600 VAC/VDC
• Current capacity: 175 A
• Number of poles: 4

Product Highlights

This terminal block is ideal for industrial control panels and provides flexibility in wiring configurations. It is UL recognized and meets strict safety standards. The thermoplastic construction ensures durability and reliability in demanding applications.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: 16000-4

Technical Specifications

• Amperage Rating: 175 A
• Application: Power distribution, electrical assemblies
• Color: Black
• Dimensions: 6.62 inches L x 2.8 inches W x 2.12 inches H
• Material: Thermoplastic
• Number of Poles: 4
• Primary Connections Pole: 1
• Secondary Connection Pole: 1
• Short Circuit Current Rating: 10 kA
• Voltage Rating: 600 VAC/VDC
• Standards/Approvals: CE Certified, CSA File No. 15364, RoHS Compliant, UL 1059 File No. E221592
