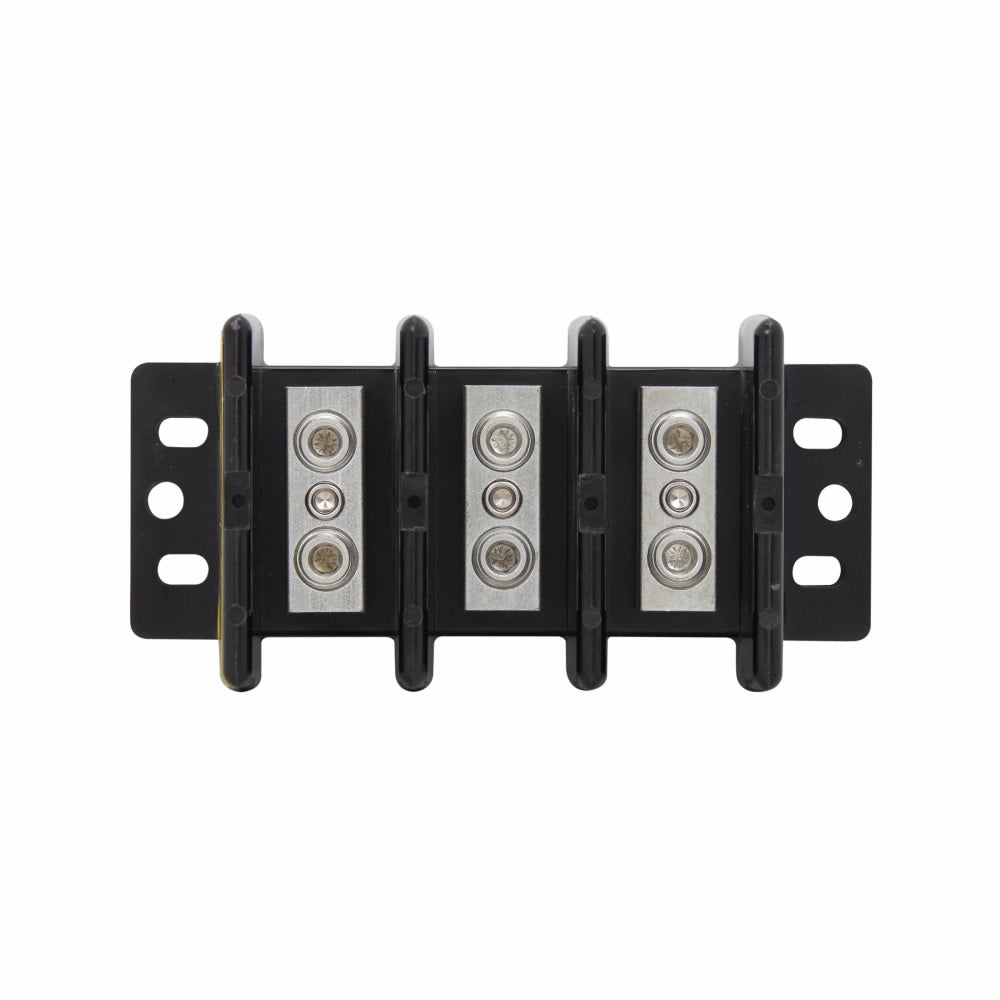

Eaton 16000-3 BUS POWER TERMINAL BLOCK (1)

Product Description

Eaton 16000-3 BUS POWER TERMINAL BLOCK is designed for power distribution applications. This unit is rated for 600 volts alternating current or direct current and can handle a maximum current of 175 amperes across three poles. It accommodates wire sizes ranging from eight AWG to two zero AWG. The thermoplastic construction ensures durability, while the compact dimensions make it easy to install.

• Rated for dual wire port application
• Designed for easy installation with screw connections
• Suitable for various electrical assemblies and panels

Product Highlights

The Eaton 16000-3 Power Splicer Block is a reliable solution for electrical connections in industrial settings. Its robust design allows for safe and efficient power distribution.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171273482

Technical Specifications

• Amperage Rating: 175 A
• Application: Power Distribution, Electrical Assemblies, Panels and EOEM Applications
• Color: Black
• Dimensions: 5.37 inches L x 2.8 inches W x 2.12 inches H
• Manufacturer Part Number: 16000-3
• Material: Thermoplastic
• Number of Poles: 3
• Primary Connections Pole: (1) Screw
• Secondary Connection Pole: (1) Screw
• Series: 16000
• Short Circuit Current Rating: 10 kA
• Standards/Approvals: CE Certified, CSA File No. 15364, RoHS Compliant, UL 1059 File No. E221592 Guide XCFR2
• Voltage Rating: 600 VAC/VDC
