Eaton 15W47 EWD 15W47 Conn WT 15A 125V 2P3W Str

Product Description

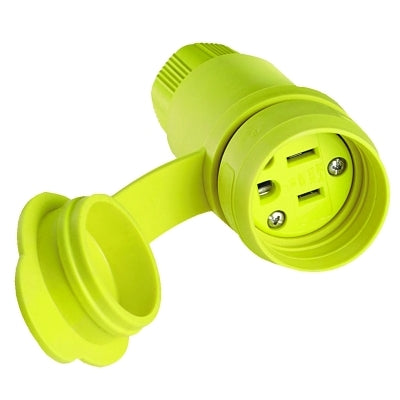

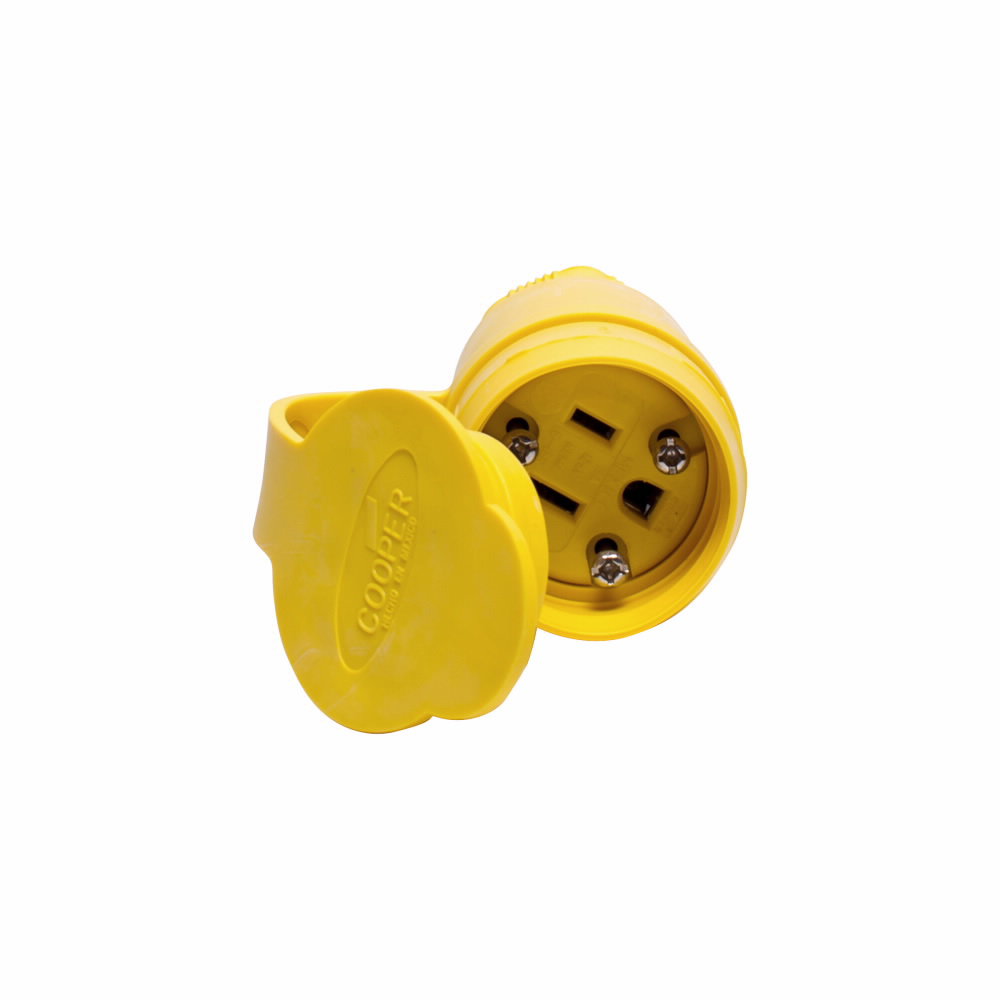

The Eaton 15W47 is a watertight straight blade connector designed for industrial use. This connector supports a maximum of fifteen amps and operates at one hundred twenty-five volts. It features a robust thermoplastic construction which ensures durability in harsh environments.

• Rated for industrial applications.
• Compatible with wire sizes from eighteen to ten AWG.
• Includes a watertight seal for added protection.

Product Highlights

The Eaton 15W47 connector is suitable for various wiring needs and can handle three wires with two poles.

Product Information

Standard Information

• Brand: Eaton
• Model Number: 15W47

Technical Specifications

• Weight: 0.34 lb
• Length: 1.69 inches
• Width: 1.69 inches
• Height: 2.78 inches
• Voltage: 125 Volt
• Amperage: 15 Amp
• Material: Thermoplastic
• Temperature Rating: -40 to 75 C
• Wire Size: 18-10 AWG
• Connection Type: Screw Terminal
• Number of Wires: 3 Wire
• Number of Poles: 2 Pole
• Shell Material: Santoprene Thermoplastic Elastomer
