Product Description

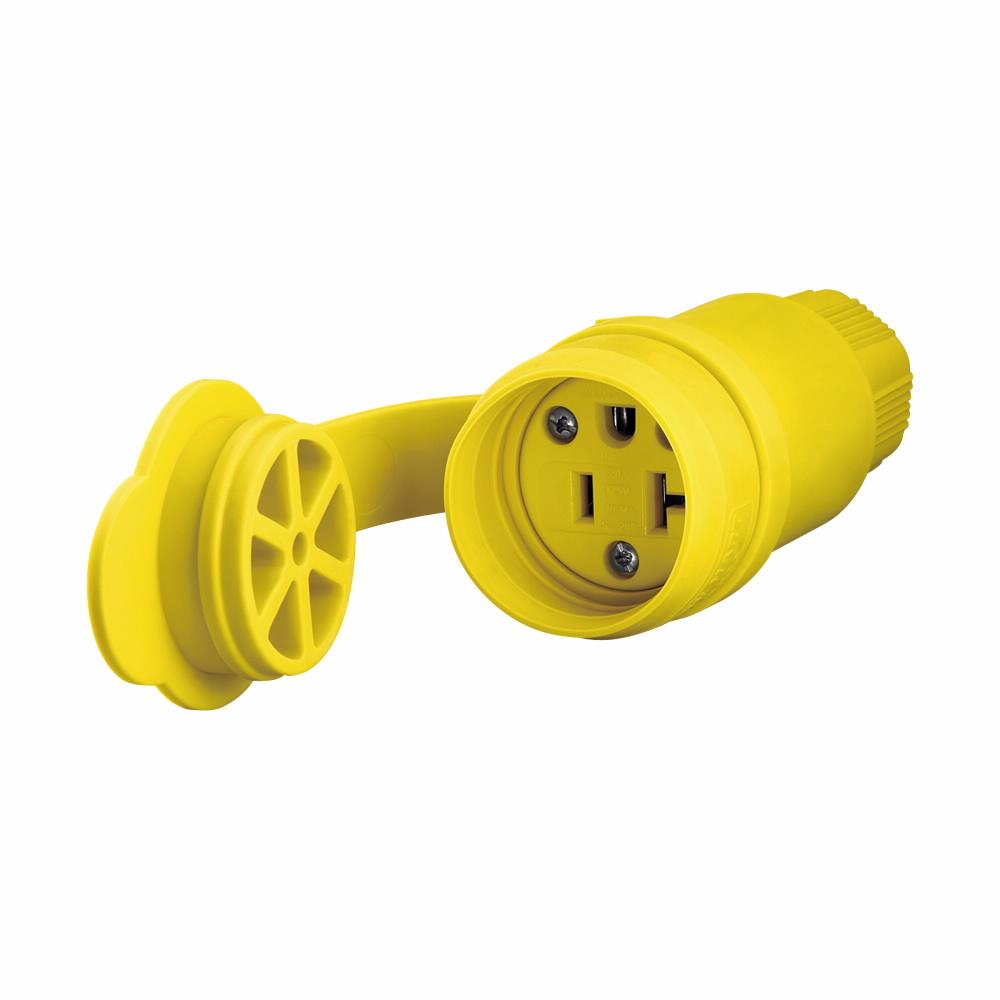

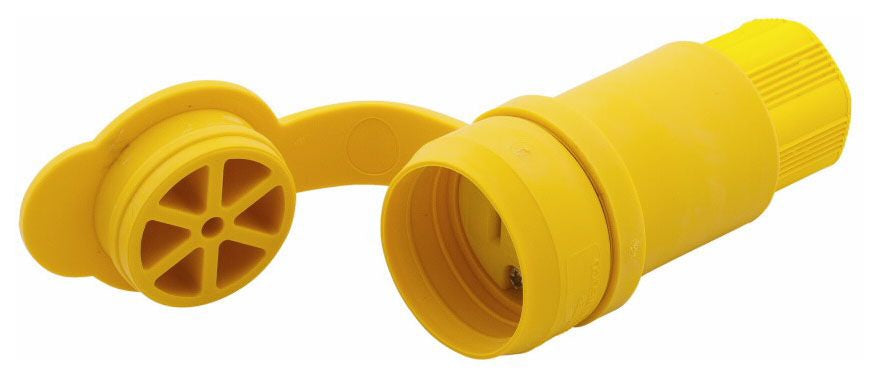

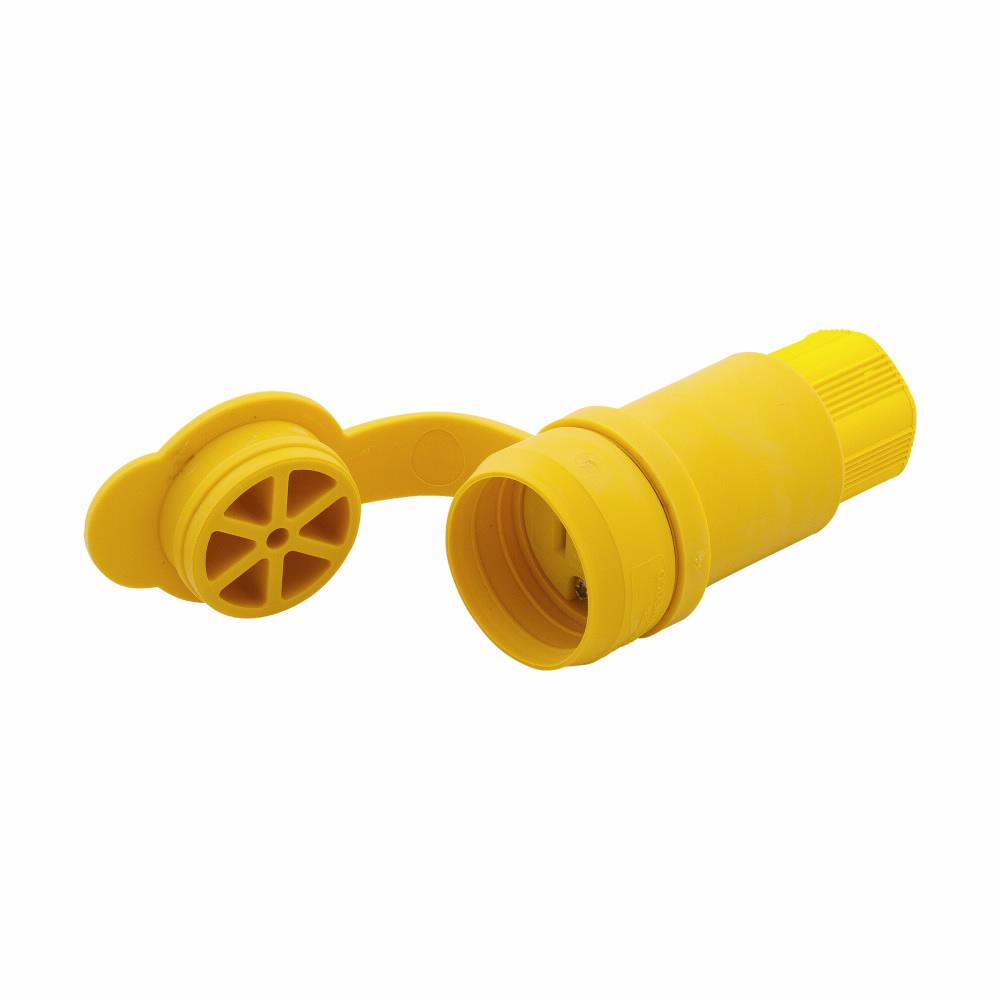

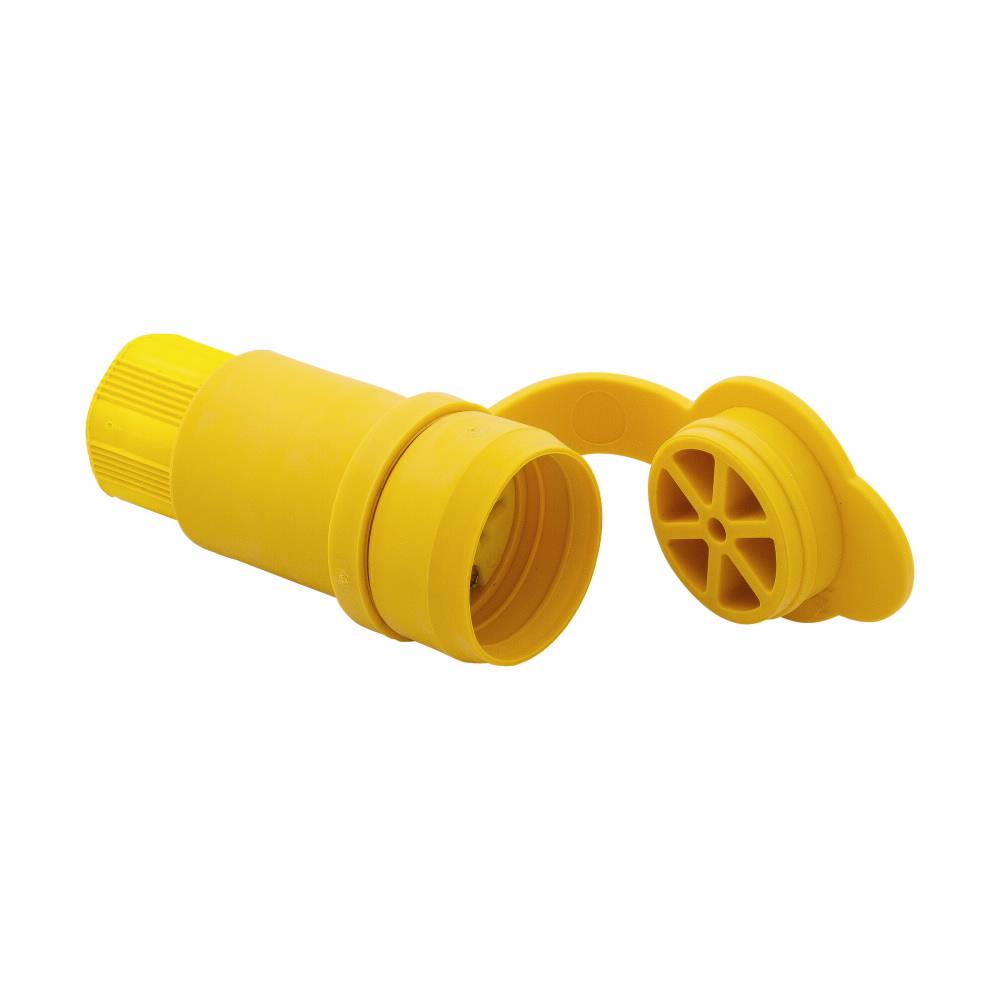

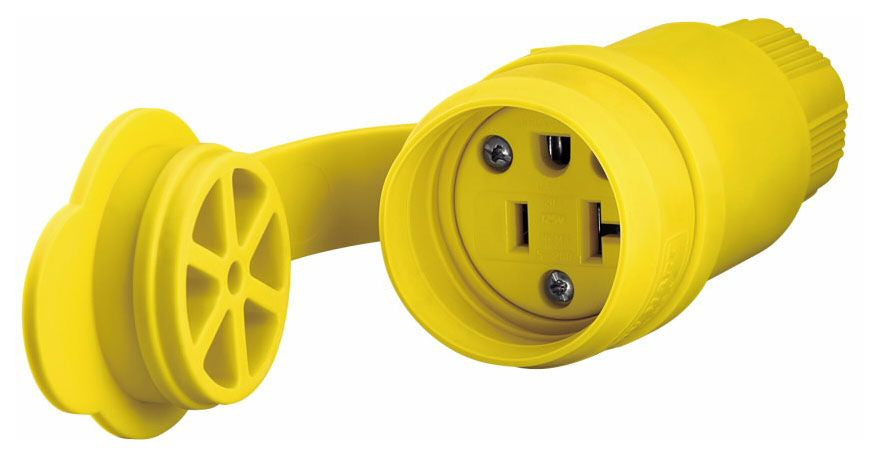

The EATON 15W33 Arrow Hart watertight straight blade connector accepts #18-10 AWG wire and is rated for 20A at 125V. This industrial-grade connector features back wiring and is constructed with nickel-plated brass and Santoprene thermoplastic elastomer. It is IP67 rated and suitable for two-pole, three-wire grounding applications with a screw connection.
- Watertight construction for use in damp or wet environments
- Nickel-plated brass contacts for corrosion resistance
- Suitable for industrial applications
Product Highlights
The EATON 15W33 is a watertight, straight blade connector designed for industrial use, ensuring reliable and safe connections in demanding environments.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: 15W33
-
Country of Origin: MEX
Technical Specifications
-
Catalog Number: 15W33
-
NEMA: 5-20P
-
Type: Grounding
-
Brand: Eaton Arrow Hart
-
Width: 1.81 in
-
Height: 2.56 in
-
Length: 1.81 Inch
-
Voltage Rating: 125 VAC
-
Amperage Rating: 20 Ampere
-
Diameter: 0.3 - 0.65 Inch
-
Material: Thermoplastic
-
Sub Brand: Eaton Wiring Devices
-
Wire Size: 18-10 AWG
-
Cord Range: 0.30 - 0.65 in
-
Conductor Size: 14-10 AWG
-
Connection Type: Screw
-
Number of Poles: 2 Pole
-
Number of Wires: 3 Wire
-
Environmental Conditions: -40 To 75 C
-
Grade: Industrial
-
Temperature Rating: -40 to 75 deg C
-
Terminal Type: Screw
-
Enclosure Type: NEMA 4/4X/6/6P, IP67
-
ROHS Compliant: True
-
NAFTA Compliant: True
-
Approval: UL (Canada and US), UL 498, CUL, CSA C22.2
-
Flammability Rating: UL 94 V-2
-
Wiring Type: Back
-
Input Voltage: 120 V
-
MPN: 15W33
-
Country of Origin: United States
-
Environmental resistance: IP67
-
Contact material: Nickel plated brass
-
Design type: Straight blade
-
Packaging type: Bulk
-
Application: Industrial
-
Device grade: Watertight special use
-
Style type: Straight body
