Product Description

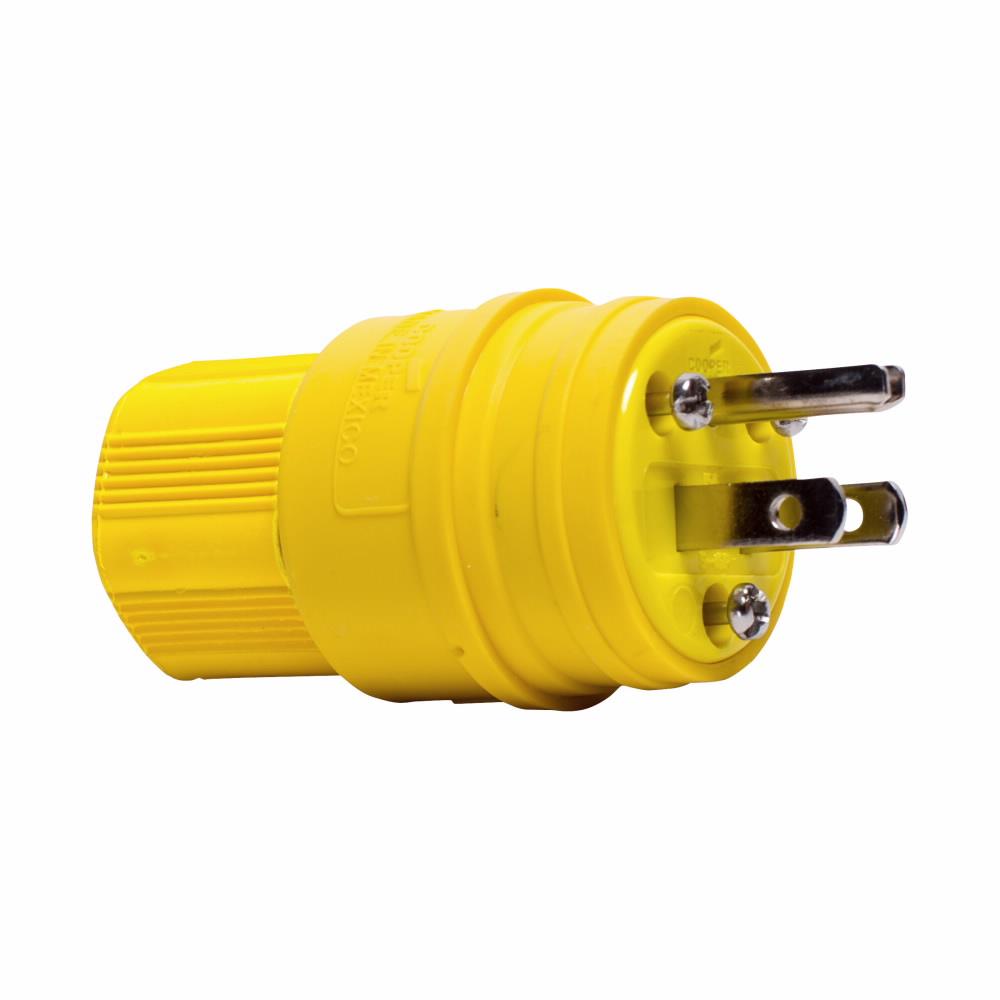

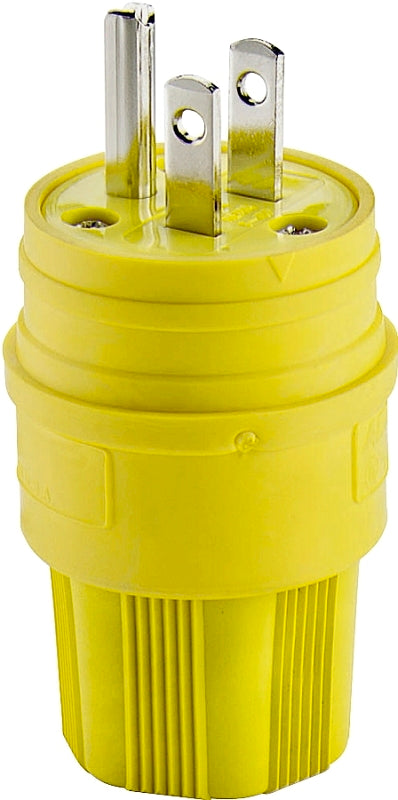

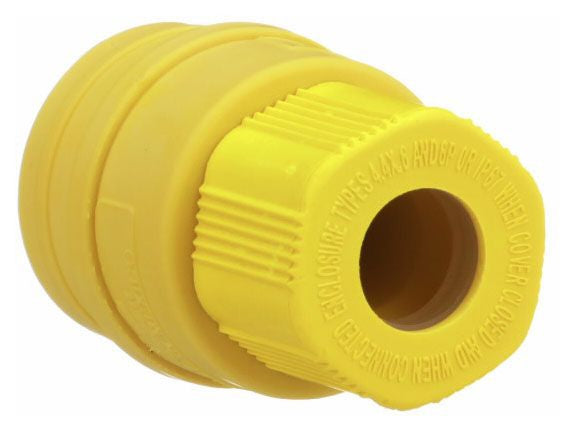

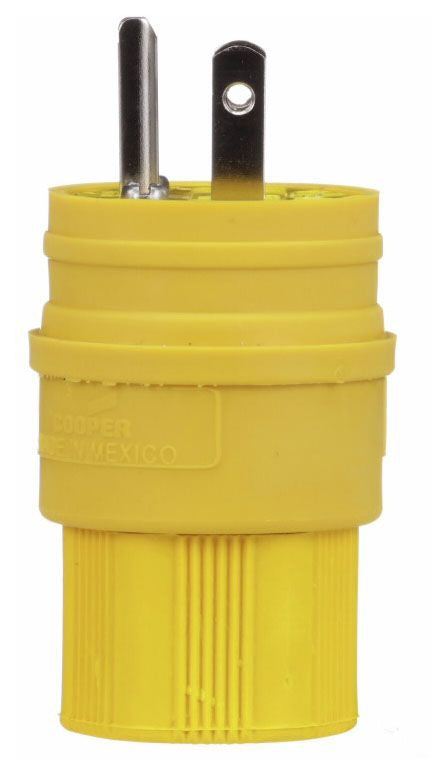

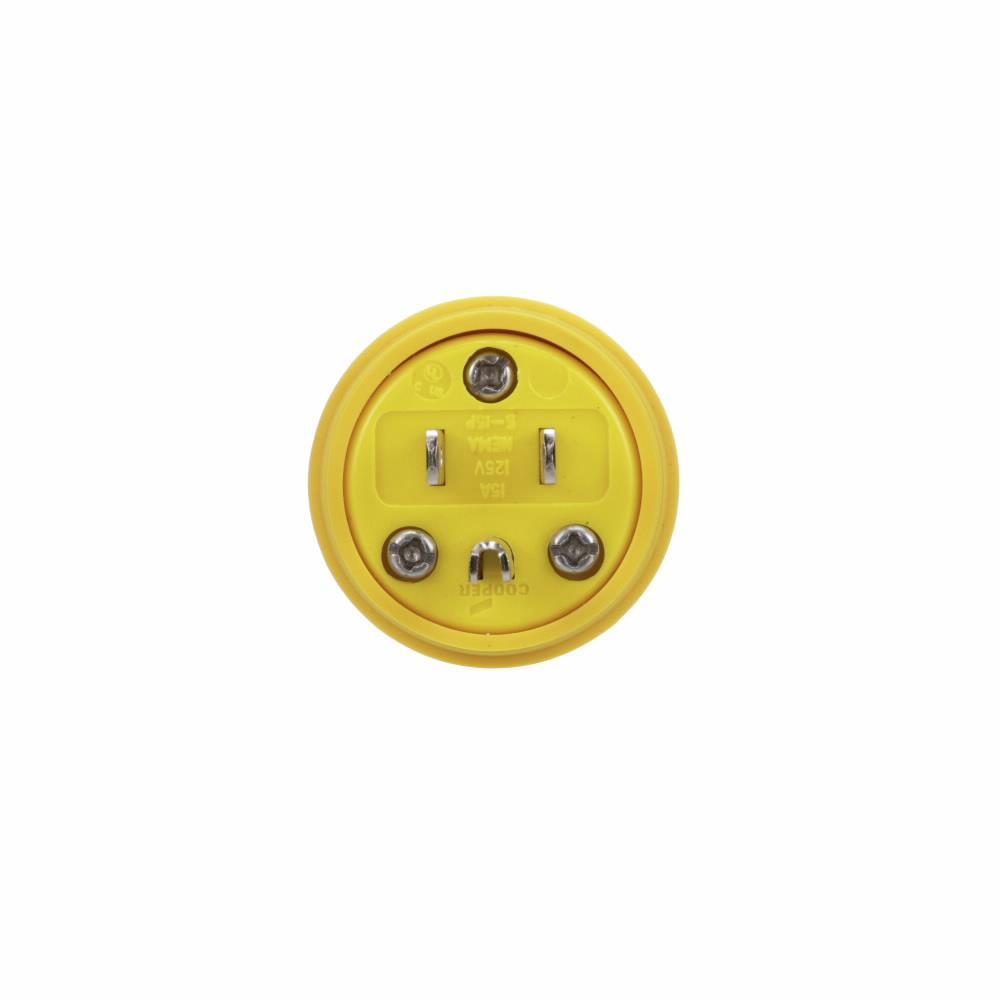

The EATON 14W47 is an industrial specification grade straight blade plug with Ultra Grip™ and Safety Grip™ NEMA 5-15, 2-pole 3-wire design. These devices install quickly, providing reliable performance in tough industrial environments. It is a grounding watertight plug with a voltage rating of 125 VAC and a current rating of 15 A. Designed for cord diameters of 0.3 to 0.65 inches.
- Santoprene™ elastomeric exterior provides superior performance in complex environments.
- Nickel plated blades, contacts and terminal screws provide corrosion-resistance.
- Glass reinforced nylon interior provides strength and durability.
Product Highlights
This industrial-grade, watertight straight blade plug offers reliable performance with corrosion-resistant components and a durable design for demanding environments.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: 14W47
-
Country of Origin: MEX
Technical Specifications
-
Cord Diameter: 0.3 to 0.65 in
-
Grade: Industrial
-
Material: Santoprene™ TPE/Thermoplastic
-
NEMA Rating: NEMA 5-15P
-
Temperature Rating: -40 to 75 deg C
-
Terminal Type: Threaded
-
Type: Grounding Watertight
-
Voltage Rating: 125 VAC
-
Amperage Rating: 15 A
-
Number of Poles: 2
-
Number of Wires: 3
-
Product Length/Depth: 1.81 in
-
Product Height: 3.44 in
-
Product Width: 1.81 in
-
Product Weight: 0.25 lb
-
Certifications: cULus Listed
-
Product Type: Watertight
-
NEMA configuration: 5-15P
-
Receptacle type: Two-pole, three-wire, grounding
-
Torque rating: 14 lbf-inch
-
Environmental conditions: Damp/wet
-
Environmental resistance: IP67
-
Allowable wire size: #18-10 AWG
-
Connection type: Screw
-
Wiring method: Back wire
-
Contact material: Nickel plated brass
-
Design type: Straight blade
-
Packaging type: Bulk
-
Application: Industrial
-
Cord range: 0.30-0.65" in diameter
-
Device grade: Watertight special use
-
Face/body material: Santoprene thermoplastic elastomer
-
Style type: Straight body
-
Voltage: 120 Volts
-
Connector Type: Straight Blade
-
Number Of Wires: 3
-
Product Grade: Industrial
-
Amperage: 15 Amps
-
MPN: 14w47-K, 14w47, 14w47-f-lw
