Product Description

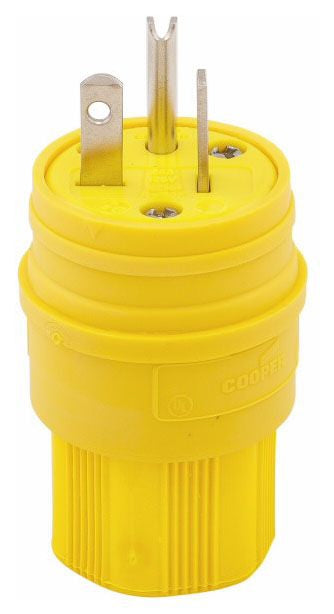

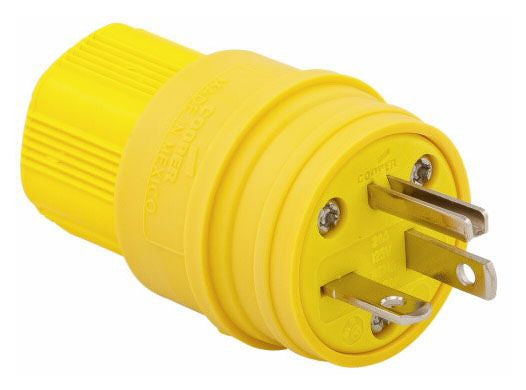

The EATON 14W33 is a straight blade plug with a polarized configuration. Constructed with watertight features, this plug has a 5-20P configuration and is rated for 125 VAC at 20 Ampere. It features 2 poles and 3 wires with a grounding type. The cord size ranges from 0.3 to 0.65 inches and is made of nylon material.
- Watertight construction
- Rated for 125 VAC at 20 Ampere
- Compliant with UL (Canada and US), ROHS, and NAFTA standards
Product Highlights
This straight blade plug is ideal for industrial applications requiring watertight protection in harsh environments.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: 14W33
-
Country of Origin: MEX
Technical Specifications
-
Voltage Rating: 125 VAC
-
Current Rating: 20 Ampere
-
Number of Poles: 2
-
Number of Wires: 3
-
Ground Type: Grounding
-
Cord Size: 0.3 to 0.65 Inch
-
Material: Thermoplastic
-
Grade: Industrial, Specification
-
Approval: UL (Canada and US)
-
ROHS Compliant: True
-
NAFTA Compliant: True
-
AWG: 18-10
-
Wiring: Back Wire
-
NEMA Rating: 5-20P
-
Amperage Rating: 20A
-
Certifications: cULus Listed
-
Product Length/Depth: 1.81 in
-
Product Height: 3.44 in
-
Product Width: 1.81 in
-
Number of positions: 3
-
Receptacle type: Two-pole, three-wire, grounding
-
Torque rating: 14 lbf-inch
-
Environmental conditions: Damp/wet
-
Environmental resistance: IP67
-
Allowable wire size: #18-10 AWG
-
Connection type: Screw
-
Wiring method: Back wire
-
Contact material: Nickel plated brass
-
Design type: Straight blade
-
Packaging type: Bulk
-
Application: Industrial
-
Cord range: 0.30-0.65" in diameter
-
Device grade: Watertight special use
-
Face/body material: Santoprene thermoplastic elastomer
-
Style type: Straight body
-
Type: Complex environment
-
Connector Style: NEMA 5-20P
-
Connector Type: Plug, Male Blades
-
Mounting Type: Free Hanging (In-Line)
-
Termination: Screw
-
Material Flammability Rating: UL94 V-2
