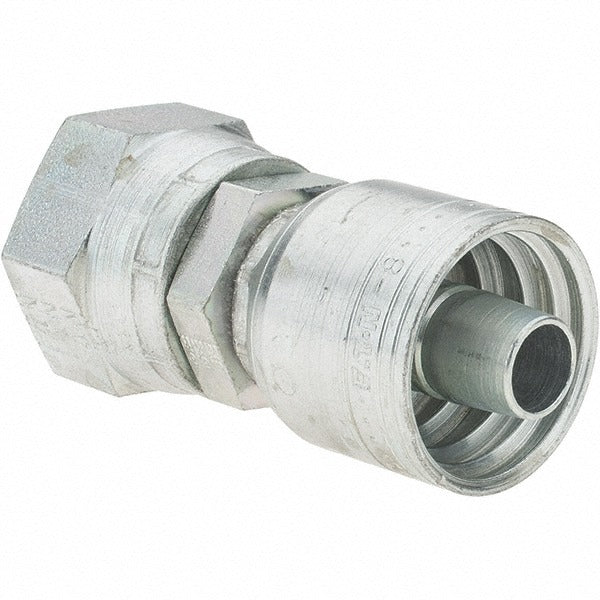

Eaton 14792 Hydraulic Hose Swivel Adapter 8mm Jic Steel

Product Description

The EATON 14792 is a hydraulic hose swivel adapter designed for use in high-pressure hydraulic systems where a flexible, rotatable connection is required between hose and fitting. Built from steel and rated for JIC (Joint Industry Council) thread configurations, this adapter features a 1-1/16-12 thread size and is compatible with 1/2 inch hose diameter. The swivel design allows the fitting to rotate during installation, reducing hose twist and stress at the connection point. It belongs to the EATON TTC series and is intended for installation by hydraulic technicians and fluid power specialists working on mobile or stationary hydraulic circuits.

This adapter is suited for use in industrial, agricultural, construction, and mobile hydraulic applications where JIC-style fittings are specified. The 1-1/16-12 thread configuration is a common size found in mid-range hydraulic plumbing assemblies. It is typically installed where hose assemblies connect to ports, manifolds, or other hydraulic components requiring a secure, leak-resistant swivel joint. The steel construction makes it appropriate for systems handling hydraulic oil under pressure in demanding service environments.

Key Features

• Swivel adapter design reduces hose twist and strain during assembly
• JIC thread type for wide compatibility with standard hydraulic fittings
• 1-1/16-12 thread size suits mid-range hydraulic plumbing applications
• Compatible with 1/2 inch hose diameter
• Steel construction for durability in high-pressure hydraulic service
• Part of the EATON TTC series for consistent fitment standards

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies using 1/2 inch hose with JIC-style swivel adapter connections and a 1-1/16-12 thread size.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Always depressurize and de-energize the hydraulic system fully before removing or installing any fitting. Inspect mating threads and seating surfaces for damage before assembly. Do not overtighten swivel adapters, as this can damage the swivel seat and cause leaks.
