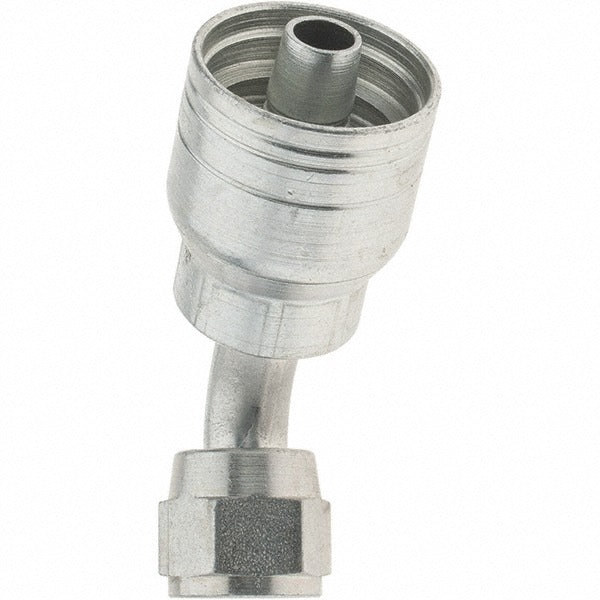

Eaton 14765 Female 37 Deg Swivel Elbow 3/8 in Jic Steel

Product Description

The EATON 14765 is a female 37-degree swivel elbow hydraulic hose fitting machined from steel for use in high-pressure fluid power systems. It connects a 3/8-inch hydraulic hose to a JIC (Joint Industry Council) 37-degree flare seat port using a 9/16-18 inch thread. The swivel design allows the elbow to rotate during installation, reducing torsional stress on the hose and making routing in tight spaces easier. This fitting belongs to EATON's TTC series and is installed by hydraulic system technicians in mobile equipment, industrial machinery, and fluid power applications.

This fitting is suited for hydraulic assemblies where a 90-degree directional change is required at the hose termination point. The 37-degree JIC flare interface provides a reliable metal-to-metal seal commonly specified in mobile hydraulic circuits, agricultural equipment, construction machinery, and industrial fluid power systems. The 9/16-18 thread size is a standard JIC dimension for 3/8-inch hose ID applications.

Key Features

• Female 37-degree swivel elbow configuration for flexible hose routing
• JIC (37-degree flare) seat provides a metal-to-metal seal without additional sealing compounds
• Steel construction for durability in high-pressure hydraulic service
• Swivel body reduces hose twist and simplifies assembly in confined installations
• 9/16-18 inch thread size matches standard JIC port sizing for 3/8-inch hose
• EATON TTC series for consistent dimensional and performance standards

Compatibility

Designed as an OEM-style replacement or new-assembly fitting for 3/8-inch hydraulic hose assemblies using JIC 37-degree flare connections with a 9/16-18 inch thread interface.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and bleed down the hydraulic system completely before removing or installing any fittings. Inspect the JIC flare seat and mating surface for nicks or scoring before assembly; damaged seating surfaces can cause leaks under pressure. Torque to the hose fitting manufacturer's recommended specification using a backup wrench to prevent twisting the hose.
