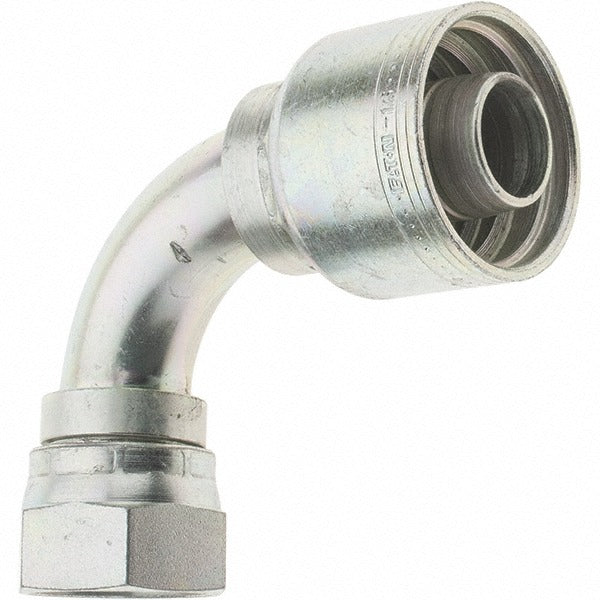

Eaton 14757 Female 37 Deg Swivel Elbow Hydraulic Fitting

Product Description

The EATON 14757 is a female 37-degree swivel elbow hydraulic hose fitting designed for high-pressure fluid conveyance systems. Built from steel to the JIC (Joint Industry Council) standard, this fitting connects a 1-inch hose to a 1-5/16-12 threaded port. The swivel design allows the elbow to rotate during installation, reducing hose twist and stress at the connection point. It is part of the EATON TTC series and is installed by hydraulic technicians, equipment mechanics, and fluid power specialists working on mobile and industrial hydraulic circuits.

This fitting is suited for use in hydraulic systems requiring a 37-degree flare seat connection with a swivel elbow configuration. The 1-5/16-12 thread size makes it compatible with standard SAE and JIC ported components found in construction equipment, agricultural machinery, industrial presses, and similar fluid power applications. The elbow orientation helps route hoses cleanly in tight or angled mounting environments where straight fittings are not practical.

Key Features

• Female 37-degree flare swivel elbow conforms to JIC fitting standards
• 1-inch hose size accommodates high-flow hydraulic lines
• 1-5/16-12 thread size for connection to standard SAE JIC ports
• Steel construction provides strength and durability in high-pressure hydraulic circuits
• Swivel design reduces hose twist and simplifies routing during installation
• TTC series designation for consistent dimensional and performance standards

Compatibility

Designed as an OEM-style JIC hydraulic hose fitting for use with 1-inch hydraulic hose and components featuring a 1-5/16-12 female 37-degree flare swivel elbow port.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the flare seat and thread for damage before assembly, and use appropriate torque wrenches rated for hydraulic fittings. Follow applicable industry standards and equipment OEM service procedures for torque and assembly specifications.
