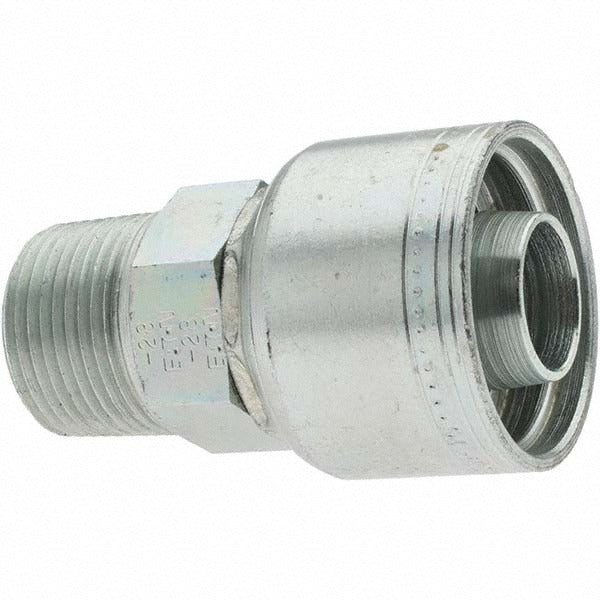

Eaton 14716 Male Hose End Fitting 1 Inch Npt Steel

Product Description

The EATON 14716 is a male hose end fitting designed for hydraulic hose assemblies requiring a National Pipe Thread connection. Constructed from steel, this fitting belongs to the TTC series and accommodates a 1-inch hose diameter with a 1-11/2 NPT thread size. The body diameter measures 1-3/8 inches. It is used to terminate hydraulic hoses and connect them to ports, valves, manifolds, and hydraulic components in fluid power systems. Installation is typically performed by hydraulic system technicians, millwrights, or industrial mechanics working on mobile or stationary hydraulic equipment.

This fitting is suited for hydraulic hose fabrication and repair applications across industrial, agricultural, and mobile equipment environments. The NPT thread form makes it compatible with standard pipe-threaded ports commonly found in hydraulic power units, cylinders, and control valves. The 16 mm hose size designation and 1-inch hose diameter fit within mid-range hydraulic hose assemblies operating under moderate to high pressure. Sold in a package quantity of two.

Key Features

• Steel construction for durability in hydraulic fluid service
• Male NPT thread for connection to standard pipe-threaded hydraulic ports
• 1-inch hose diameter accommodates mid-range hydraulic hose assemblies
• 1-3/8 inch body diameter for secure hose retention
• TTC series fitting for consistent dimensional standards
• Package quantity of two per order

Compatibility

Designed as an OEM-style hydraulic hose end fitting for use with 1-inch hydraulic hoses requiring a 1-11/2 NPT male thread termination in fluid power systems.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic. Depressurize and bleed the hydraulic system fully before removing or installing any hose end fitting. Apply thread sealant appropriate for hydraulic service to NPT threads and tighten to the fitting manufacturer and system designer specifications. Inspect the hose and fitting assembly for leaks before returning the system to full operating pressure.
